3.1. CS-E15DKDW CU-E15DKD

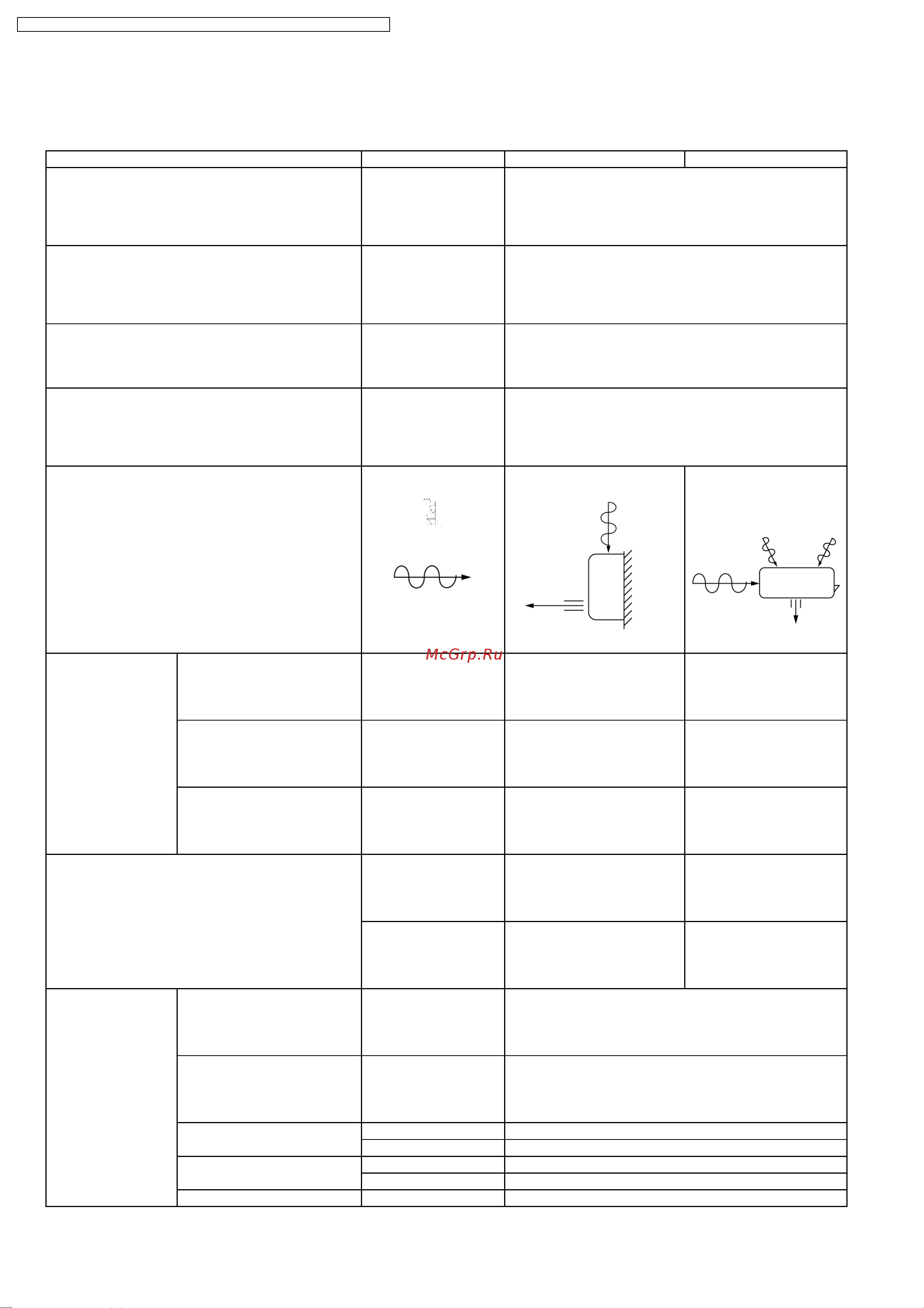

3 Product Specifications
Unit CS-E15DKDW CU-E15DKD
Cooling Capacity kW
kcal/h
BTU/h
4.40 (0.90 - 5.00)
3,780 (770 - 4,300)
15,000 (3,070 - 17,100)
Heating Capacity kW
kcal/h
BTU/h
5.50 (0.90 - 7.10)
4,730 (770 - 6,110)
18,800 (3,070 - 24,200)
Moisture Removal l/h
Pint/h
2.4
(5.1)
Power Source (Phase, Voltage, Cycle) ø
V
Hz
Single
220 - 230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) Cooling; 7.4 (260) —
Heating; 8.8 (310)
Me m
3
/min (cfm) Cooling; 9.2 (320) —
Heating; 10.3 (360)
Hi m
3
/min (cfm) Cooling; 11.0 (390) Cooling; 48.5 (1,710)
Heating; 11.8 (420) Heating; 46.8 (1,650)
dB (A) Cooling; High 43, Low 32 Cooling; 46
Heating; High 43, Low 35 Heating; 46
Noise Level
Power level dB Cooling; High 54 Cooling; High 59
Heating; High 54 Heating; High 59
Electrical Data Input Power W Cooling; 1,370 (215 - 1,600)
Heating; 1,570 (245 - 2,250)
Running Current A Cooling; 6.5 - 6.3
Heating; 7.3 - 7.1
EER W/W Cooling; 3.21 (4.19 - 3.13)
BTU/hW Cooling; 10.9 (14.3 - 10.7)
COP W/W Heating; 3.50 (3.67 - 3.16)
BTU/hW Heating; 12.0 (12.5 - 10.8)
Starting Current A 7.3
6
CS-E15DKDW CU-E15DKD / CS-E18DKDW CU-E18DKD / CS-E21DKDS CU-E21DKD
