2.3.5 TV Connection

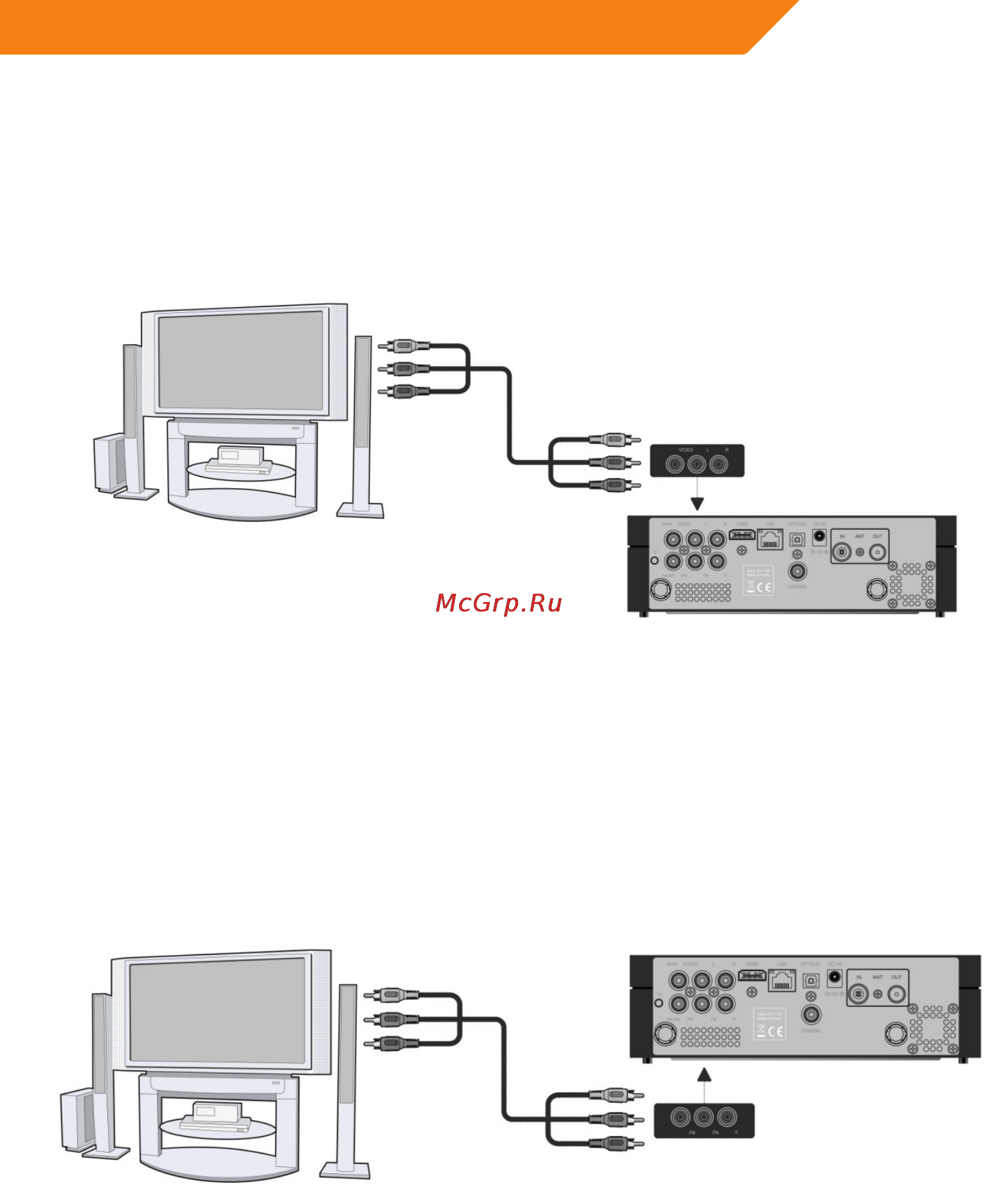

2.3.5.1 A/V OUT

(1) Refer to the picture and plug in the 3 colour connector to the player’s A/V OUT jack;

(2) Refer to the picture and plug in the 3 colour connector to the TV’s A/V IN jack.

In this way, you can enjoy the content in the player on TV or other display devices.

2.3.5.2 Y/Pb/Pr Component OUT

(1)RefertothepictureandplugintheconnectoroftheYUVcabletotheplayer’sY/

Pb/Prjack;

(2)Refertothepictureandpluginthe3colourconnectortotheTV’sY/Pb/Prjack.

AudioConnectionwhileusingY/Pb/PrVideoout:

First method: use the audio output from the A/V OUT jack;

Second method: use the audio output from the S/PDIF Coaxial or Optical jack.

Inthisway,youcanalsoenjoyvideos,music,andphotosintheplayeronTV.
