LG 21FG6RG-T9 [22/24] Connection of external equipment

Component in sockets (option)

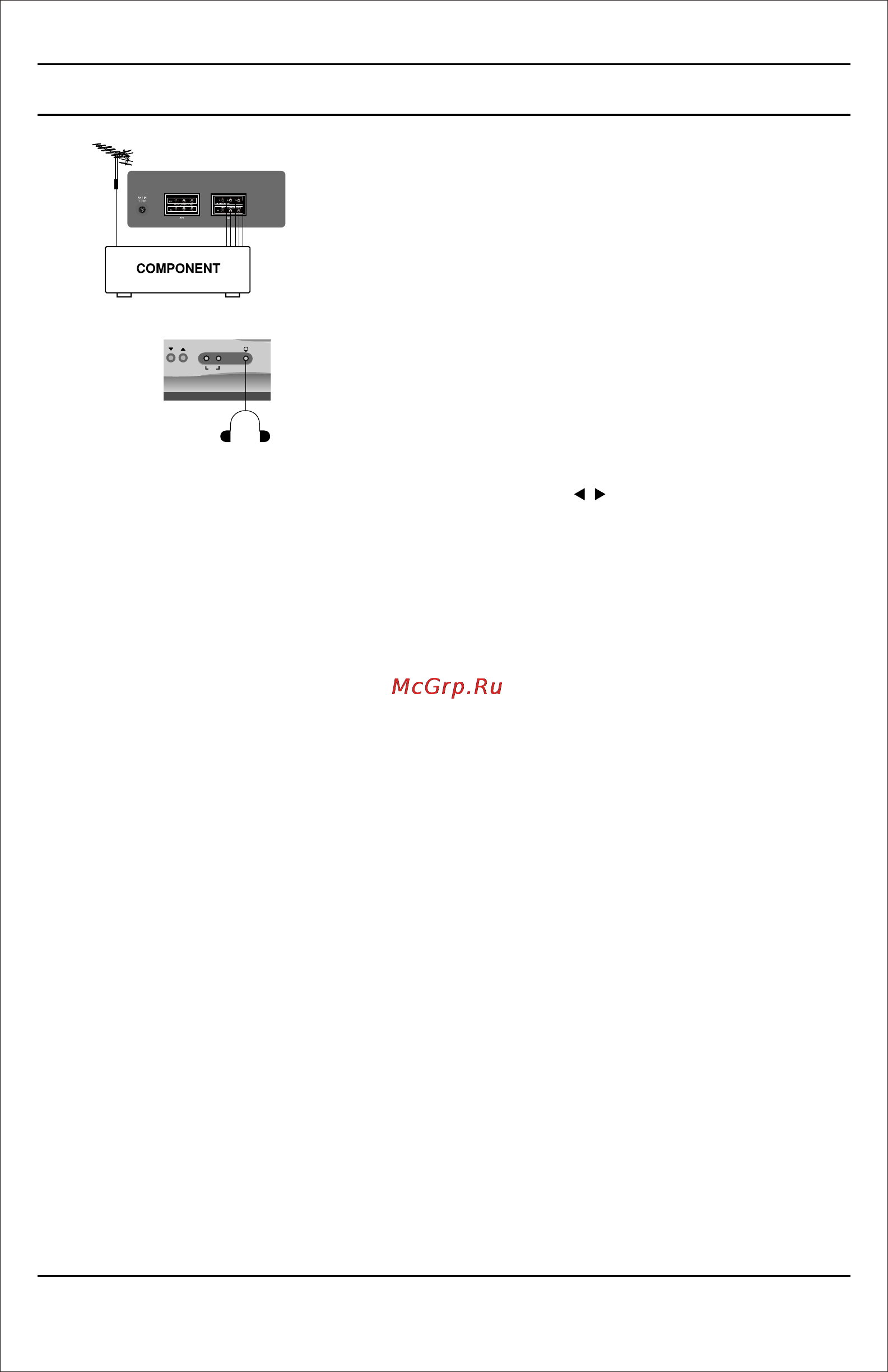

1. Connect the COMPONENT video output sockets (Y Cb Cr, Y Pb Pr

or Y B-YR-Y) of the COMPONENT (480i) to the COMPONENT

INPUT sockets ( Y PB PR ) on the set.

2. Connect the audio cable from the COMPONENT to AUDIO sockets

of COMPONENT INPUT.

3. Press the TV/AV button to select COMPONENT.

4. Press the PLAY button on the COMPONENT.

THE COMPONENT playback picture appears on the screen.

Headphone socket (option)

In some models which have a headphone socket can perform this

function.

Insert the headphone plug to the headphone socket of the set.

You can listen to the sound through the headphone. To adjust

the headphone volume, press the button.

If you press the MUTE button the sound from the headphone

and TV's speakers are switched Off.

Connection of external equipment

VIDEO AUDIO
