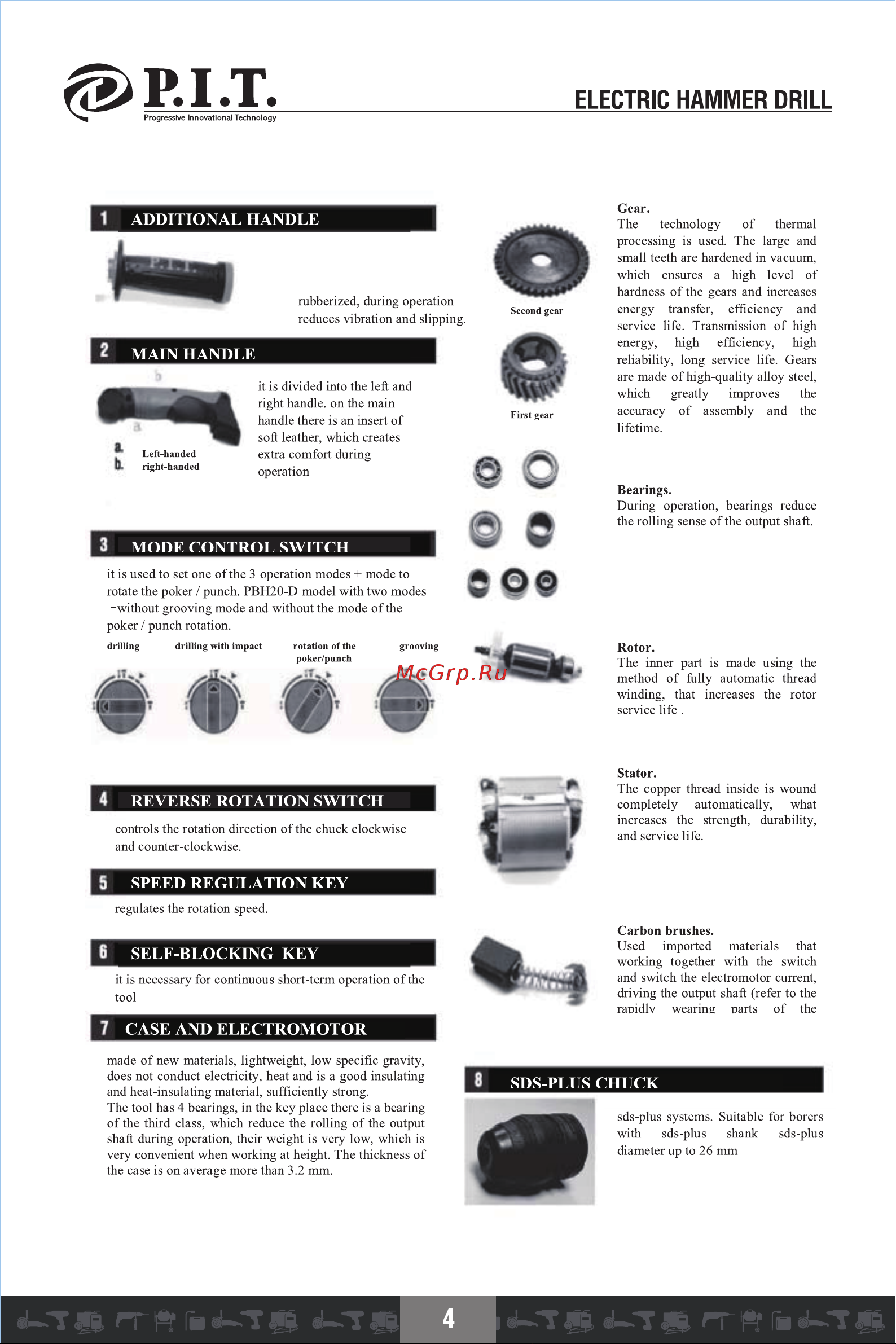

ELECTRIC HAMMER DRILL 1 ADDITIONAL HANDLE rubberized during operation reduces vibration and slipping I 2 MAIN HANDLE IL right handed it is divided into the left and right handle on the main handle there is an insert of soft leather which creates extra comfort during operation First gear Gear The technology of thermal processing is used The large and small teeth arc hardened in vacuum which ensures a high level of hardness of the gears and increases energy transfer efficiency and service life Transmission of high energy high efficiency high reliability long service life Gears are made of high quality alloy steel which greatly improves the accuracy of assembly and the lifetime Bearings During operation bearings reduce the rolling sense of the output shaft 3 MODE CONTROL SWITCH it is used to set one of the 3 operation modes mode to rotate the poker punch PBH20 D model with two modes without grooving mode and without the mode of the poker punch rotation Rotor The inner part is made using the method of fully automatic thread winding that increases the rotor service life Stator The copper thread inside is wound completely automatically what increases the strength durability and service life 4 REVERSE ROTATION SWITCH controls the rotation direction of the chuck clockwise and counter clockwise 5 SPEED REGULATION KEY regulates the rotation speed Carbon brushes Used imported materials that working together with the switch and switch the electromotor current driving the output shaft refer to the raoidlv wearing oarts of the 6 SELF BLOCKING KEY it is necessary for continuous short term operation of the tool 7 CASE AND ELECTROMOTOR made of new materials lightweight low specific gravity does not conduct electricity heat and is a good insulating and heat insulating material sufficiently strong The tool has 4 bearings in the key place there is a bearing of the third class which reduce the rolling of the output shaft during operation their weight is very low which is very convenient when working at height The thickness of the case is on average more than 3 2 mm в SDS PLUS CHUCK sds plus systems Suitable for borers with sds plus shank sds plus diameter up to 26 mm 4
