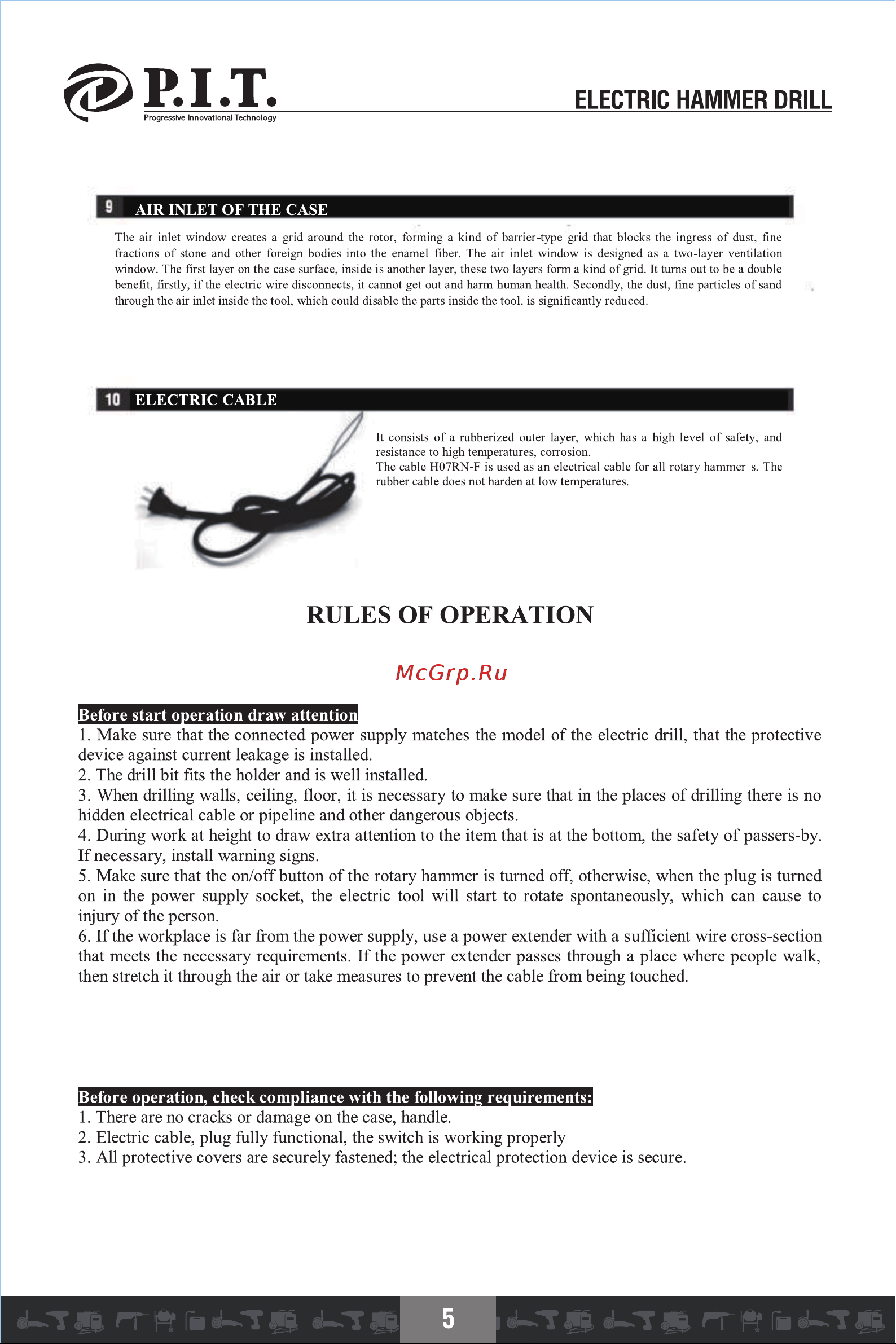

ELECTRIC HAMMER DRILL 3 AIR INLET OF THE CASE The air inlet window creates a grid around the rotor forming a kind of barrier type grid that blocks the ingress of dust fine fractions of stone and other foreign bodies into the enamel fiber The air inlet window is designed as a two layer ventilation window The first layer on the case surface inside is another layer these two layers form a kind of grid It turns out to be a double benefit firstly if the electric wire disconnects it cannot get out and harm human health Secondly the dust fine particles of sand through the air inlet inside the tool which could disable the parts inside the tool is significantly reduced 13 ELECTRIC CABLE It consists of a rubberized outer layer which has a high level of safety and resistance to high temperatures corrosion The cable H07RN F is used as an electrical cable for all rotary hammer s The rubber cable docs not harden at low temperatures RULES OF OPERATION Before start operation draw attention 1 Make sure that the connected power supply matches the model of the electric drill that the protective device against current leakage is installed 2 The drill bit fits the holder and is well installed 3 When drilling walls ceiling floor it is necessary to make sure that in the places of drilling there is no hidden electrical cable or pipeline and other dangerous objects 4 During work at height to draw extra attention to the item that is at the bottom the safety of passers by If necessary install warning signs 5 Make sure that the on off button of the rotary hammer is turned off otherwise when the plug is turned on in the power supply socket the electric tool will start to rotate spontaneously which can cause to injury of the person 6 If the workplace is far from the power supply use a power extender with a sufficient wire cross section that meets the necessary requirements If the power extender passes through a place where people walk then stretch it through the air or take measures to prevent the cable from being touched Before operation check compliance with the following requirements 1 There are no cracks or damage on the case handle 2 Electric cable plug fully functional the switch is working properly 3 All protective covers are securely fastened the electrical protection device is secure 5
