Denzel BLG-IB-18-02 [8/32] Handling instructions

RECHARGEABLE ANGLE GRINDER WITH BRUSHLESS MOTOR

HANDLING INSTRUCTIONS

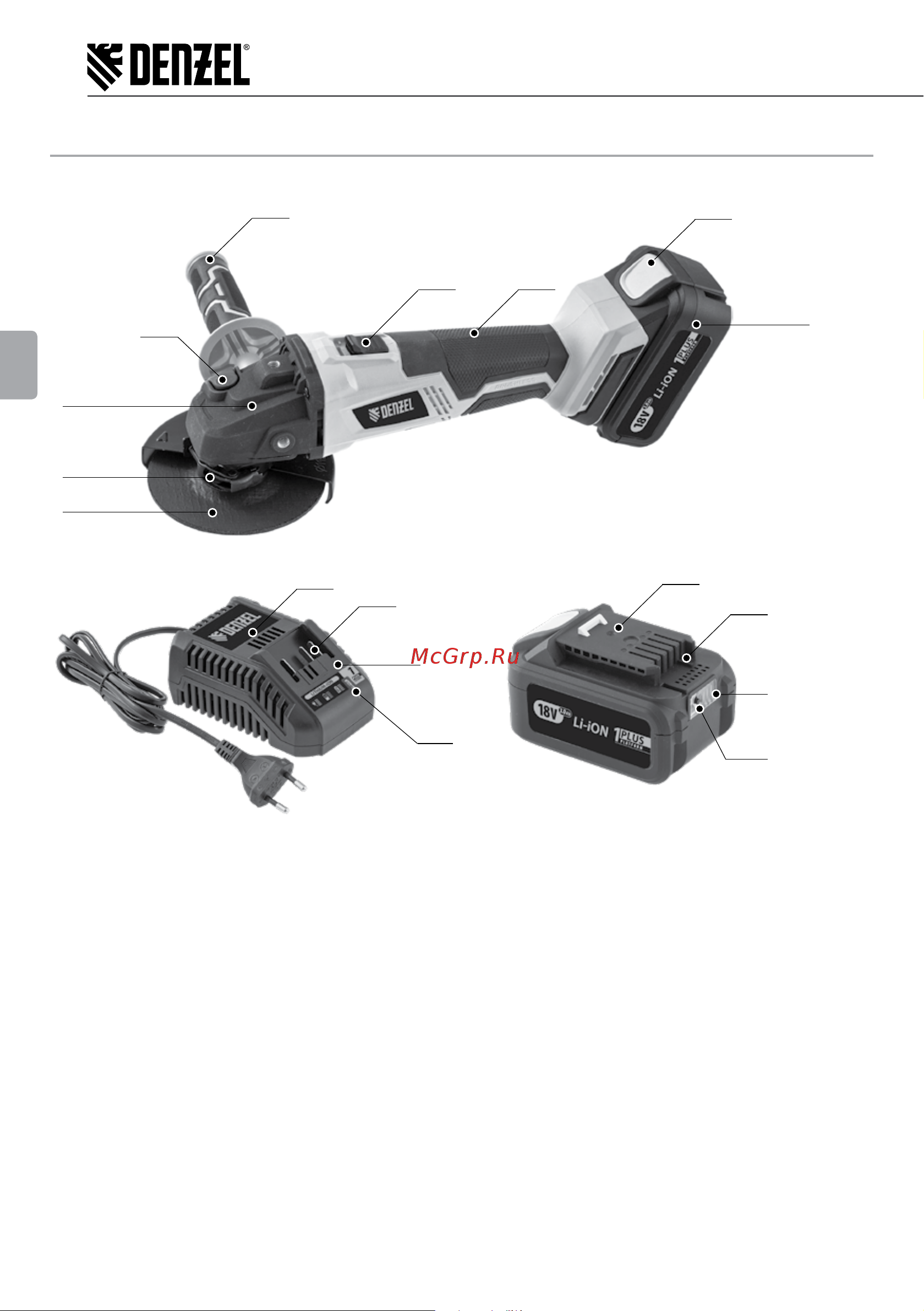

General view of the tool is shown on picture 1.

Рiс. 1

1. Protective cover fastening lever

2. Spindle lock button

3. Gear housing

4. Switch key

5. Main handle

6. Rechargeable battery

7. Battery Lock Key

8. Side handle

9. Tooling

10. Battery protection key

11. Battery charge indicator button

12. Battery charge indicator

13. Charger

14. Charger contacts

15. Charger Protection Key

16. Charger indicator

Machine unit

The machine consists of a plastic housing with a brushless electric motor located in it and a gearbox, on which

output shaft (spindle) with the tooling is installed. On the gearbox housing there is a button 2 (pic. 1) of the spindle

lock, providing spindle lock when changing the tooling. On the body of the engine there is a key 4 (pic. 1) for the engine

start, having the ability to be xed in the “on” position. The motor housing goes into the main handle 5 (рiс. 1),

terminating in battery connector.

The machine is equipped with a protective cover with the ability to change its position without using a tool.

The battery is equipped with a residual charge indicator 12 (рiс. 1), which is enabled using the button 11 (рiс. 1).

The indicator turns o automatically after 3 ... 4 seconds after pressing the button 11.
