RECORD POWER BS250-EP [10/32] Assembly of the optional stand wheel kit

3. Assembly of the Optional Stand & Wheel Kit - cont.

Note: When assembling this legstand Do

Not fully tighten the nuts and bolts until

the assembly is complete. Finger tight

should be sufficient.

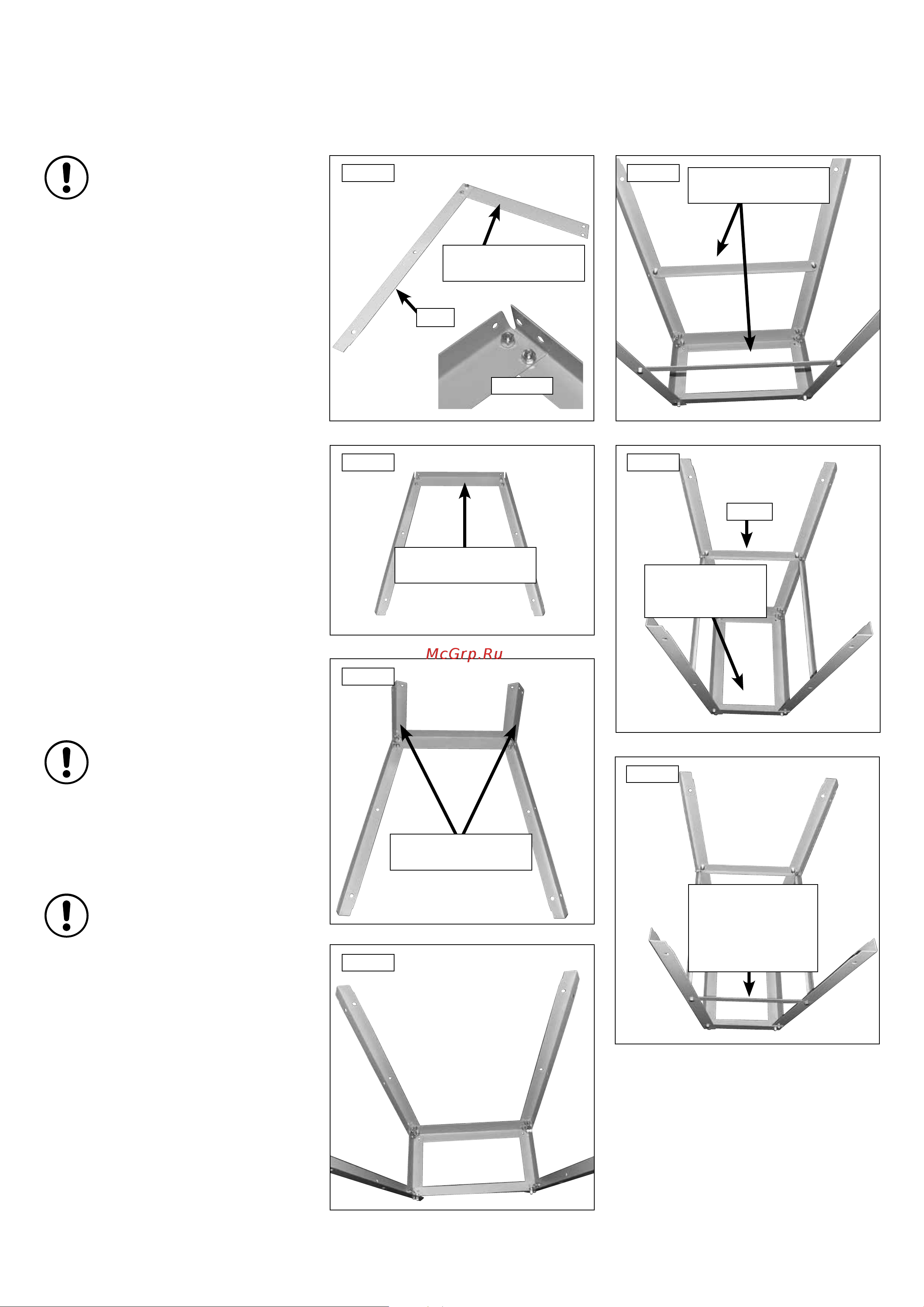

3.2 Stand Assembly

1. Locate the first leg and secure it to one of the

long top brace supports using the nuts, bolts

and washers supplied Fig.3.2 and Fig.3.2B.

Ensure that the top brace support is fitted to the

inside of the leg and that the angled top edge of

the top brace support is facing inwards.

2. In the same way, attach the second leg to the

brace support Fig.3.3.

3. Locate the short top brace supports and fix

the to the legs as shown Fig.3.4.

4. Continue in this way until all of the legs and

top brace supports have been fitted Fig.3.5.

5. The locating holes a third of the way down

each leg are for securing the mid brace supports.

Fix the long mid brace supports to the frame

using the nuts, bolts and washers Fig.3.6. Again

ensuring that they are positioned on the inside

of the legs.

6. Finally, fit the short mid brace support to one

of the shorter sides Fig.3.7. Again ensuring that

they are fitted to the inside of the legs.

Note

The side with the short mid brace

support fitted will be referred to as the

front of the stand. This leaves the front

area free for wheel kit operation.

Note

If you are not fitting the wheel kit,

attach the final brace as shown in Fig.3.8.

Fig.3.3

Fig.3.4

Fig.3.5

Fig.3.6Fig.3.2

Fig.3.7

Fig.3.2B

BACK

LONG TOP BRACE

SUPPORT

SHORT TOP BRACE

SUPPORTS

Fig.3.8

LONG TOP BRACE

SUPPORT

LONG MID BRACE

SUPPORTS

LEG

SHORT MID BRACE

SUPPORT TO BE

FITTED IF THE

WHEEL KIT IS NOT

REQUIRED

SPACE LEFT

FOR WHEEL KIT

OPERATION
