3. Assembly of the Optional Stand & Wheel Kit - cont.

3.4 Fitting the bandsaw to the stand

CAUTION! The machine is heavy.

Additional help or a suitable lifting

device or support will be required for

lifting the machine onto the stand.

1. Lift the bandsaw over the stand and place the

long fixing bolts through the four location holes

in the bandsaw base Fig.3.19.

2. Secure the bandsaw to the stand with the

remaining washers and nuts Fig.3.20.

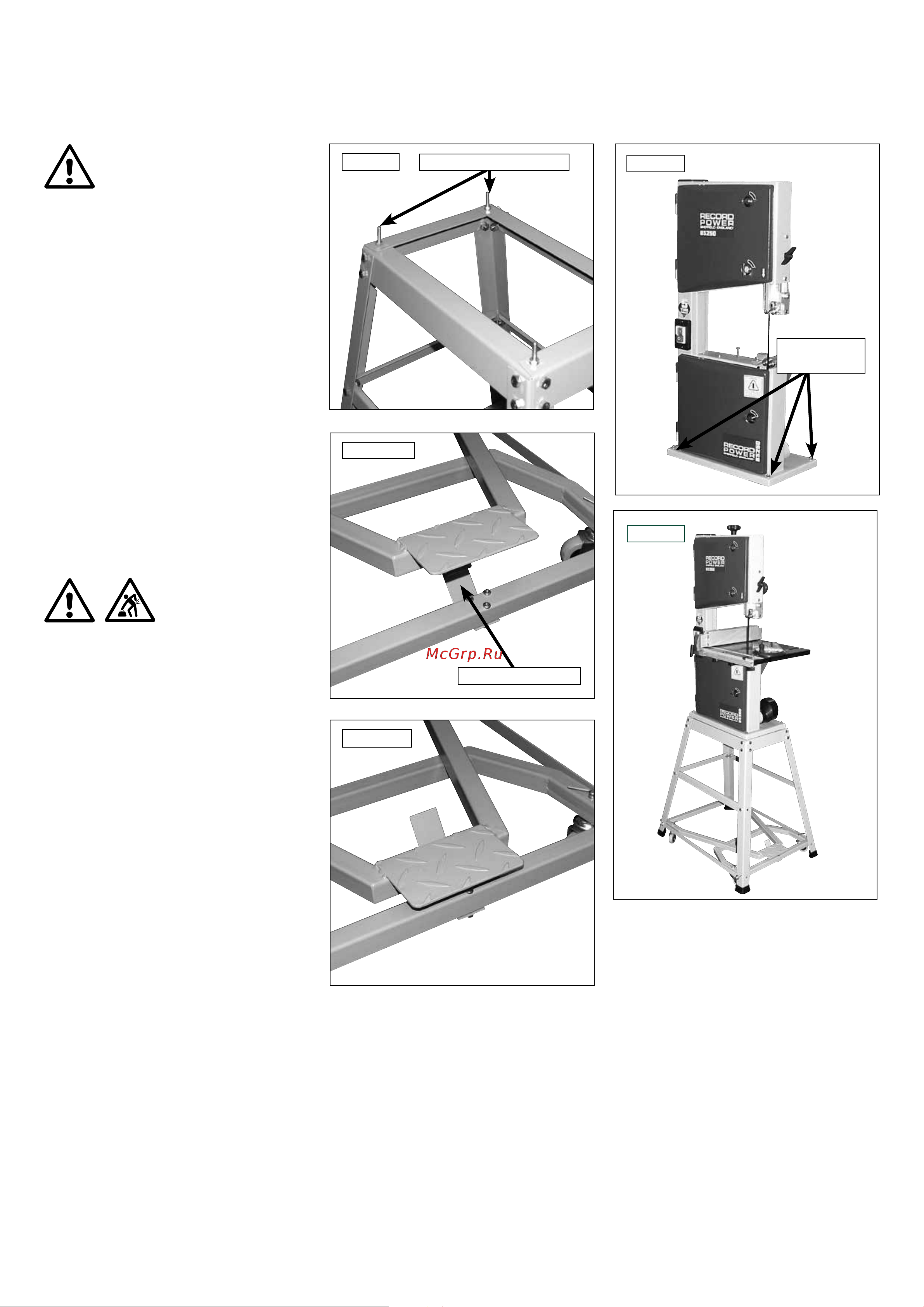

Fig.3.17

LONG FIXING BOLTS

Note

Before fully tightening all of the fixtures

on the stand ensure that the long fixing

bolts and nuts are fitted through each

top corner of the stand. Once this is

complete the rest of the stand can be

fully tightened and the bandsaw can be

fitted.

1. Feed the long fixing bolts up through the

stand and secure the four corners using the

washers and bolts provided Fig.3.17. But do

not fully secure them as fine adjustment may be

needed when fitting the Bandsaw.

2. Once the stand is fully tightened adjust

the position of the release pedal so it fastens

the operating pedal down Fig.3.18A and

Fig.3.18B. The bandsaw can now be fitted to

the stand.

Fig.3.20

Fig.3.19

LOCATION

HOLES

Fig.3.18A

Fig.3.18B

RELEASE PEDAL
