2. Specifications
1. Getting to Know Your Bandsaw

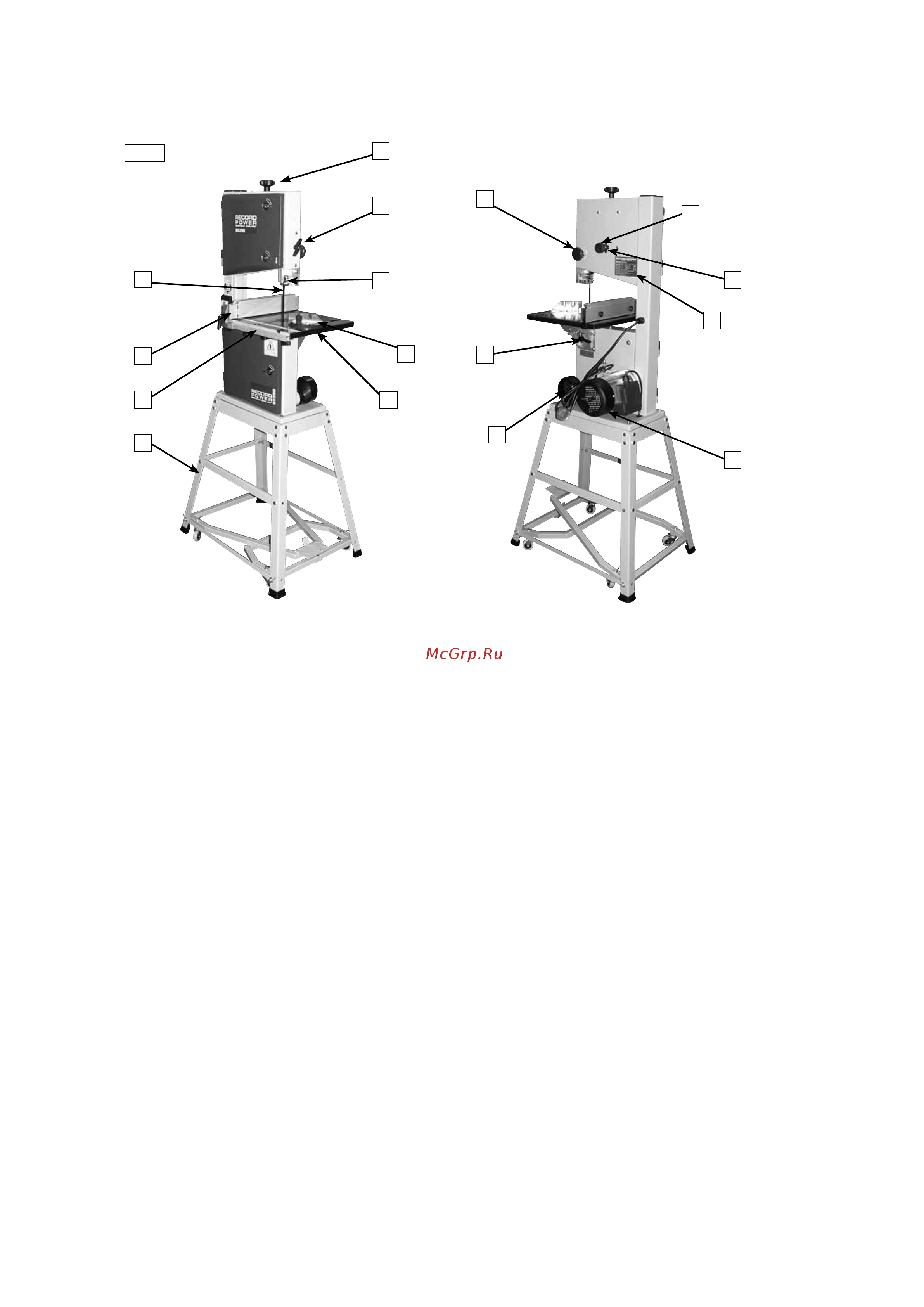

Fig.1
A Blade Tensioning Knob
B Rise & Fall Lock
C Blade
D Upper Blade Guide
E Mitre Fence
F Rip Fence
G Rip Fence Rail
H Table
I Stand & Wheel Kit (optional accessory)
J Rise & Fall Knob
K Tracking Knob
L Tracking Knob Lock
M Motor Rating Plate
N Table Tilting Handle
O 100 mm Dust Extraction Port
P Motor
A
B
C
F
I
D
E
H
J
K
P
N
G
L
Blade length: 1790 mm (70
1
/
2
”)
Blade width: 6 - 13 mm (
1
/
4
” -
1
/
2
”)
Max depth of cut: 120 mm
Throat depth: 240 mm
Table size: 315 x 350 mm
Max width blade to rip fence: 140 mm
Table height (from floor): 370 mm
Extraction port: 58 mm (100 mm adaptor supplied)
Motor power (output): 230 V 50 Hz, 350 W input, 200 W output
Weight: 30 kg
Footprint: 340 x 240 mm
Dimensions: H860 x W550 x D480 mm
Sound power level: < 85 dBA
Sound pressure level: < 85 dBA
M
O
