3. Assembly of the Optional Stand & Wheel Kit - cont.
CAUTION: When assembling the wheel
kit, ensure that the operating pedal is
positioned so that it protrudes through
the front of the stand (i.e. the area of
the stand without the short mid brace
support fitted).
The are of the stand without the fitted
3.3 Wheel Kit Assembly
1. On the underside of the operating frame, feed
the short stem wheels through the pre-drilled
holes and secure with one of the pins and
washers provided Fig.3.9.
2. With the operating frame in hand, attach the
release pedal to the underside of the operating
frame using the 3 Phillips head bolts Fig.3.10.
The slots on the release pedal are elongated
to allow adjustment when the wheel kit is
assembled.
3. Take the two long stem wheels and pass them
through the pre drilled holes in the operating
frame pedal and secure with pins Fig.3.11.
Now slide an axle through one of the front legs
and hook a brace support bar on it. Place a
washer on and slide a pin through the axle end
Fig.3.12.
4. Pass the axle through the operating frame
pedal and through the opposing leg. Once
the axle is through the opposing leg hook
the remaining brace support bar on the axle
and secure with a washer and pin as previous
Fig.3.13.
5. Now pass the remaining axle through the rear
of the stand and hook the brace support bar
with washer and pin as previous. Fig.3.14.
6. The operating frame can now be fitted to the
axle and secured to the opposing rear leg with
the other brace support bar, washer and pin.
Ensure when this operating frame is fitted that it
sits below the operating frame pedal Fig.3.15.
7. Slide the rubber feet onto the bottom of the
bandsaw legs and position the frame upright.
Once the frame is upright, the whole assembly
should fall into place. However it will not
operate correctly until the actual bandsaw is
fitted. Fig.3.16.

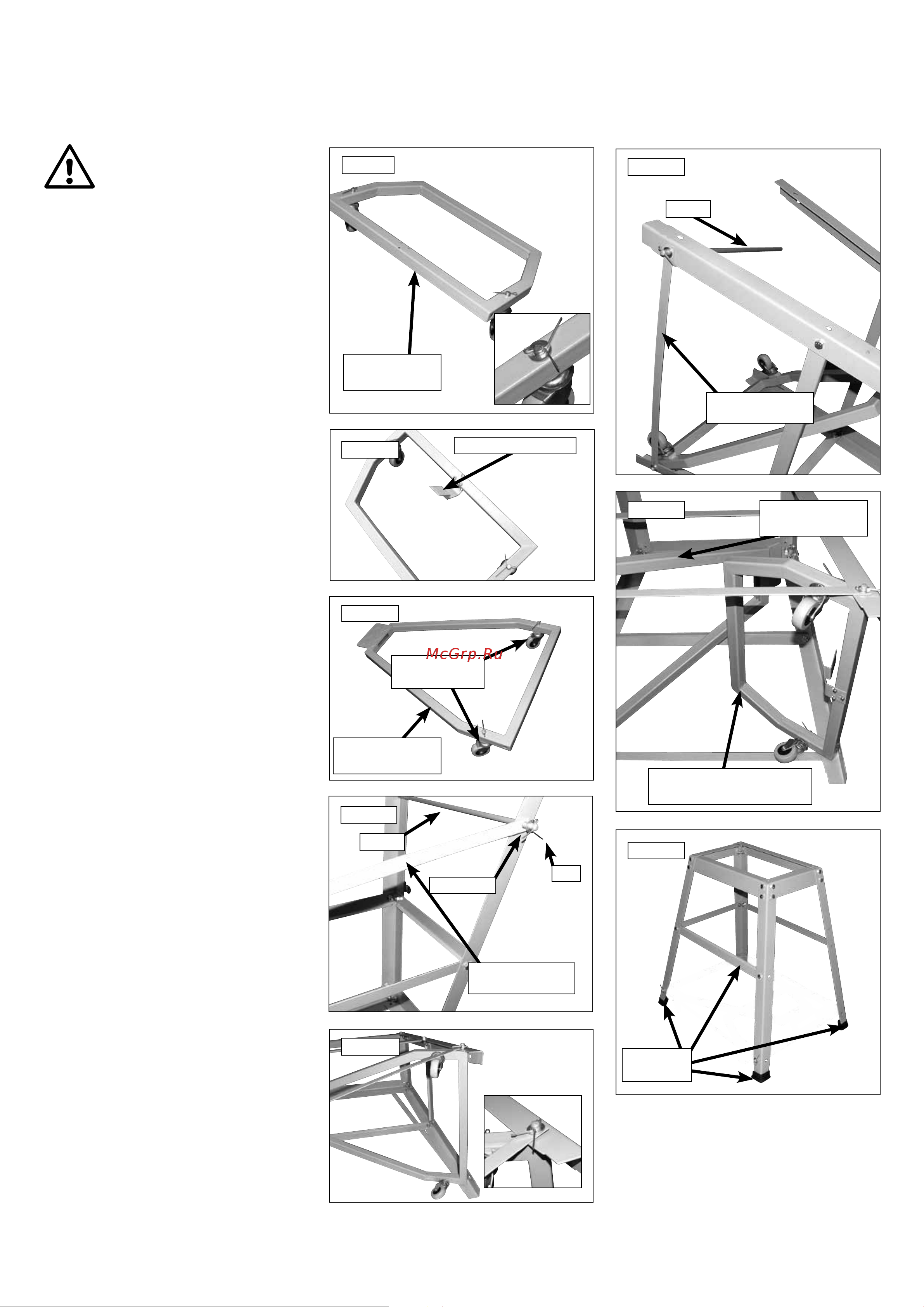

Fig.3.9
Fig.3.11
Fig.3.13
Fig.3.10
RELEASE PEDAL
Fig.3.12
AXLE
WASHER
PIN
BRACE SUPPORT
BAR
Fig.3.14
Fig.3.15
Fig.3.16
OPERATING
FRAME
LONG STEM
WHEELS
OPERATING
FRAME PEDAL
BRACE SUPPORT
BAR
OPERATING FRAME
BELOW THE PEDAL
OPERATING
FRAME PEDAL
RUBBER
FEET
AXLE
