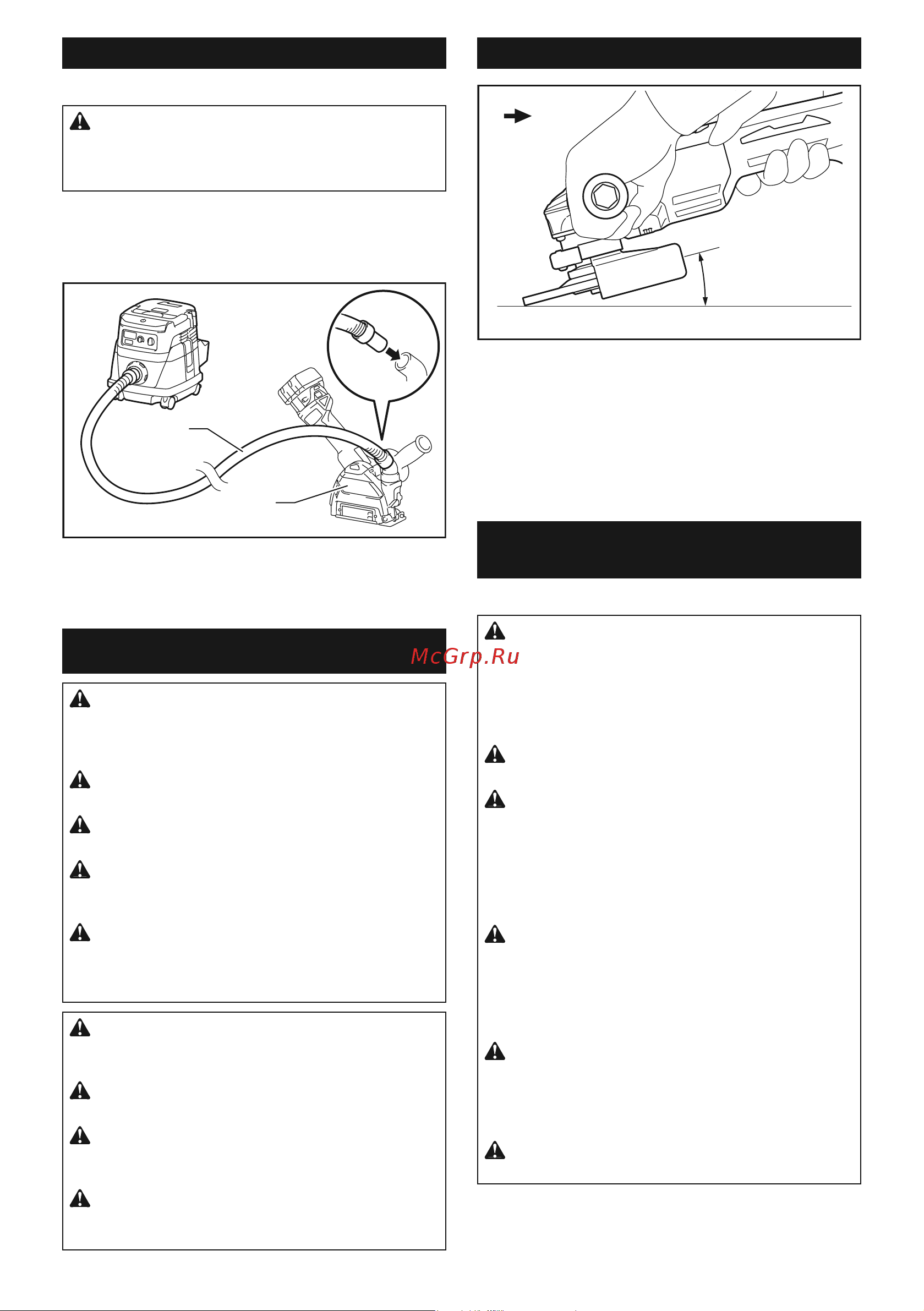

16 ENGLISH
Connecting a vacuum cleaner
Optional accessory
WARNING:
Never vacuum metal particles cre-
ated by grinding/cutting/sanding operation. Metal
use a dust collecting wheel guard and a vacuum cleaner.
Refer to the instruction manual attached to the dust
collecting wheel guard for assembling and using it.
2
1
1. Dust collecting wheel guard 2.-
uum cleaner
OPERATION
WARNING: It should never be necessary to
force the tool.-
could cause dangerous wheel breakage.
WARNING: ALWAYS replace wheel if tool is
dropped while grinding.
WARNING: NEVER bang or hit grinding disc
or wheel onto work.
WARNING:
Avoid bouncing and snagging the
wheel, especially when working corners, sharp
edges etc.
WARNING: NEVER use tool with wood cutting
blades and other saw blades. Such blades when
CAUTION: Never switch on the tool when it
is in contact with the workpiece, it may cause an
injury to operator.
CAUTION: Always wear safety goggles or a
face shield during operation.
CAUTION: After operation, always switch off
the tool and wait until the wheel has come to a
complete stop before putting the tool down.
CAUTION:
one hand on housing and the other on the side
grip (handle).
Grinding and sanding operation
15°
workpiece.
In general, keep the edge of the wheel or disc at an
angle of about 15° to the workpiece surface.
During the break-in period with a new wheel, do not
the workpiece. Once the edge of the wheel has been
forward and backward direction.
Operation with abrasive cut-off /
diamond wheel
Optional accessory
WARNING: When using an abrasive cut-off
/ diamond wheel, be sure to use only the special
wheel guard designed for use with cut-off wheels.
(In some European countries, when using a diamond
WARNING: NEVER use cut-off wheel for side
grinding.
WARNING: Do not "jam" the wheel or apply
excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
of kickback, wheel breakage and overheating of the
WARNING: Do not start the cutting operation
in the workpiece. Let the wheel reach full speed
and carefully enter into the cut moving the tool
forward over the workpiece surface.
started in the workpiece.
WARNING: During cutting operations, never
change the angle of the wheel. Placing side pres-
the wheel to crack and break, causing serious per-
WARNING: A diamond wheel shall be oper-
ated perpendicular to the material being cut.
