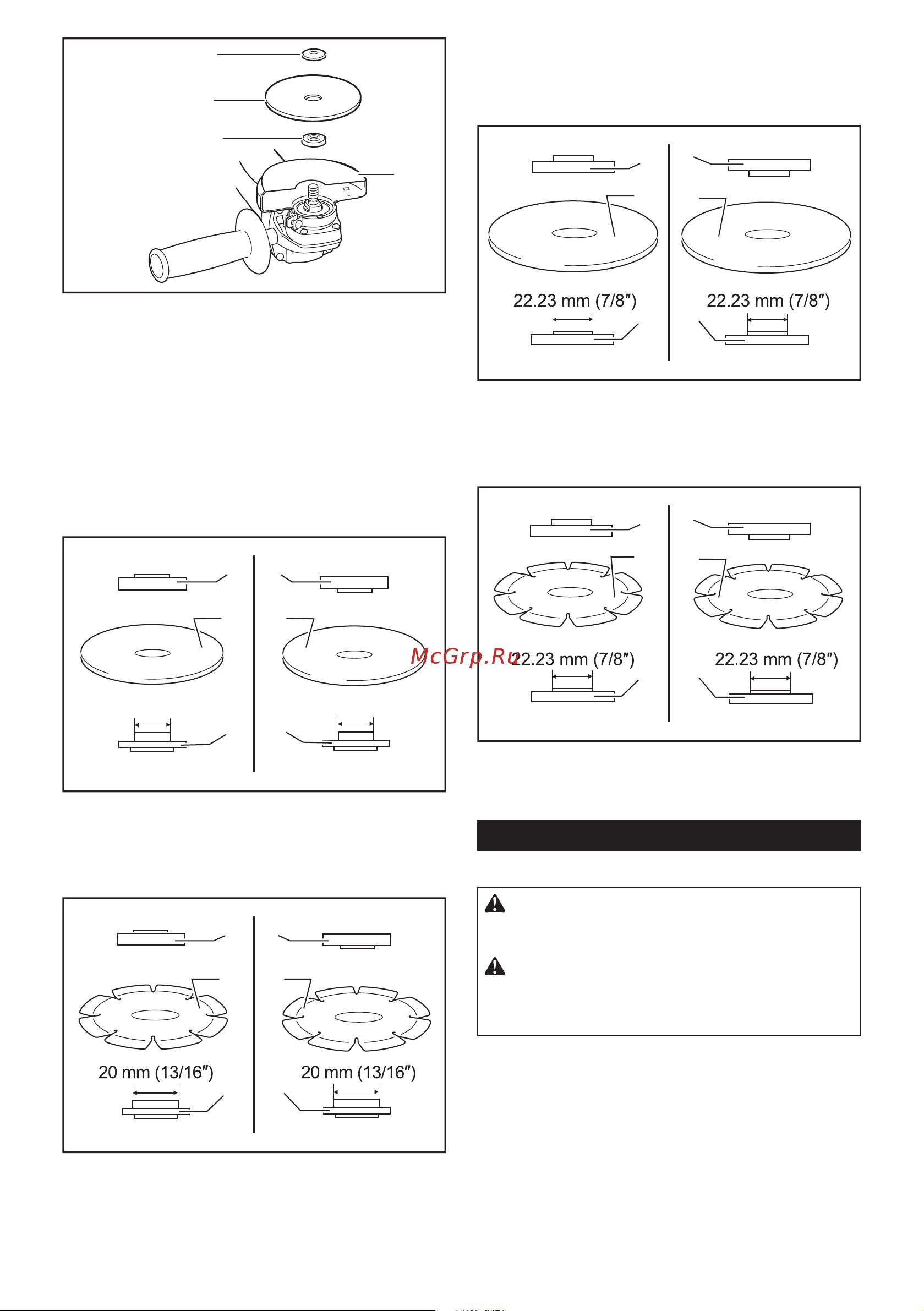

► 1. Lock nut 2. Abrasive cut-off wheel / diamond

wheel 3. Inner ange 4. Wheel guard for abrasive

cut-off wheel / diamond wheel

As for the installation, follow the instructions for

depressed center wheel.

The direction for mounting the lock nut and the

inner ange varies by wheel type and thickness.

Refer to the following gures.

For 100 mm (4″) model

When installing the abrasive cut-off wheel:

16 mm (5/8″)

► 1. Lock nut 2. Abrasive cut-off wheel (Thinner than

4mm (5/32")) 3. Abrasive cut-off wheel (4mm (5/32")

or thicker) 4. Inner ange

When installing the diamond wheel:

► 1. Lock nut 2. Diamond wheel (Thinner than 4mm

(5/32″)) 3. Diamond wheel (4mm (5/32″) or thicker)

4. Inner ange

For 115 mm (4 - 1/2″) / 125 mm (5″)

model

When installing the abrasive cut-off wheel:

► 1. Lock nut 2. Abrasive cut-off wheel (Thinner than

4mm (5/32")) 3. Abrasive cut-off wheel (4mm (5/32")

or thicker) 4. Inner ange

When installing the diamond wheel:

► 1. Lock nut 2. Diamond wheel (Thinner than 4mm

(5/32″)) 3. Diamond wheel (4mm (5/32″) or thicker)

4. Inner ange

Operation with wire cup brush

Optional accessory

CAUTION: Check operation of brush by run-

ning tool with no load, insuring that no one is in

front of or in line with brush.

CAUTION: Do not use brush that is damaged,

or which is out of balance. Use of damaged brush

could increase potential for injury from contact with

broken brush wires.
