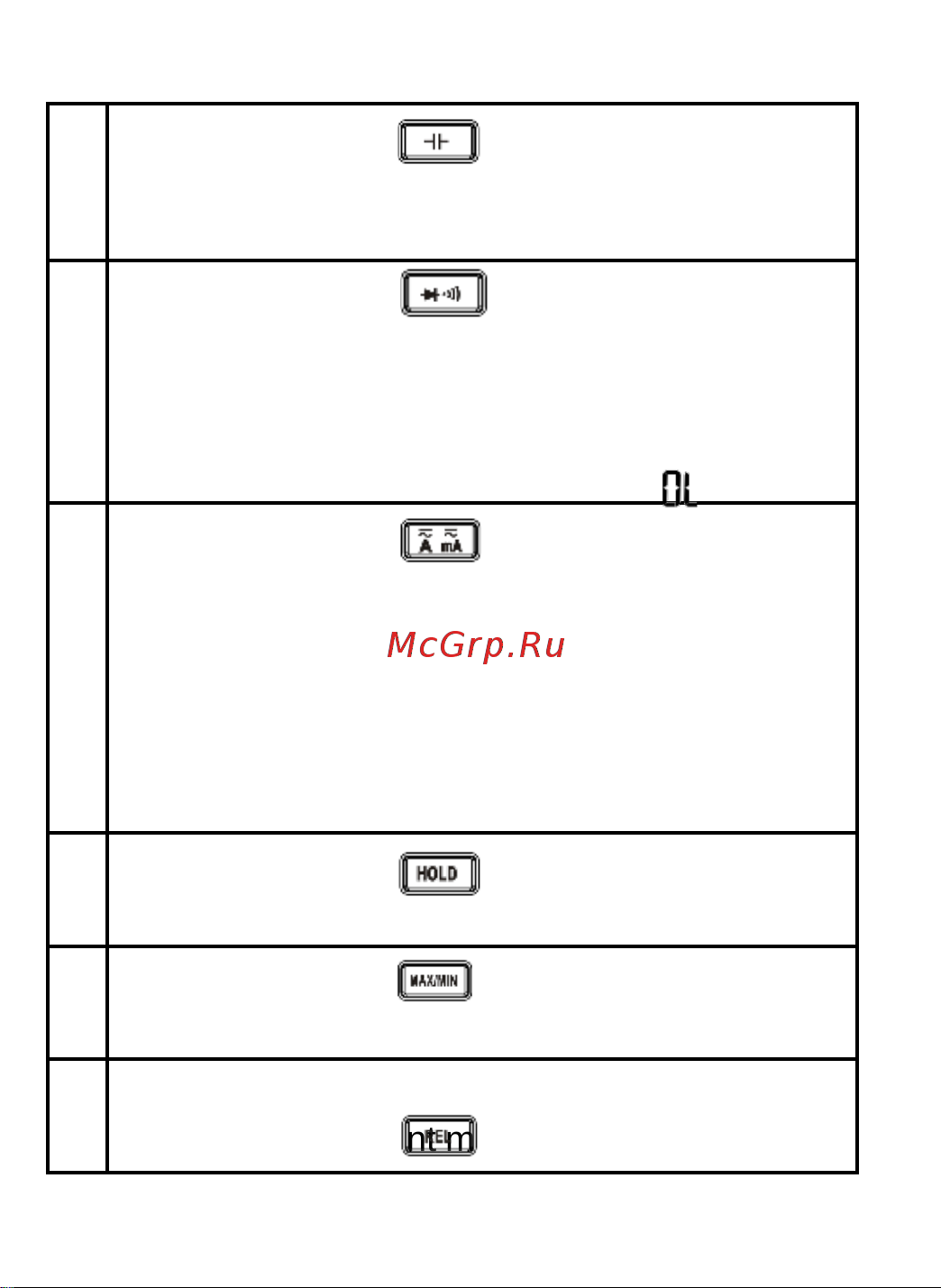

Function Buttons
Press this button to enter the
capacitance measurement mode.
Capacitor: ≤100mF.
Press this button to enter the diode/on-
off measurement mode.
Continuity: The buzzer sounds when it is less
than 50Ω.
Diode: more than 3V will display “ "
Press this button to enter AC and DC
high current, AC and DC milliamp current
measurement mode.
DC high current: ≤19.999A.
AC high current: ≤19.999A.
DC mA current: ≤199.99mA.
AC mA current: ≤199.99mA.
Press this button to keep the current
reading.
Press this button to record the maximum
value
and minimum value. Long
press to exit.
Press this button to enter the relative
value measurement mode.
⑦
⑧
⑨
⑩
⑤
⑥
