OIMM – VENTUS PRO

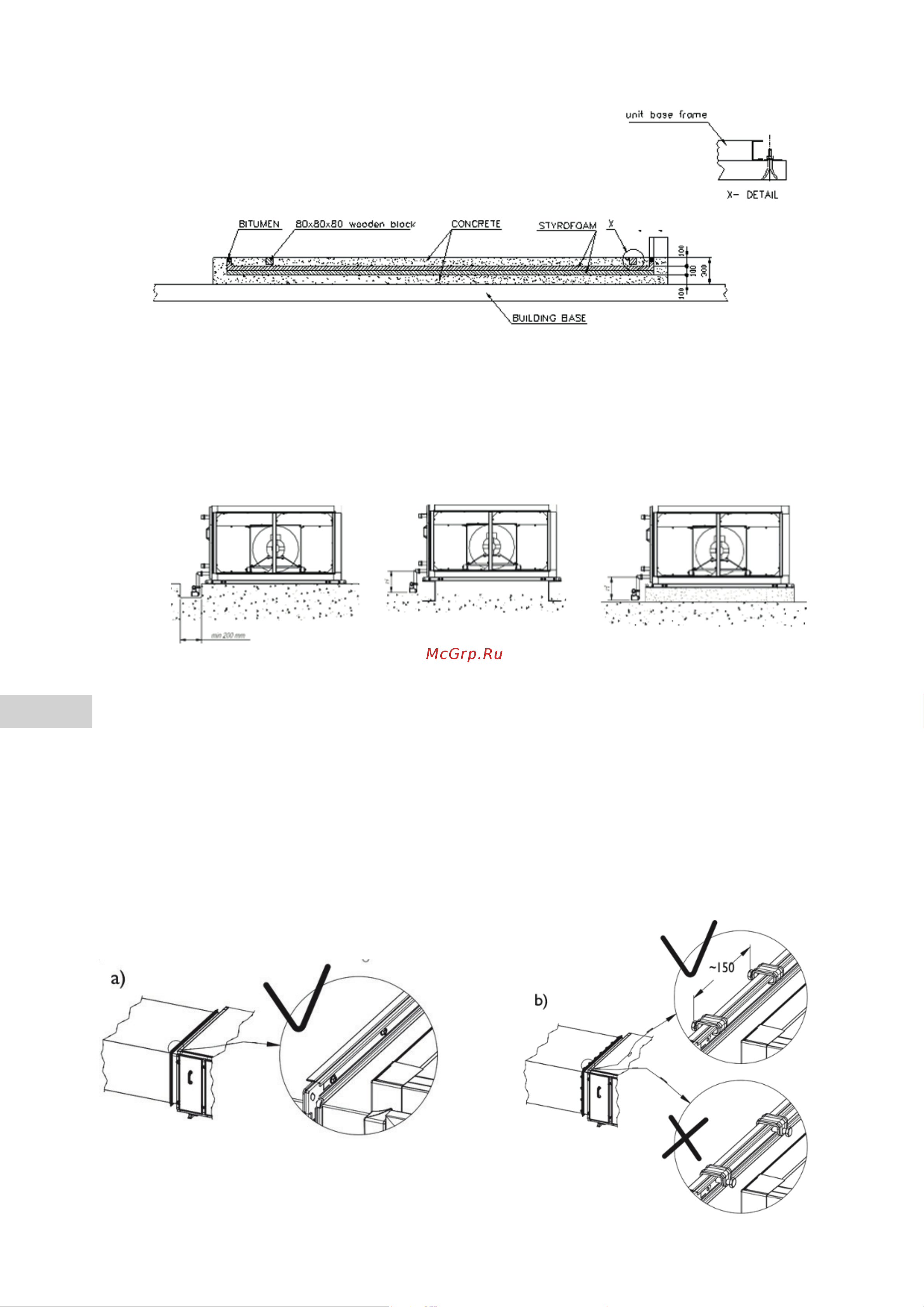

Height of the foundation slab or base frame must allow for assembly of the u-trap which drains the condensate

out of the draining tray. In case of the drain plates installed in the lower AHU sections, the unit has to be mounted

onto additional foundation slab or a special hollow must be made directly under the u-trap.

The ventilation ducts should be connected to the AHU with the exible connections (optional accessory)

which suppress vibrations of the unit and level the coaxial deection of the duct and the AHU outlets. Flexible

connections are equipped with anges with sealing. The exible anges should be connected with ducts with

using drilling screws or additional clamping elements. Materials to connect ducts are not supplied as standard
