OIMM – VENTUS PRO





               

installed and attached separately in the package.

To mount the drain pipe one should unscrew the drilling screws and disassembly header connection glands



assembly bach the header glands (2).

Siphons, which are designed to drain out condensed water from the exchangers at different pressure of the

section and environment, should be connected to the drain connections.

For proper drainage of condensate from the unit, the siphon on the drain pan connection pipe must be installed

in the AHU sections, where negative pressure occurs. Drain siphons or siphon parts are not supplied as standard

delivery. There is no need to apply drain siphons in section with overpressure. In order to minimize air blow–by,

you can use a siphon on the system draining out condensate, assembling the siphon made in accordance with



Siphons usable „H” height depends on the pressure difference between the AHU section, where condensate is

drained from during operation and the ambient pressure. „H” dimension is provided in mm and must be higher

than the pressure difference expressed in mmHO.

If the air handling unit is to be installed in a place where low vibration and noise is required such as hotels,

                  

Styrofoam

» FITTINGS

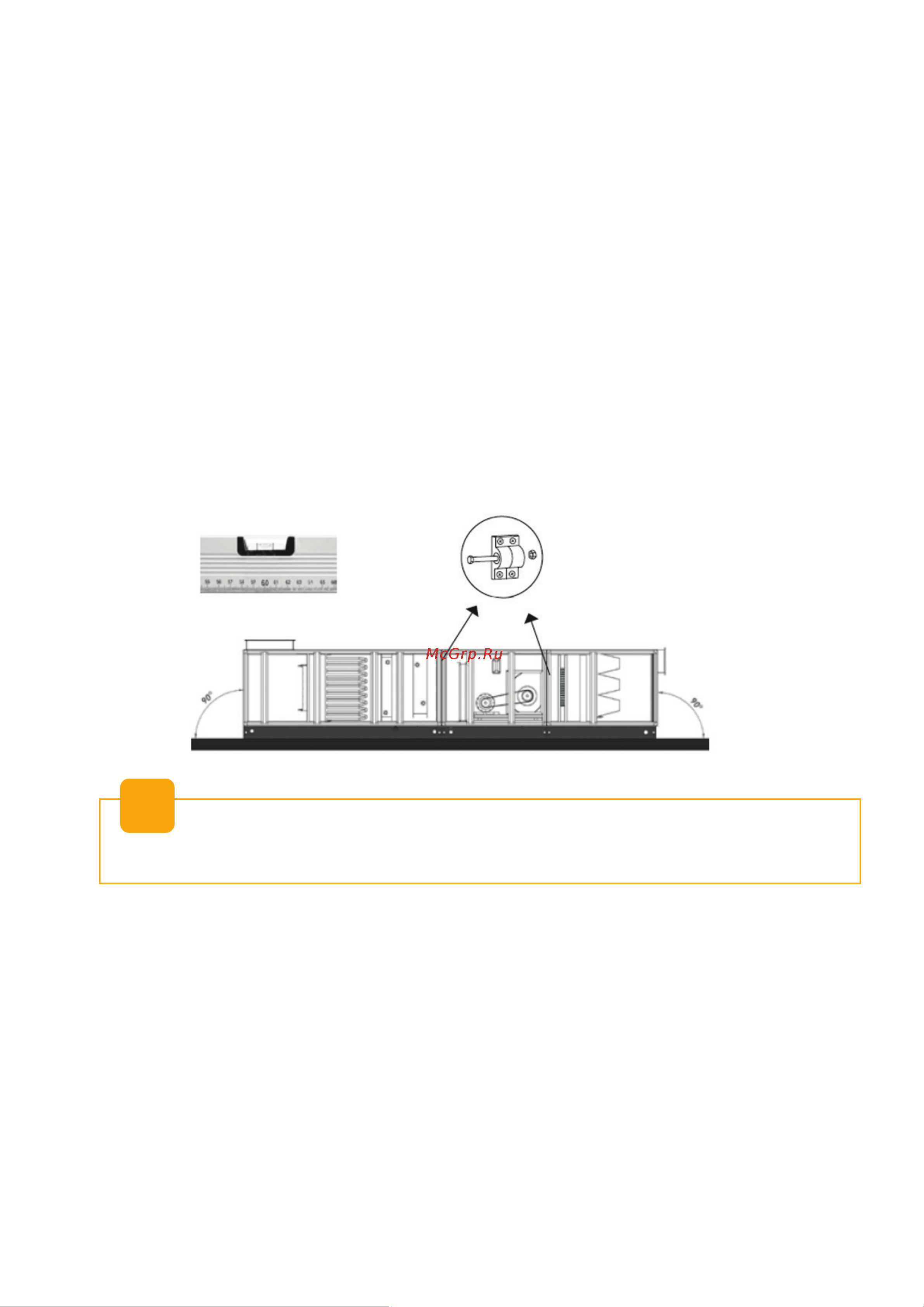

! First attach the bolts on the base frame, then section bolts and tighten both with the same

order and same torque gradually. Do not use excessive force to align the sections, because it

may deform the aluminum framework and casing.
