AdvancedDisplayModule(ADM)Operation
Troubleshooting Troubleshooting
Troubleshooting
Screens Screens
Screens

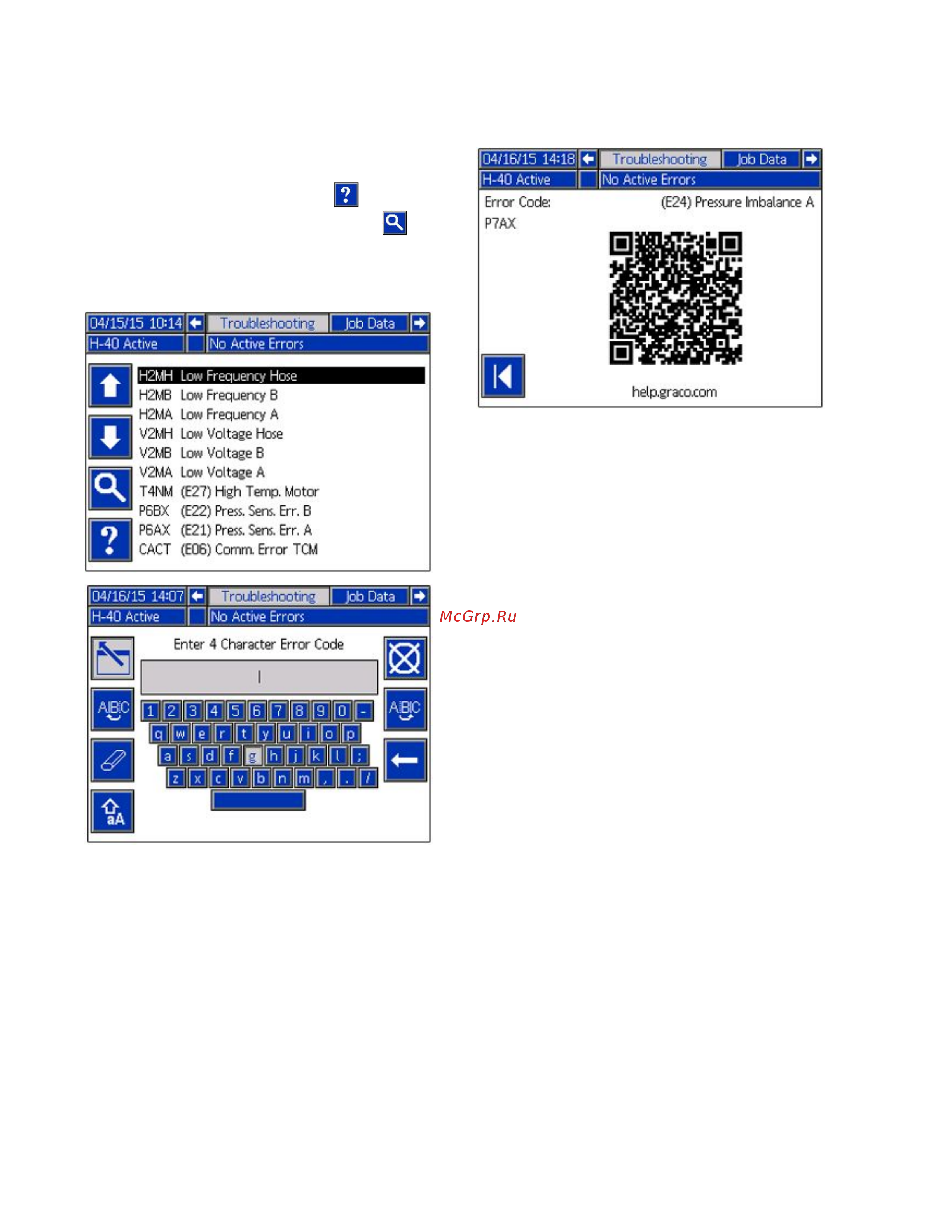

Thisscreendisplaysthelasttenerrorsthat
occurredonthesystem.Usetheupanddown
arrowstoselectanerrorandpress
toview
theQRcodefortheselectederror.Press
toaccesstheQRcodescreenforanerror
codethatisnotlistedonthisscreen.See
ErrorCodesandTroubleshooting,page68,formore
informationonerrorcodes.
QR QR
QR
Codes Codes
Codes
Toquicklyviewonlinehelpforagivenerrorcode,
scanthedisplayedQRcodewithyoursmartphone.
Alternately,visithelp.graco.comandsearchforthe
errorcodetoviewonlinehelpforthatcode.
