Maintenance
Pump Pump
Pump
Lubrication Lubrication
Lubrication
System System
System
ChecktheconditionoftheISOpumplubricantdaily.
Changethelubricantifitbecomesagel,itscolor
darkens,oritbecomesdilutedwithisocyanate.
Gelformationisduetomoistureabsorptionbythe
pumplubricant.Theintervalbetweenchanges
dependsontheenvironmentinwhichtheequipment
isoperating.Thepumplubricationsystemminimizes
exposuretomoisture,butsomecontaminationisstill
possible.
Lubricantdiscolorationisduetocontinualseepageof
smallamountsofisocyanatepastthepumppackings
duringoperation.Ifthepackingsareoperating
properly,lubricantreplacementduetodiscoloration
shouldnotbenecessarymoreoftenthanevery3or
4weeks.
Tochangepumplubricant:
1.FollowPressureReliefProcedure,page62.
2.Liftthelubricantreservoir(LR)outofthebracket
(RB)andremovethecontainerfromthecap.
Holdingthecapoverasuitablecontainer,remove
thecheckvalveandallowthelubricanttodrain.
Reattachthecheckvalvetotheinlethose.
3.Drainthereservoirandushitwithclean
lubricant.
4.Whenthereservoirisushedclean,llwithfresh
lubricant.
5.Threadthereservoirontothecapassemblyand
placeitinthebracket.
6.Pushthelargerdiametersupply(ST)tube
approximately1/3ofthewayintothereservoir.
7.Pushthesmallerdiameterreturntube(RT)into
thereservoiruntilitreachesthebottom.
NOTE: NOTE:
NOTE:
Thereturntubemustreachthebottomof
thereservoirtoensurethatisocyanatecrystals
willsettletothebottomandnotbesiphonedinto
thesupplytubeandreturnedtothepump.
8.Thelubricationsystemisreadyforoperation.No
primingisrequired.

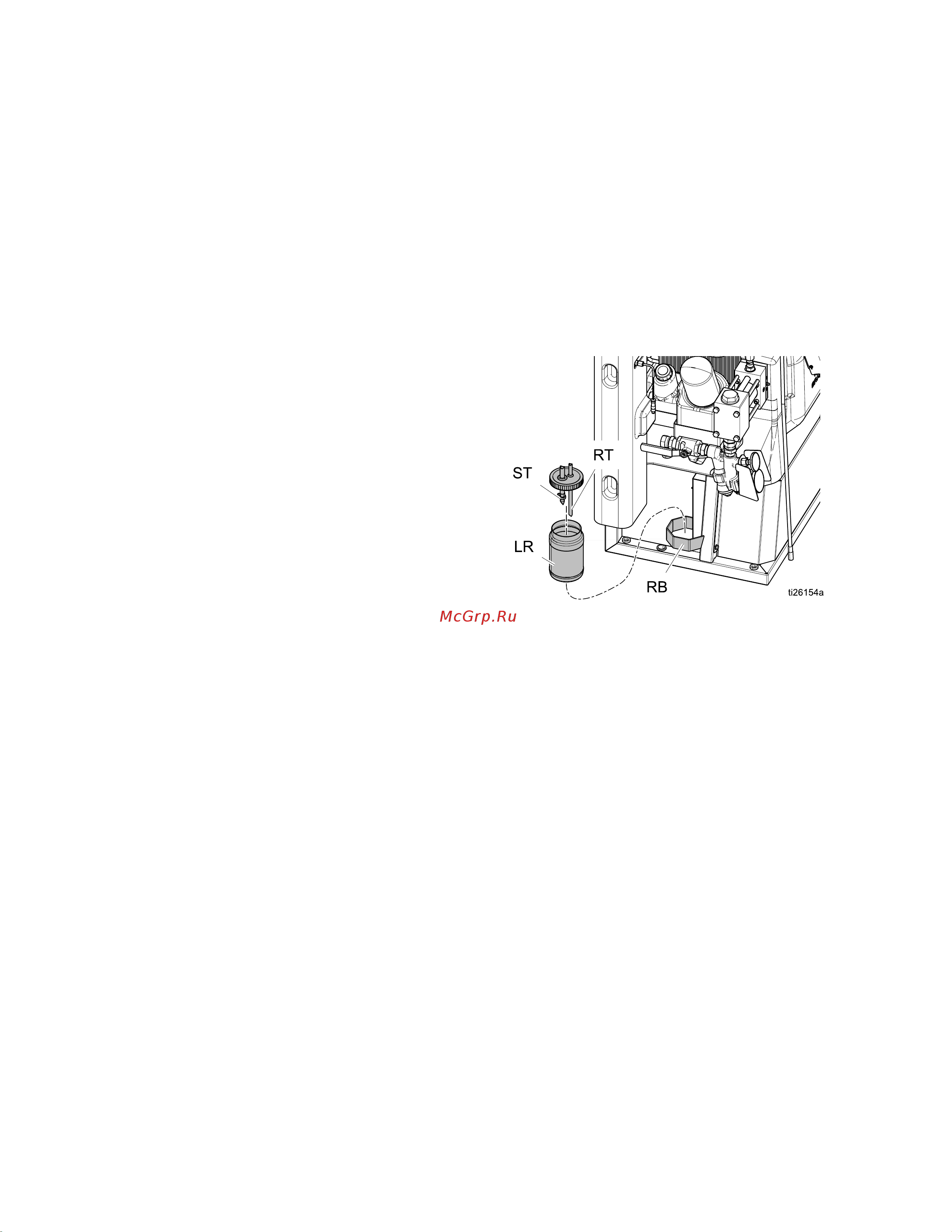

PumpLubricationSystem
Figure11
66 334945J
