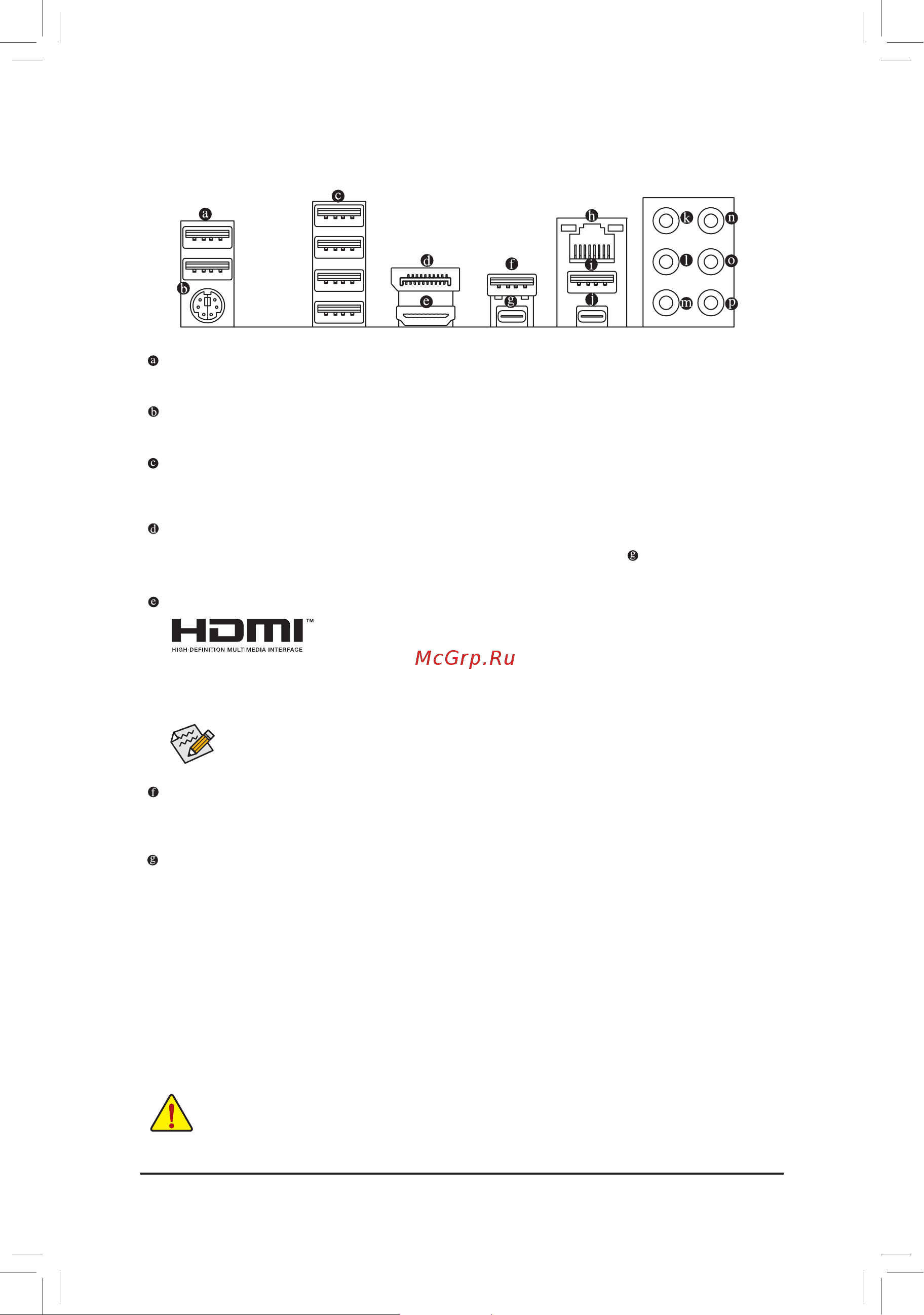

1-6 Back Panel Connectors
USB 2.0/1.1 Port
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 mouse or keyboard.
USB 3.2 Gen 1 Port
TheUSB3.2Gen1portsupportstheUSB3.2Gen1specicationandiscompatibletotheUSB2.0
specication.UsethisportforUSBdevices.
DisplayPort In port
TheDisplayPortInportoffersvideooutputstothemotherboard.Refertothe USB Type-C
®
port (USB
3.2 Gen 1) for more information.
HDMI Port
The HDMI port supports HDCP 2.3 and Dolby TrueHD and DTS HD Master
Audio formats. It also supports up to 192KHz/16bit 7.1-channel LPCM audio
output. You can use this port to connect your HDMI-supported monitor. The maximum supported
resolution is 4096x2160@30 Hz, but the actual resolutions supported are dependent on the monitor
being used.
After installing the HDMI device, make sure to set the default sound playback device to HDMI.
(The item name may differ depending on your operating system.)
USB 3.2 Gen 2 Type-A Port (Red)
TheUSB3.2Gen2portsupportstheUSB3.2Gen2specicationandiscompatibletotheUSB3.2Gen1
andUSB2.0specication.UsethisportforUSBdevices.
USB Type-C
®
Port
This port supports GIGABYTE VisionLINK technology and has display and data transmission capabilities
with 20V@3A of power delivery. You can connect a drawing tablet to this port. This port also supports
standard USB Type-C
®
and DisplayPort display output. You can connect a USB Type-C
®
monitor to this port
or use an adapter cable to connect a standard DisplayPort monitor. The maximum supported resolution is
4096x2304@60 Hz when using a DisplayPort monitor, but the actual resolutions supported are dependent
onthemonitorbeingused.ThereversibleUSBportsupportstheUSB3.2Gen1specicationandis
compatibletotheUSB2.0specication.YoucanusethisportforUSBdevices,too.
• Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
- 13 -
