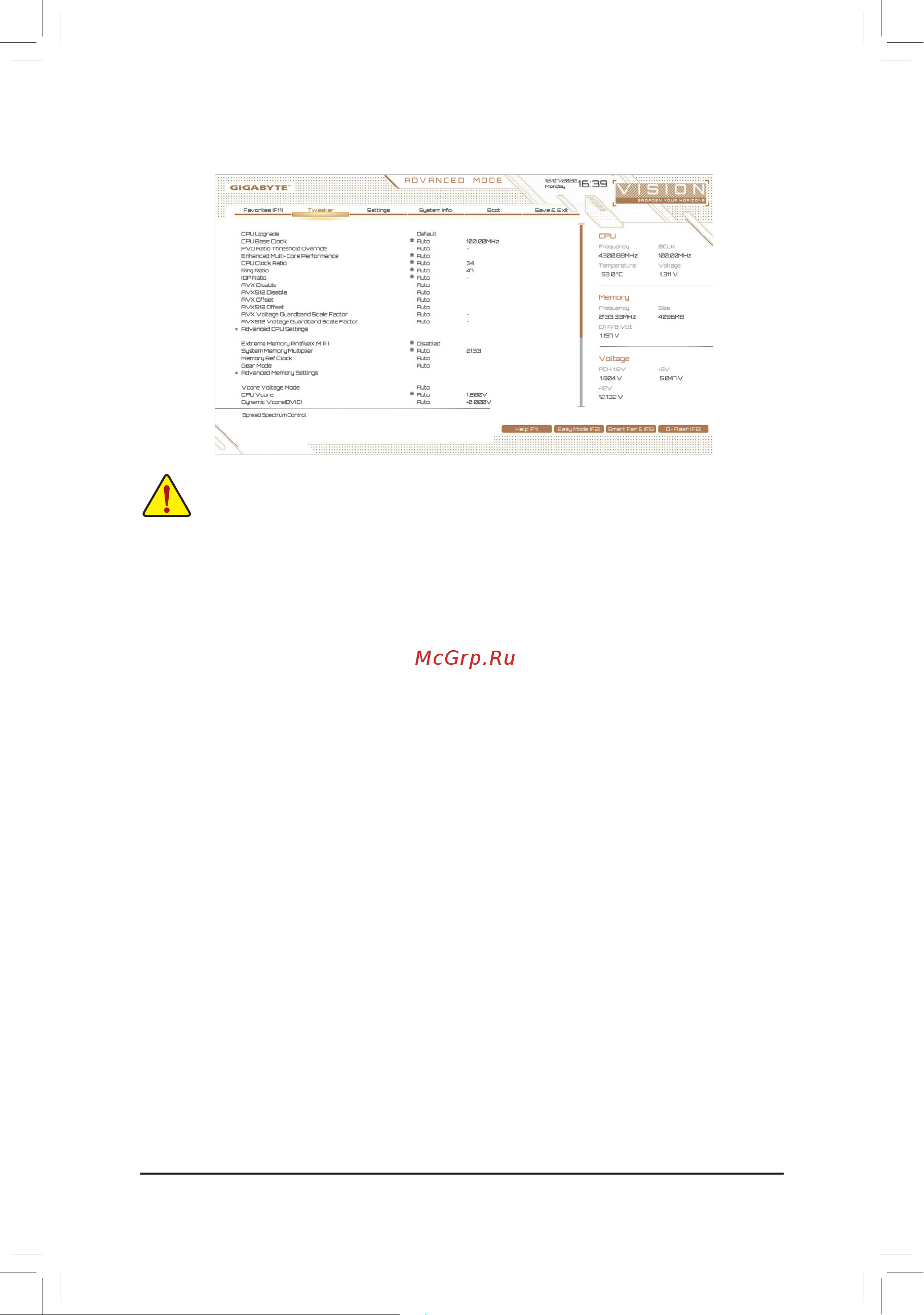

Gigabyte Z590 VISION G [31/52] Pvd ratio threshold overrid
![Gigabyte Z590 VISION G [31/52] Pvd ratio threshold overrid](/views2/1919725/page31/bg1f.png)
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall
systemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamagetoCPU,chipset,ormemory
and reduce the useful life of these components. This page is for advanced users only and we recommend you not to
alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings
may result in system's failure to boot. If this occurs, clear the CMOS values and reset the board to default values.)
& CPU Upgrade
AllowsyoutosettheCPUfrequency.ThenalresultmayvarydependingontheCPUused.Optionsare:
Default,GamingProle,AdvancedProle.(Default:Default)
& CPU Base Clock
Allows you to manually set the CPU base clock in 0.01 MHz increments. (Default: Auto)
Important: It is highly recommended that the CPU frequency be set in accordance with the CPU
specications.
& PVD Ratio Threshold Override
(Note)
AllowsyoutodeterminewhethertoimproveperformanceunderextremeBCLKOCbyreducinga"PLL
Banding"conditioncausedinpartbyaveryhighDCOfrequency.(Default:Auto)
& Enhanced Multi-Core Performance
Determines whether to allow the CPU to run at Turbo 1C speed. (Default: Auto)
& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
& Ring Ratio
Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. (Default:
Auto)
& IGP Ratio
(Note)
AllowsyoutosettheGraphicsRatio.(Default:Auto)
& AVX Disable
(Note)
Allows you to disable the AVX instruction sets on a CPU that supports AVX. (Default: Auto)
& AVX512 Disable
(Note)
Allows you to disable the AVX-512 instruction sets on a CPU that supports AVX-512. (Default: Auto)
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
2-5 Tweaker
- 31 -
