RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following
describes the states of the LAN port LEDs.
(Note) ToenabletheQ-FlashPlusfunctionpleasevisitthe"UniqueFeatures"webpageofGIGABYTE's
website.
USB 3.2 Gen 2 Type-A Port (Red) (Q-Flash Plus Port)
TheUSB3.2Gen2portsupportstheUSB3.2Gen2specicationandiscompatibletotheUSB3.2Gen1
andUSB2.0specication.UsethisportforUSBdevices.BeforeusingQ-FlashPlus
(Note)
, make sure to
inserttheUSBashdriveintothisportrst.
USB Type-C
®
Port
ThereversibleUSBportsupportstheUSB3.2Gen2x2specicationandiscompatibletotheUSB3.2
Gen2,USB3.2Gen1,andUSB2.0specications.UsethisportforUSBdevices.
Center/Subwoofer Speaker Out (Orange)
Use this audio jack to connect center/subwoofer speakers.
Rear Speaker Out (Black)
Use this audio jack to connect rear speakers.
Side Speaker Out (Gray)
Use this audio jack to connect side speakers.
Line In (Blue)
The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out/Front Speaker Out (Green)
The line out jack. This jack supports audio amplifying function. For better sound quality, it is recommended
that you connect your headphone/speaker to this jack (actual effects may vary by the device being used).
Mic In (Pink)
The Mic in jack.

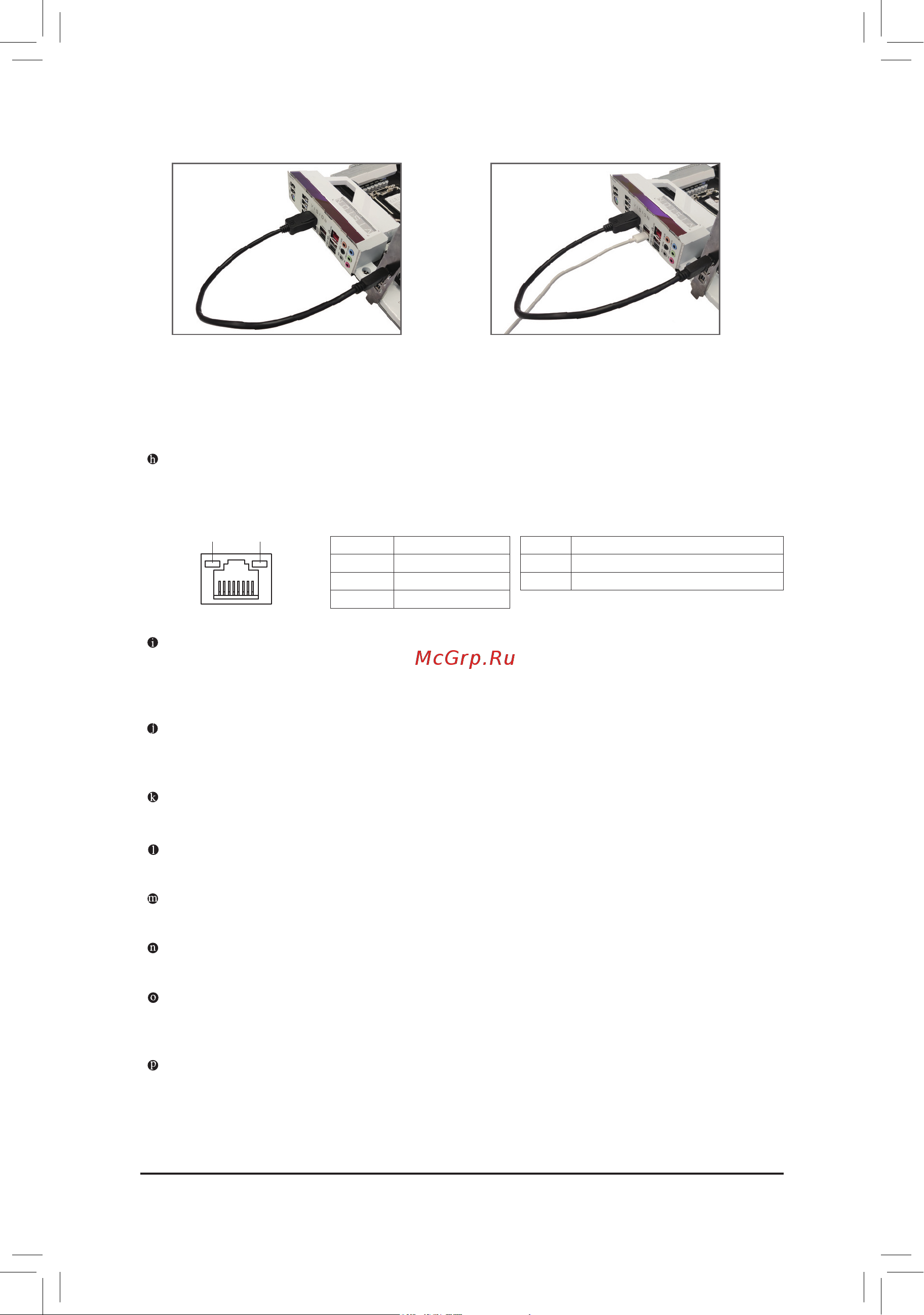

Follow the steps below to install the USB Type-C
®
or DisplayPort devices:
Step 1:
Connect your DisplayPort cable or Mini-
DisplayPort cable (purchased separately) from
the graphics card to the DisplayPort In port on
the back panel.
Step 2:
Then connect the USB Type-C
®
or DisplayPort
devices to USB Type-C
®
port to complete.
Activity LED
Connection/
Speed LED
LAN Port
Connection/Speed LED:
State Description
Green 2.5 Gbps data rate
Orange 1 Gbps data rate
Off 100 Mbps data rate
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
On No data transmission or receiving is occurring
- 14 -
