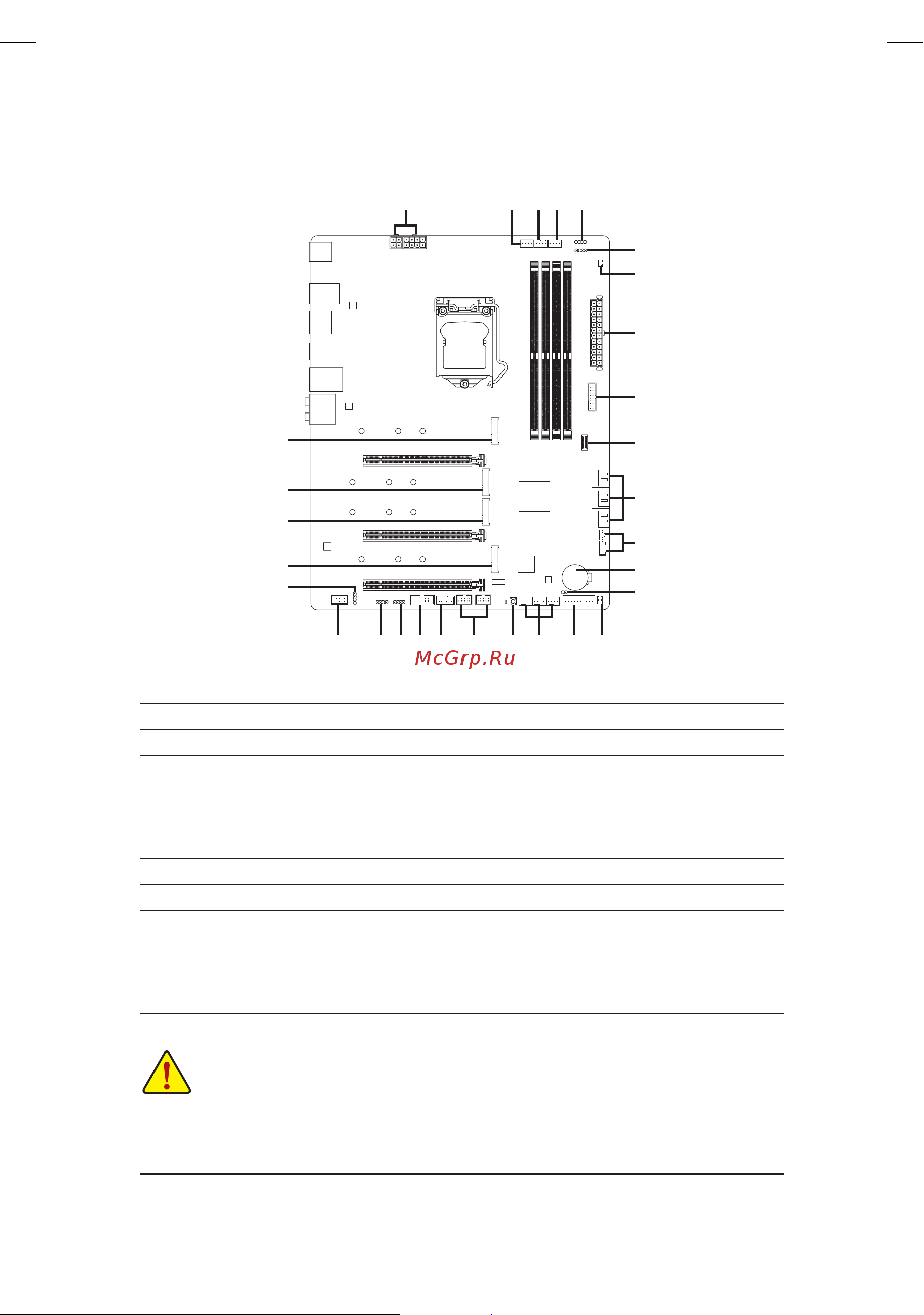

1-7 Internal Connectors
Readthefollowingguidelinesbeforeconnectingexternaldevices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V_2X2/ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3/4
5) CPU_OPT
6) LED_C3/LED_C4
7) D_LED1/D_LED2
8) SATA3 0/1/2/3/4/5
9) M2A_CPU/M2B_CPU/M2C_CPU/M2P_SB
10) F_ PANEL
11) F_AUDIO
12) SPDIF_O
13) F_U32
14) F_U320G
15) F_USB1/F_USB2
16) COM
17) SPI_TPM
18) THB_C1/THB_C2
19) CLR_CMOS
20) BAT
21) CPU/DRAM/VGA/BOOT
22) QFLASH_PLUS
23) NOISE_SENSOR
10 21
13
2
23
7
8
18
14
22 415711 6 17
1
16
19
20
9
9
9
9
12
3 4 65
- 16 -
