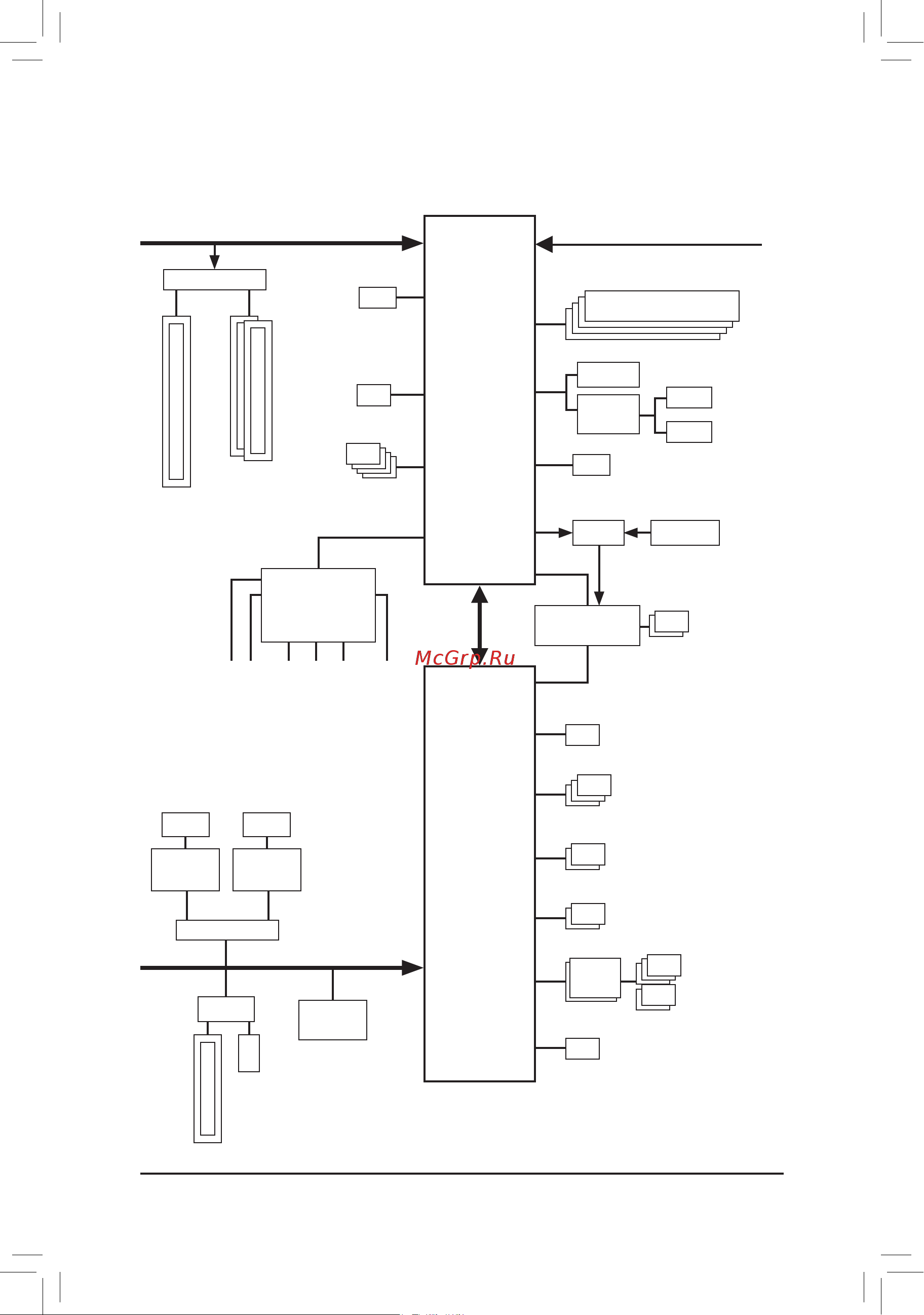

B550 VISION D Motherboard Block Diagram
AMD Socket
AM4 CPU
CPU CLK+/- (100~500 MHz)
PCI Express 4.0/3.0 Bus
PCIe 3.0 x4
M.2 WIFI
Module
3 SATA 6Gb/s
(SATA3 0~2)
1 SATA 6Gb/s
(SATA3 3, with SATA DOM Support)
PCI Express 3.0 Bus
Center/Subwoofer
Speaker Out
Line Out
MIC
Line In
S/PDIF Out
RearSpeakerOut
CODEC
5 USB 2.0/1.1
2 USB 3.2 Gen 1
1 USB 2.0/1.1
2 USB 3.2 Gen 2
Type A
4 USB 3.2 Gen 1
AMD B550
x4
HDMI
Switch
1 x PCI Express x4
or
USB 2.0
Hub
1 M.2 Socket 3
(M2A_CPU)
LPC
Bus
TPM
iTE
®
Super I/O
SPI
Bus
BIOS
Switch
x16
1 PCI Express x16
or
DDR43200/2933/2667/2400/2133MHz
1 M.2 Socket 3
(M2B_SB)
DP-IN
Switch
COM
PS/2 Keyboard/Mouse
Intel
®
Thunderbolt
™
3 Controller
2 USB Type-C
™
, with
USB 3.2 Gen 2 support
2 PCI Express x8
x1x1
Switch
LAN LAN
RJ45
Intel
®
GbE
LAN
RJ45
Intel
®
GbE
LAN
