4 Wall Mounting - Solid Concrete

and Concrete Block

[02]

[07]

75 mm

(3 in.)

[08]

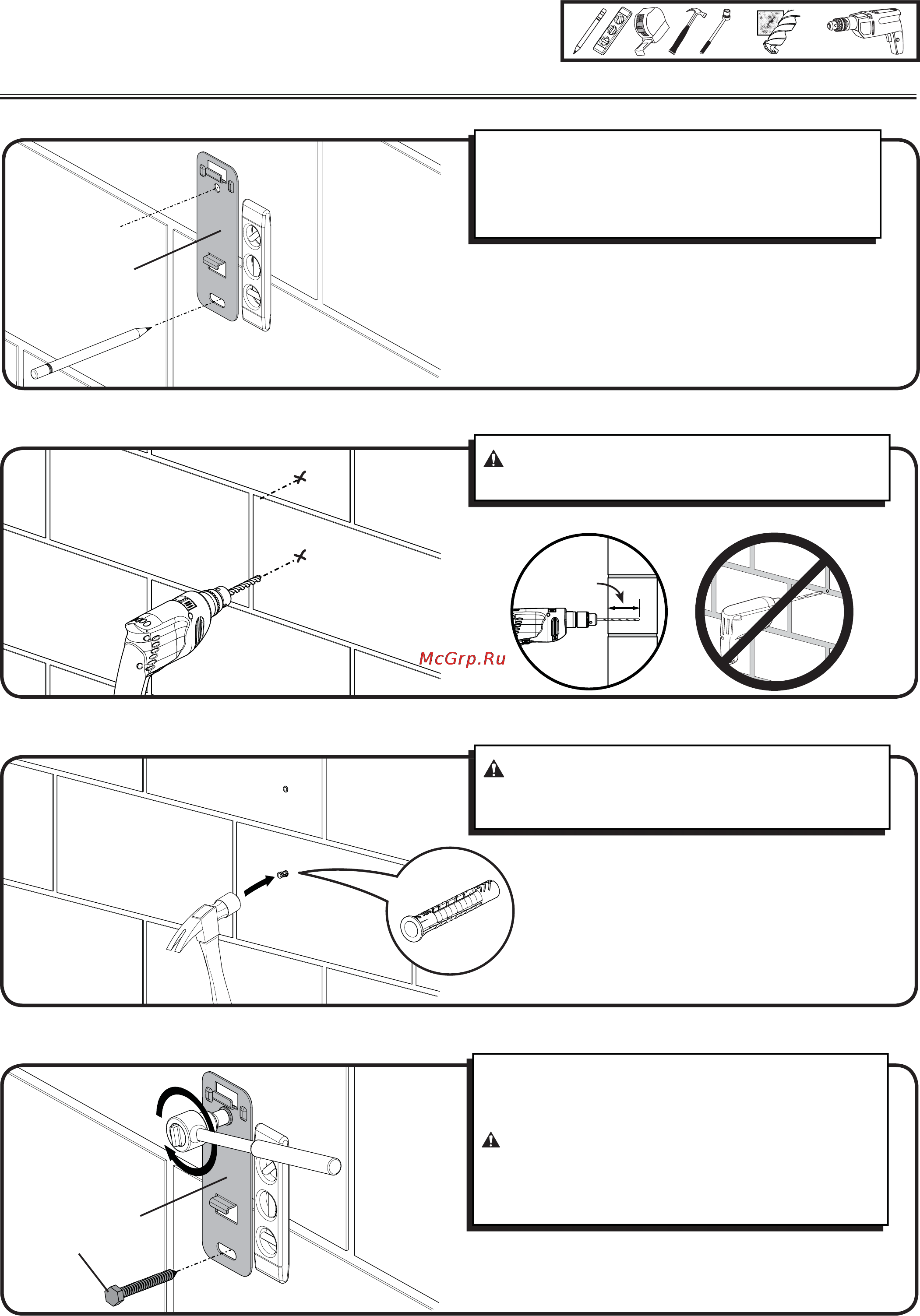

Level wall plate [02] and mark the hole locations.

 Mount wall plate [02] directly onto the concrete

surface.

 Minimum solid concrete thickness: 8 in.

CAUTION:

Pilot holes MUST be drilled to a depth of

75 mm (3 in.), using a 10 mm (⁄ in.) diameter drill bit.

CAUTION: To avoid potential injuries or property

damage be sure the anchors [08] seat  ush with the

concrete surface.

Place the wall plate [02] against the wall. Tighten lag bolts

[07] only until they are pulled  rmly against the wall plate

[02].

CAUTION:

Improper use could reduce the holding

power of the lag bolt. To avoid potential injuries or property

damage:

DO NOT over-tighten the lag bolts [07].

10 mm

(3/8 in.)

13mm

(1/2 in.)
