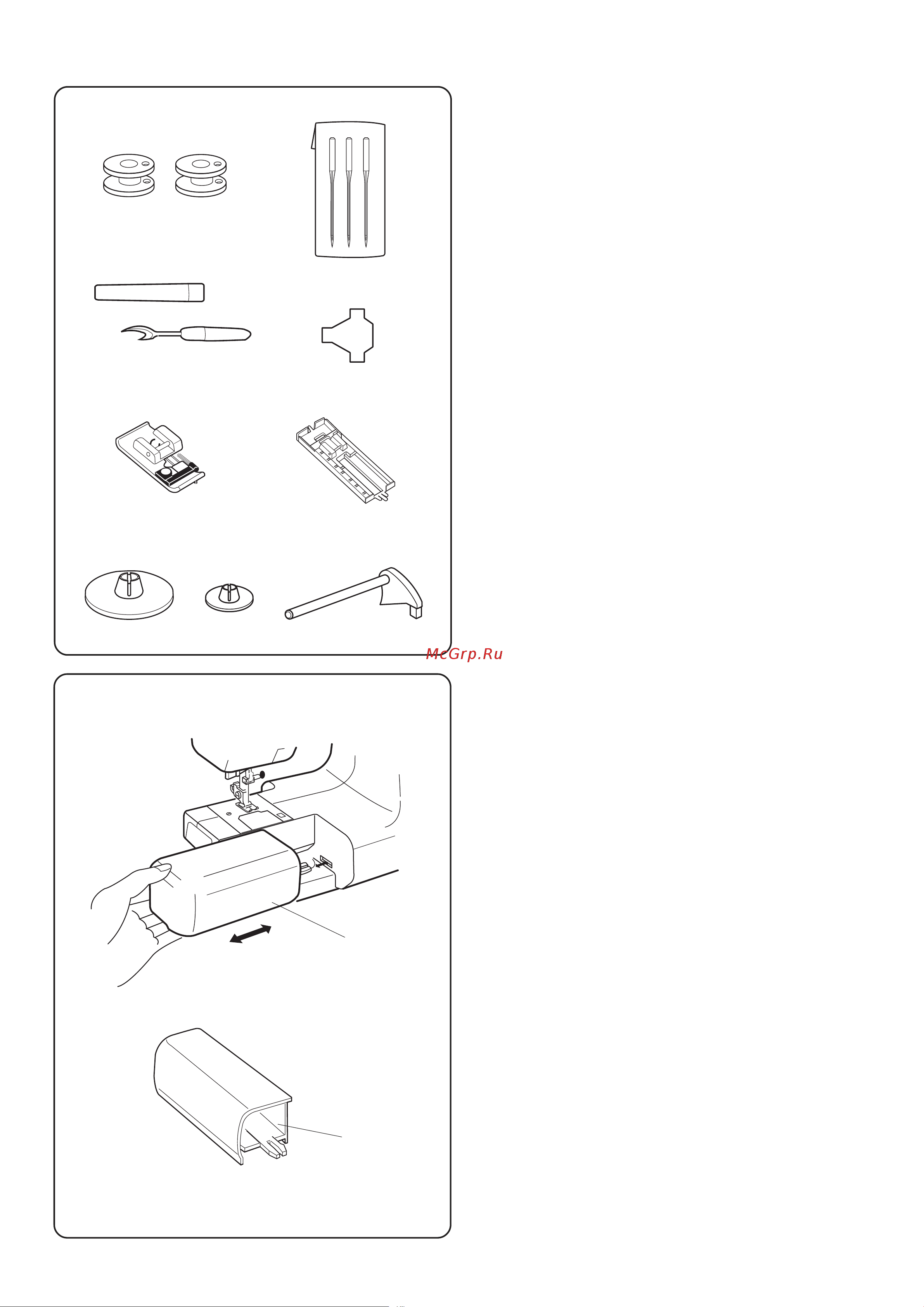

Стандартные аксессуары
Аксессуары хранятся в выдвижном столике.
1 Шпульки
2 Иглы
3 Вспарыватель
4 Отвертка
5 Оверлочная лапка
6 Рамка для петли
7 Держатель катушки (большой)
8 Держатель катушки (малый)
9 Катушечный стержень
• Свободный рукав
Съемный столик увеличивает рабочую
поверхность и легко снимается для шитья
по кругу.
Снятие столика:
Вытяните столик из машины, как показано
на рисунке.
Установка столика:
Задвиньте столик обратно, слегка нажимая
на него, чтобы столик пристегнулся к машине.
1 Съемный столик
2 Ящик для мелких аксессуаров
4
q
e
t
u
w
r
y
i
q
w
o
Standard Accessories and Storage Place
The following accessories are stored in the extension
table.
q Bobbins
w Needles
e Seam ripper
r Screwdriver
t Overedge foot
y Buttonhole foot
u Spool holder (large)
i Spool holder (small)
o Spool pin
• Free arm
The extension table provides an extended sewing area
and can be easily removed for free arm sewing.
Detaching the table:
Pull the table away from the machine, as illustrated.
Attaching the table:
Push the extension table until it snaps into the
machine.
q
Extension table
w Accessory storage box ( for small parts)
5
Connecting Machine to Power Supply
Before connecting the power cord, make sure the voltage
and frequency shown on the machine conform to your
electrical power.
q
Machine plug
w Machine socket
e Power supply plug
r Electrical outlet
t Power switch
z Turn off the power switch t.
x Insert the machine plug q into the machine
socket
w .
c Insert the power supply plug e into the
electrical outlet
r .
v Turn the power switch t to turn on the power and
sewing light.
Controlling Sewing Speed
• Foot control
Sewing speed can be varied by the foot control.
The harder you press on the control, the faster the
machine runs.
q
Foot control for 120V
w Foot control for 240V
x
c
v
t
r
e
q
w
q
w
SECTION II GETTING READY TO SEW
z
Operating Instructions:
Foot Controller Model YC-482J or TJC-150 is used
with Sewing Machine Model 661.
This appliance has a polarized plug (one blade wider
than the other). To reduce the risk of electric shock, this
plug is intended to fit in a polarized outlet only one
way. If the plug does not fit in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician
to install the proper outlet. Do not modify the plug in
any way.
