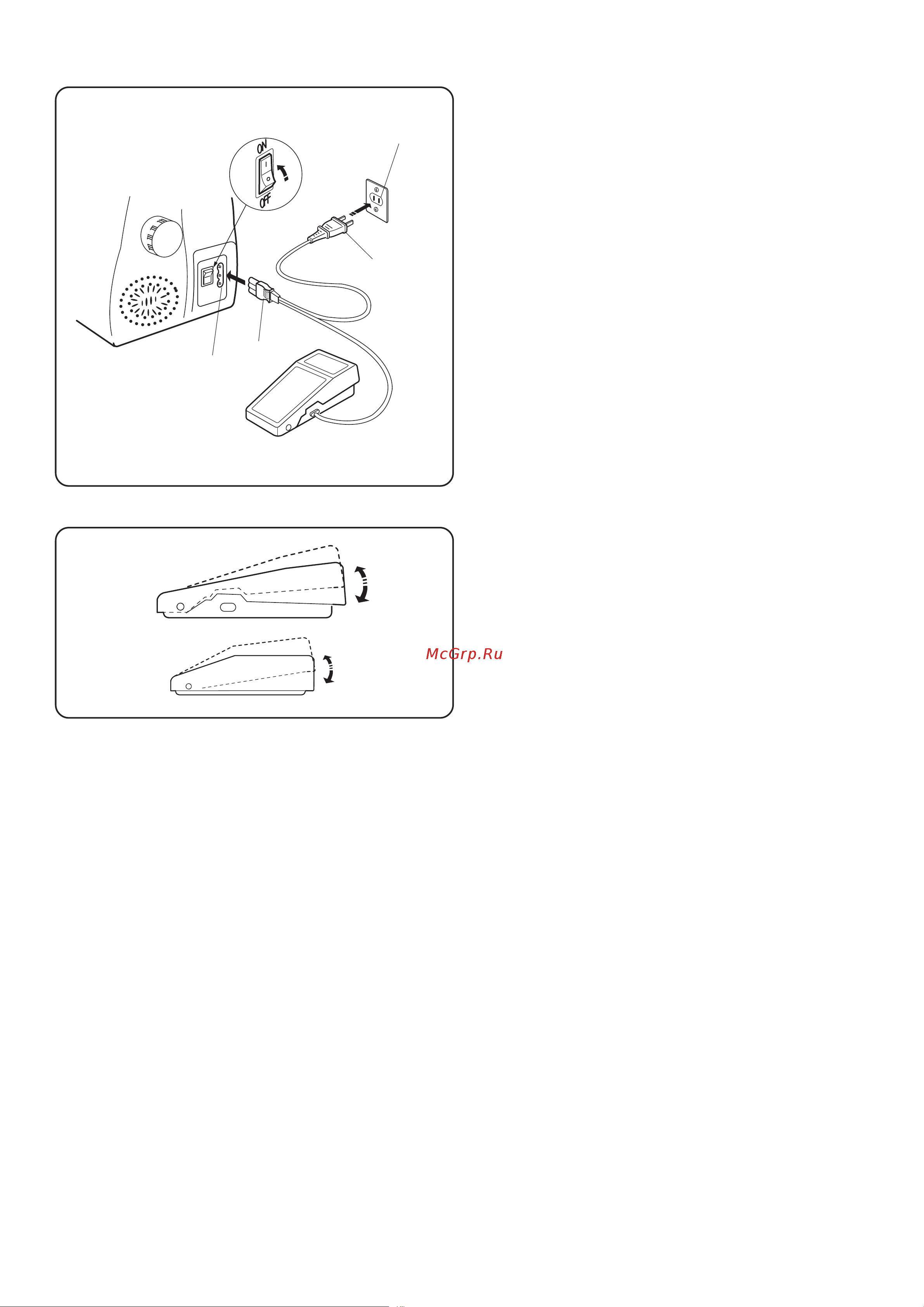

Подключение питания к машине
Перед подключением шнура, убедитесь,
что напряжение и частота Вашей сети
соответствуют напряжению и частоте,
указанным на машине.
1 Вилка педали
2 Гнездо машины
3 Электрическая вилка
4 Электрическая розетка
5 Выключатель питания
1 Выключите питание 5.
2 Вставьте вилку педали 1 в гнездо 2.
3 Вставьте электрическую вилку 3
в электрическую розетку 4.
4 Нажмите на выключатель 5: включите
питание и свет.
Контроль скорости шитья
• Педаль
Скорость шитья можно регулировать педалью.
Чем сильнее нажимать на педаль, тем быстрее
шьет машина.
1 Педаль 120 В
2 Педаль 220-240 В
5
Connecting Machine to Power Supply
Before connecting the power cord, make sure the voltage
and frequency shown on the machine conform to your
electrical power.
q
Machine plug
w Machine socket
e Power supply plug
r Electrical outlet
t Power switch
z Turn off the power switch t.
x Insert the machine plug q into the machine
socket
w .
c Insert the power supply plug e into the
electrical outlet
r .
v Turn the power switch t to turn on the power and
sewing light.
Controlling Sewing Speed
• Foot control
Sewing speed can be varied by the foot control.
The harder you press on the control, the faster the
machine runs.
q
Foot control for 120V
w Foot control for 240V
x
c
v
t
r
e
q
w
q
w
SECTION II GETTING READY TO SEW
z
Operating Instructions:
Foot Controller Model YC-482J or TJC-150 is used
with Sewing Machine Model 661.
This appliance has a polarized plug (one blade wider
than the other). To reduce the risk of electric shock, this
plug is intended to fit in a polarized outlet only one
way. If the plug does not fit in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician
to install the proper outlet. Do not modify the plug in
any way.
РАЗДЕЛ
ll
. ПОДГОТОВКА К ШИТЬЮ
