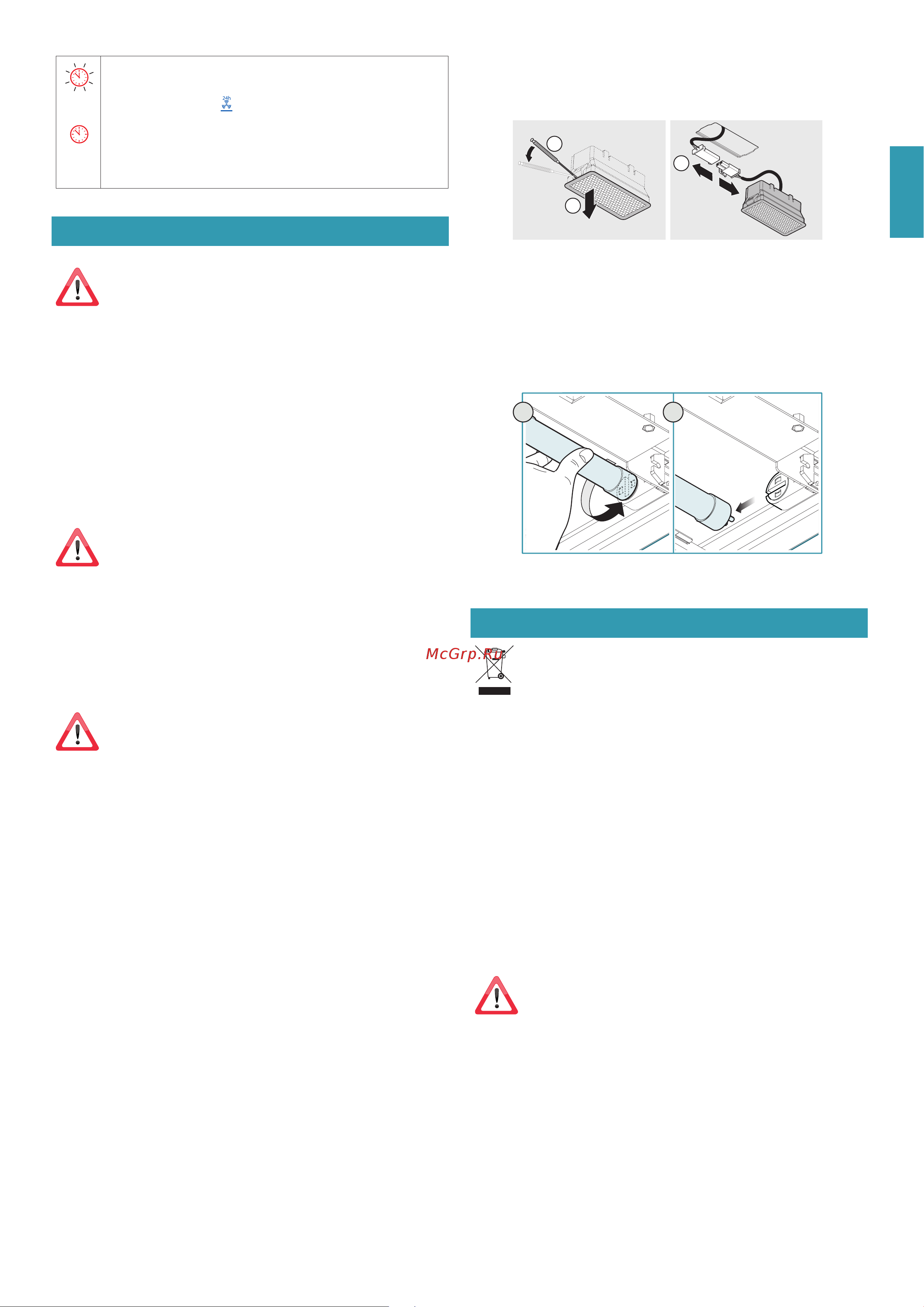

29
ENGLISH
MAINTENANCE
Before cleaning or carrying out maintenance operations, disconnect the
equipment by removing the plug or switching o the main switch.
Do not use detergents containing abrasive, acidic or corrosive substances
or abrasive cloths.
Regular maintenance guarantees proper operation and performance over time.
Special attention is to be paid to the metal anti-grease lters : frequent cleaning of the
filters and their supports ensures that no flammable grease is accumulated.
CLEANING OF EXTERNAL SURFACES
You are advised to clean the external surfaces of the hood at least once every 15 days
to
prevent oily substances and grease from sticking to them. To clean the brushed stainless
steel hood, the Manufacturer recommends using "Magic Steel" wipes.
Alternatively and for all the other types of surfaces, it can be cleaned using a damp cloth,
slightly moistened with mild, liquid detergent or denatured alcohol.
Complete cleaning by rinsing well and drying with soft cloths.
Do not use too much moisture or water around the push button control
panel and lighting devices in order to prevent humidity from reaching
electronic parts.
The glass panels can only be cleaned with specific, non-corrosive or non-abrasive deter-
gents using a soft cloth.
The Manufacturer declines all responsibility for failure to comply with these instructions.
CLEANING OF INTERNAL SURFACES
Do not clean electrical parts, or parts related to the motor inside the hood,
with liquids or solvents.
For the internal metal parts, see the previous paragraph.
METAL ANTI-GREASE FILTERS
It is advised to frequently wash the metal filters (at least once a month) leaving them to
soak in boiling water and cleaning solution for 1 hour, taking care not to bend them.
Do not use corrosive, acid or alkaline detergents.
Rinse them well and wait for them to be completely dry before reassembling them.
Washing in a dishwasher is permitted, however, it may cause the filter material to darken: to
reduce the possibility of this problem from happening, use low-temperature washes (55°C
max.).
To extract and insert the metal anti-grease filters see the assembly instructions.
HP/ACTIVE CARBON FILTERS (optional)
These filters retain the odours in the air that passes through them. The purified air is recir-
culated into the environment.
The HP active carbon filters
reactivate
by washing them in the dishwasher with a normal
detergent at a maximum temperature of 65°C and passing them in the oven at 80°C for
20 minutes.
The maximum duration of the filter is 2/3 years with a maximum of 10 washings per year.
LIGHTING (STILO e PLANE)
The range hood is equipped with high efficiency, low consumption LED spotlights with an
extremely long life-span under normal use conditions.
Should the LED spotlight need to be replaced, proceed as shown in the figure.
12V
3
1
2
LIGHTING (VELA)
The range hood is equipped with high efficiency, low consumption LED with an extremely
long life-span under normal use conditions.
Should the LED spotlight need to be replaced, contact the service centre.
LIGHTING (HORIZON e LUMINA)
The hood has fluorescent lamp lighting.
If the lamp ever needs to be replaced, proceed as shown in the figure.
1 2
DISPOSAL AFTER END OF USEFUL LIFE
The crossed-out trash or refuse bin symbol on the appliance means that the
product is WEEE, i.e. “Waste electrical and electronic equipment'', accordingly it
must not be disposed of with regular unsorted waste (i.e. with ''mixed house-
hold waste''), but it must be disposed of separately so that it can undergo specific
processing for its re-use, or a specific treatment, to remove and safely dispose of any sub-
stances that may be harmful to the environment and remove the raw materials that can be
recycled. Proper disposal of these products contributes to saving valuable resources and
avoid potential negative effects on personal health and the environment, which may be
caused by inappropriate disposal of waste.
You are kindly asked to contact your local authorities for further information regarding the
designated waste collection points nearest to you. Penalties for improper disposal of such
waste can be applied in compliance with national regulations.
INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES
The EU WEEE Directive was implemented differently in each country, accordingly, if you wish
to dispose of this appliance we suggest contacting your local authorities or dealer to find
out what the correct method of disposal is.
INFORMATION ON DISPOSAL IN NONEUROPEAN UNION COUNTRIES
The crossed-out trash or refuse bin symbol is only valid in the European Union: if you wish
to dispose of this appliance in other countries, we suggest contacting your local authorities
or dealer to find out what the correct method of disposal is.
WARNING!
The Manufacturer reserves the right to make changes to the equipment at any time and
without prior notice. Printing, translation and reproduction, even partial, of this manual are
bound by the Manufacturer's authorisation.
Technical information, graphic representations and specifications in this manual are for in-
formation purposes and cannot be divulged.
This manual is written in Italian. The Manufacturer is not responsible for any transcription
or translation errors.
TIMER (Red LED flashing)
Auto switch-off after 15 min.
The function deactivates (red LED off) if:
- The motor turns off (key
).
- The speed is changed.
FILTER ALARM (red LED steady on)
Anti-grease filter maintenance after approximately 30 hours of operation.
Press the meter for 3 seconds to reset.
