Aten CL5708I [181/255] Ping host

Chapter 12. Maintenance

165

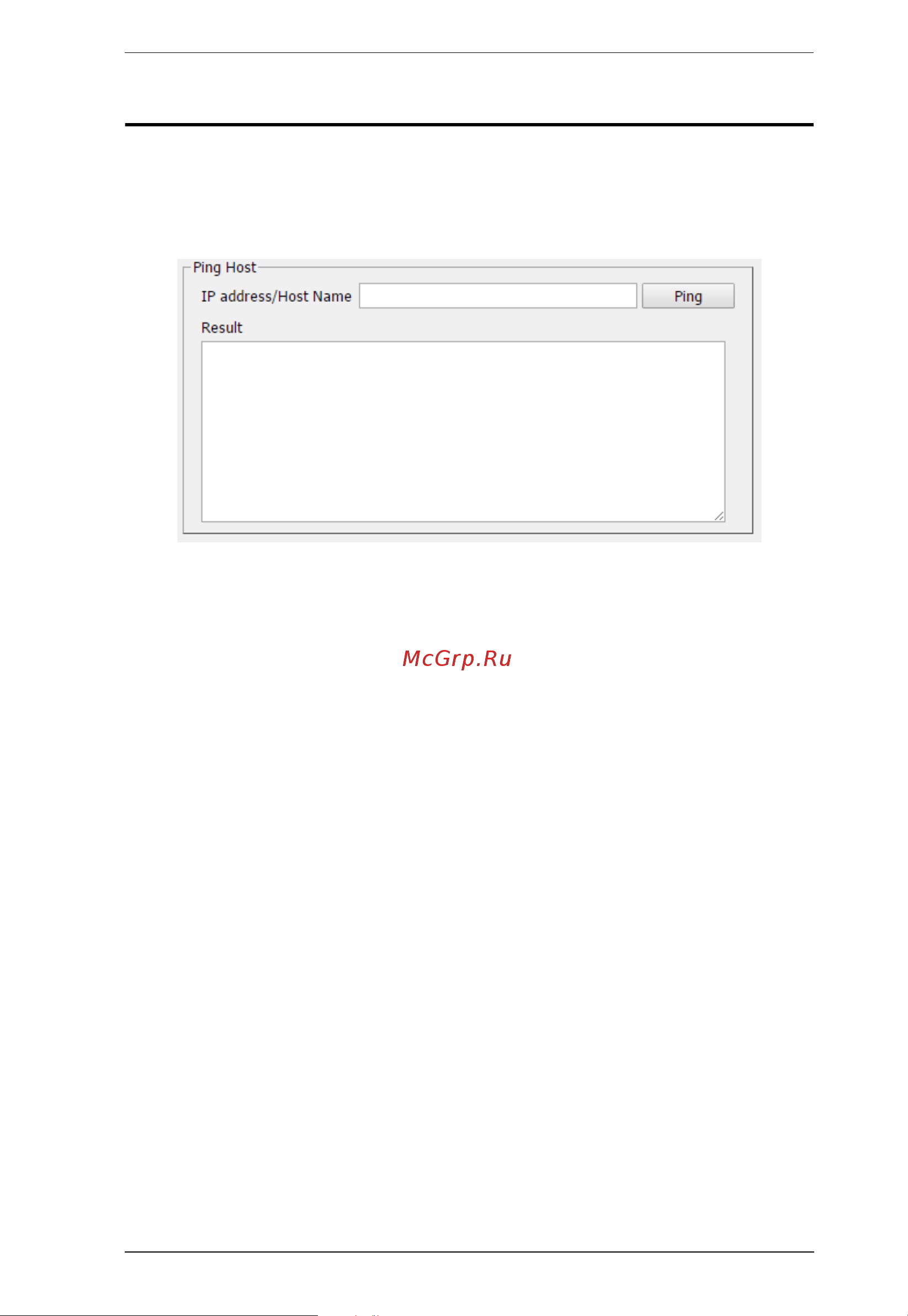

Ping Host

The Ping Host page allows you to ping a device to check its connection status

on the network. Enter an IP address or Host Name in the text box and then click

Ping to ping a device.
