Aten CL5708I [202/255] The log server main screen

CL5708I / CL5716I User Manual

186

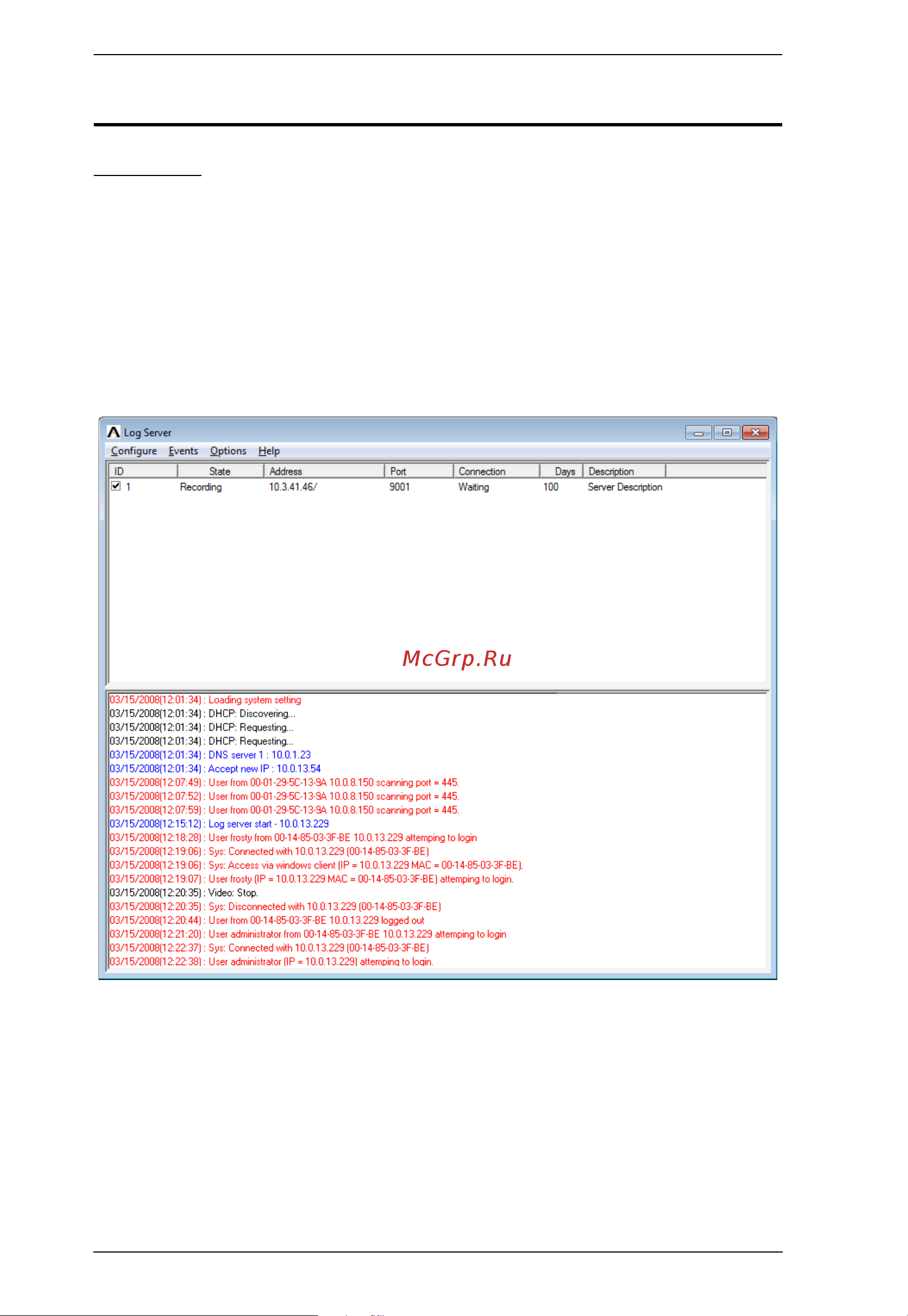

The Log Server Main Screen

Overview

The Log Server Main Screen is divided into two main panels.

 The upper (List) panel lists all of the units that have been selected for the

Log Server to track (see Configure, page 181).

 The lower (Event) panel displays the tick information for the currently

selected unit. (If there are more than one unit, the selected unit is the one

that is highlighted).

 To select a unit in the list, simply click on it.
