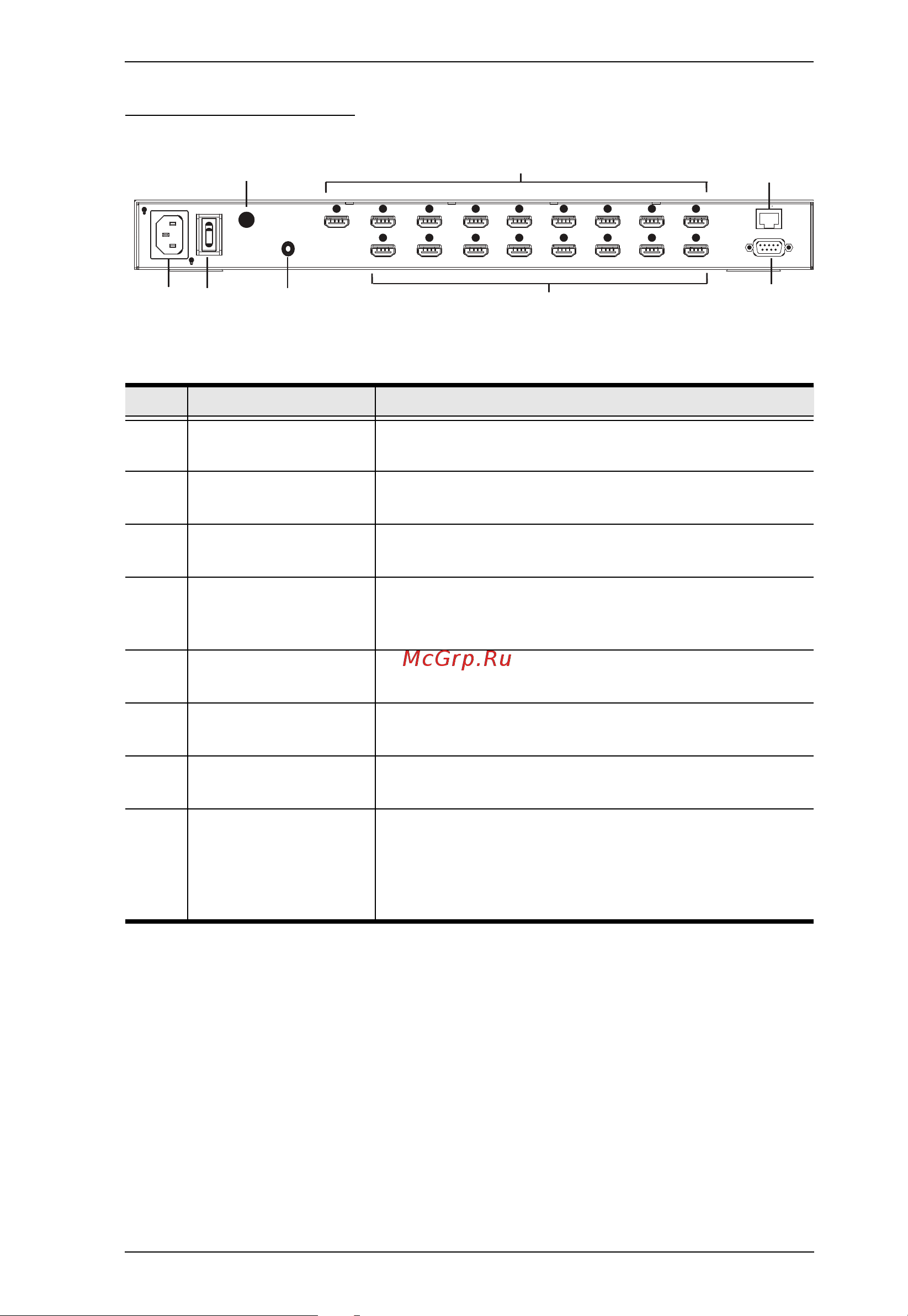

Chapter 1. Introduction
9
VM6809H Rear View
No. Component Description
1 power socket This is a standard 3-pin AC power socket. The power
cord from an AC source plugs in here.
2 power switch This is a standard rocker switch that powers the unit
on and off.
3 grounding terminal The grounding wire attaches here. See Grounding,
page 13, for further details.
4 Audio output port The audio output port allows you to extract HDMI
audio to stereo audio. The cable from a speaker plugs
in here.
5 HDMI input ports The cables from your HDMI source devices plug into
these ports.
6 HDMI output ports The cables from your HDMI display devices plug into
these ports.
7 RS-232 serial port Connect a computer or high-end system controller via
this serial port.
8 Ethernet port In order to access the VM6809H’s Browser Graphical
User Interface (GUI), the VM6809H must be
connected to your network. The cable that connects
the VM6809H to your LAN plugs in here. See Cable
Connection, page 14, for further details
