Chapter 3. Front Panel Configuration

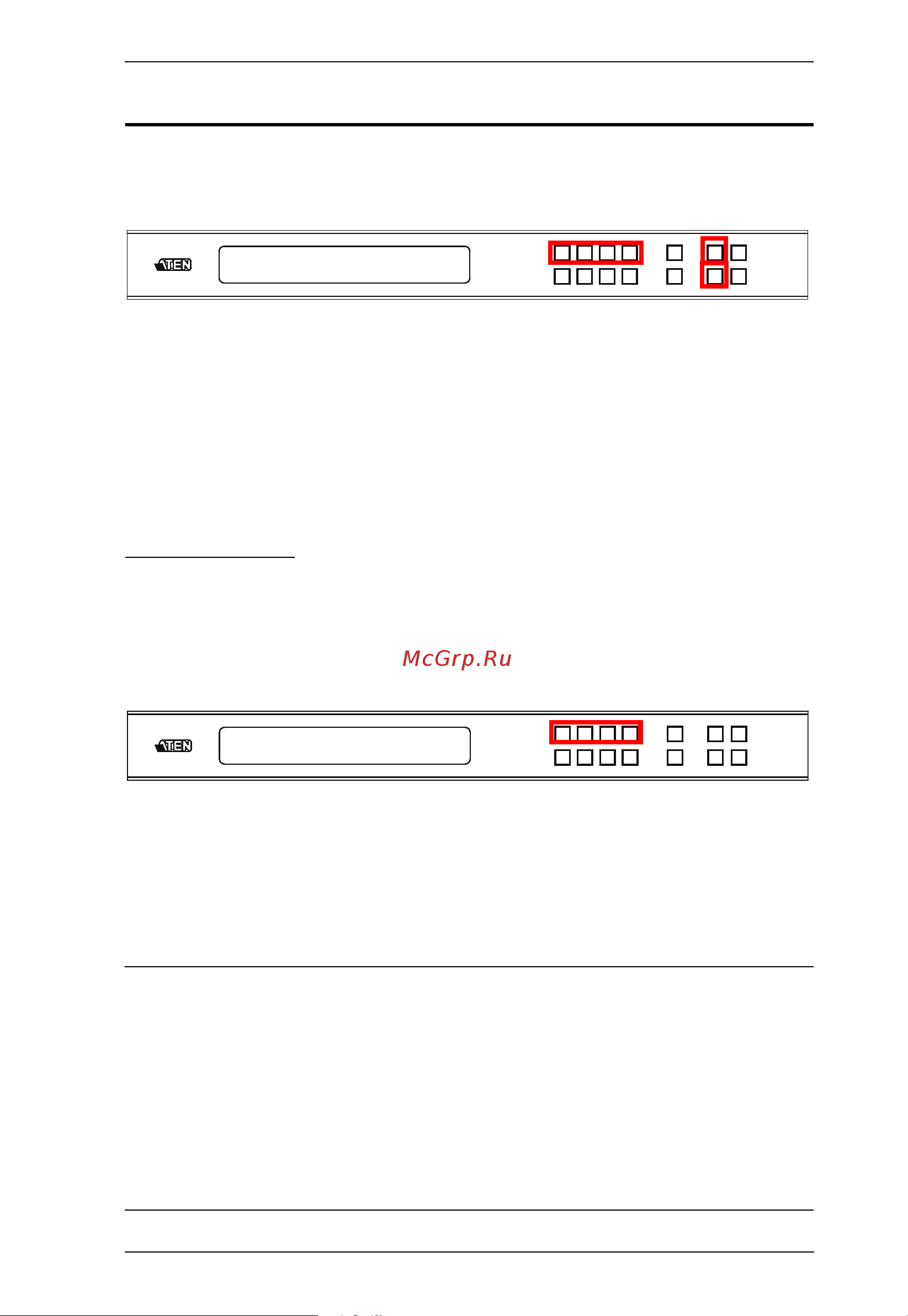

Main Screen

The Main Screen shows the Input ports (1-4 or 1-8) in the top row, which are

tied to the Output ports shown in sequential order (1-4 or 1-9) at the bottom

row.

 The front panel pushbutton label corresponds to the Input ports (1-4 or 1-

8) and Output ports (1-4 or 1-9) on the unit’s rear panel.

 Use the Menu pushbutton to view the LCD Menu (see LCD Menu

Organization, page 21).

 Use the Profile pushbutton to switch between profile connections (see

Profiles, page 45).

Port Switching

From the Main Screen, users can configure the Input-to-Output port

connections to associate an Input source device to an Output display.

Input Assignment

Use the Input Port pushbuttons to select the Input port you want to configure.

To assign an input to one or more output displays, do the following:

1. Press an Input pushbutton. The outputs already assigned with this input

light blue.

2. To assign this input to more outputs, press the Output pushbutton. To de-

select an output, press the pushbutton again.

Note:

 To deselect an input, press the pushbutton again. The pushbuttons dims.

 Input ports that are not assigned to any output will not be shown in the

LCD screen.

 Pressing the Cancel pushbutton once stops the Input Port Selection

operation and the LCD displays the active setting. Pressing the Cancel

pushbutton again turns all LEDs off.

 After 10 seconds of inactivity, all the LEDs turn off.

INPUT 1 2 3 4

OUTPUT 1 2 3 4

INPUT 1 2 3 4

OUTPUT 1 2 3 4
