ipv6 nd other-config-flag

Set the flag representing whether information

other than the address information will be

obtained via DHCPv6.

(15) Set the flag representing whether the address information will be obtained via

DHCPv6

3.2.3

IP Configuration Examples

3.2.3.1 Configuration Examples of IPv4

PC2

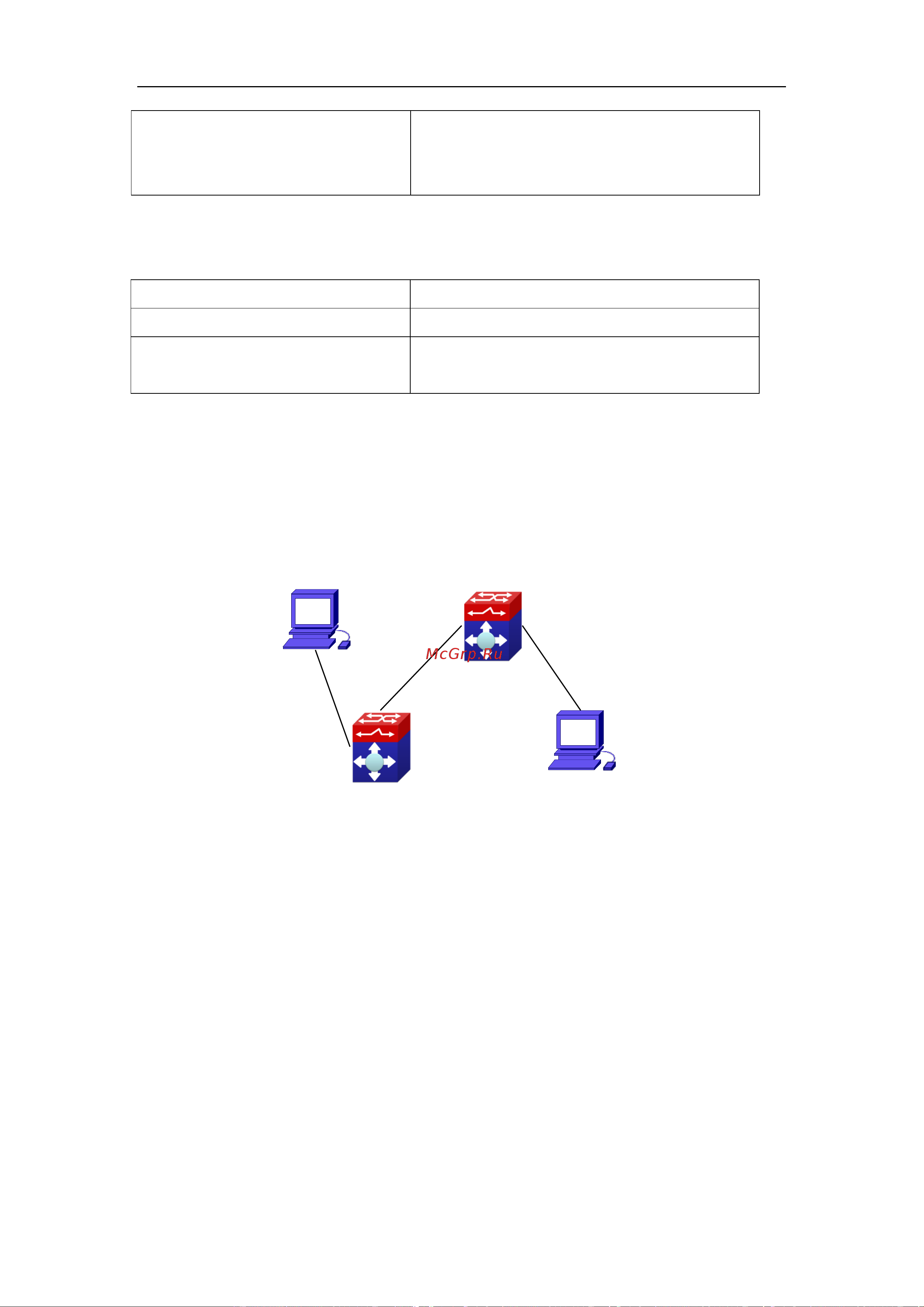

Figure 3-1 IPv4 configuration example

The user’s configuration requirements are: Configure IP address of different network

segments on Switch1 and Switch2, configure static routing and validate accessibility using

ping function.

Configuration Description:

1. Configure two VLANs on Switch1, namely, VLAN1 and VLAN2.

2. Configure IPv4 address 192.168.1.1 255.255.255.0 in VLAN1 of Switch1, and

configure IPv4 address 192.168.2.1 255.255.255.0 in VLAN2.

3. Configure two VLANs on Switch2, respectively VLAN2 and VLAN3.

4. Configure IPv4 address 192.168.2.2 255.255.255.0 in VLAN2 of Switch2, and

configure IPv4 address 192.168.3.1 255.255.255.0 in VLAN3.

5. The IPv4 address of PC1 is 192.168.1.100 255.255.255.0, and the IPv4 address

of PC2 is 192.168.3.100 255.255.255.0.

PC1

Switch2

Switch1

Command

Explanation

Interface Configuration Mode

ipv6 nd managed-config-flag

Set the flag representing whether the address

information will be obtained via DHCPv6.
