# Set the access control mode on the port as portbased.

Switch(Config-If-Ethernet1/0/2)#dot1x port-method portbased

# Set the access control mode on the port as auto.

Switch(Config-If-Ethernet1/0/2)#dot1x port-control auto

# Set the port’s Guest VLAN as 100.

Switch(Config-If-Ethernet1/0/2)#dot1x guest-vlan 100

Switch(Config-If-Ethernet1/0/2)#exit

Using the command of show running-config or show interface ethernet1/0/2,

users can check the configuration of Guest VLAN. When there is no online user, no failed

user authentication or no user gets offline successfully, and more authentication-triggering

messages (EAP-Request/Identity) are sent than the upper limit defined, users can check

whether the Guest VLAN configured on the port takes effect with the command show

vlan id 100.

6.2.3.2 Examples of IPv4 Radius Applications

10.1.1.2

10.1.1.1 Radius Server

10.1.1.3

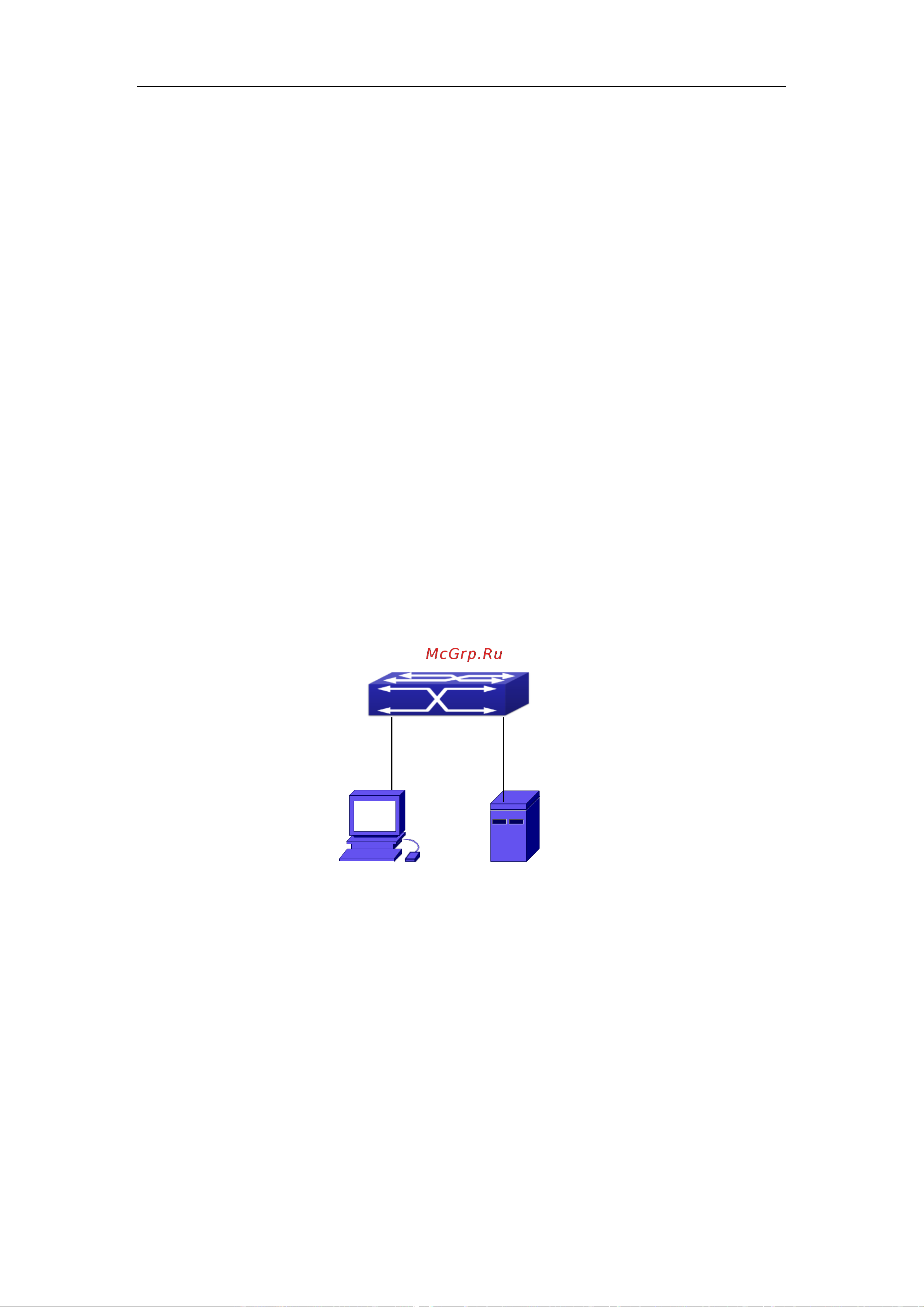

Figure 6-16 IEEE 802.1x Configuration Example Topology

The PC is connecting to port 1/0/2 of the switch; IEEE 802.1x authentication is

enabled on port1/0/2; the access mode is the default MAC-based authentication. The

switch IP address is 10.1.1.2. Any port other than port 1/0/2 is used to connect to RADIUS

authentication server, which has an IP address of 10.1.1.3, and use the default port 1812

for authentication and port 1813 for accounting. IEEE 802.1x authentication client

software is installed on the PC and is used in IEEE 802.1x authentication.

The configuration procedures are listed below:
