Switch>

The user can now enter commands to manage the switch. For a detailed description

for the commands, please refer to the following chapters.

1.1.1.2 In-band Management

In-band management refers to the management by login to the switch using Telnet, or

using HTTP, or using SNMP management software to configure the switch. In-band

management enables management of the switch for some devices attached to the switch.

In the case when in-band management fails due to switch configuration changes, out-of-

band management can be used for configuring and managing the switch.

1.1.1.2.1 Management via Telnet

To manage the switch with Telnet, the following conditions should be met:

1) Switch has an IPv4/IPv6 address configured;

2) The host IP address (Telnet client) and the switch’s VLAN interface IPv4/IPv6

address is in the same network segment;

3) If 2) is not met, Telnet client can connect to an IPv4/IPv6 address of the switch via

other devices, such as a router.

The switch is a Layer 3 switch that can be configured with several IPv4/IPv6

addresses, the configuration method refers to the relative chapter. The following example

assumes the shipment status of the switch where only VLAN1 exists in the system.

The following describes the steps for a Telnet client to connect to the switch’s VLAN1

interface by Telnet(IPV4 address example):

Connected with cable

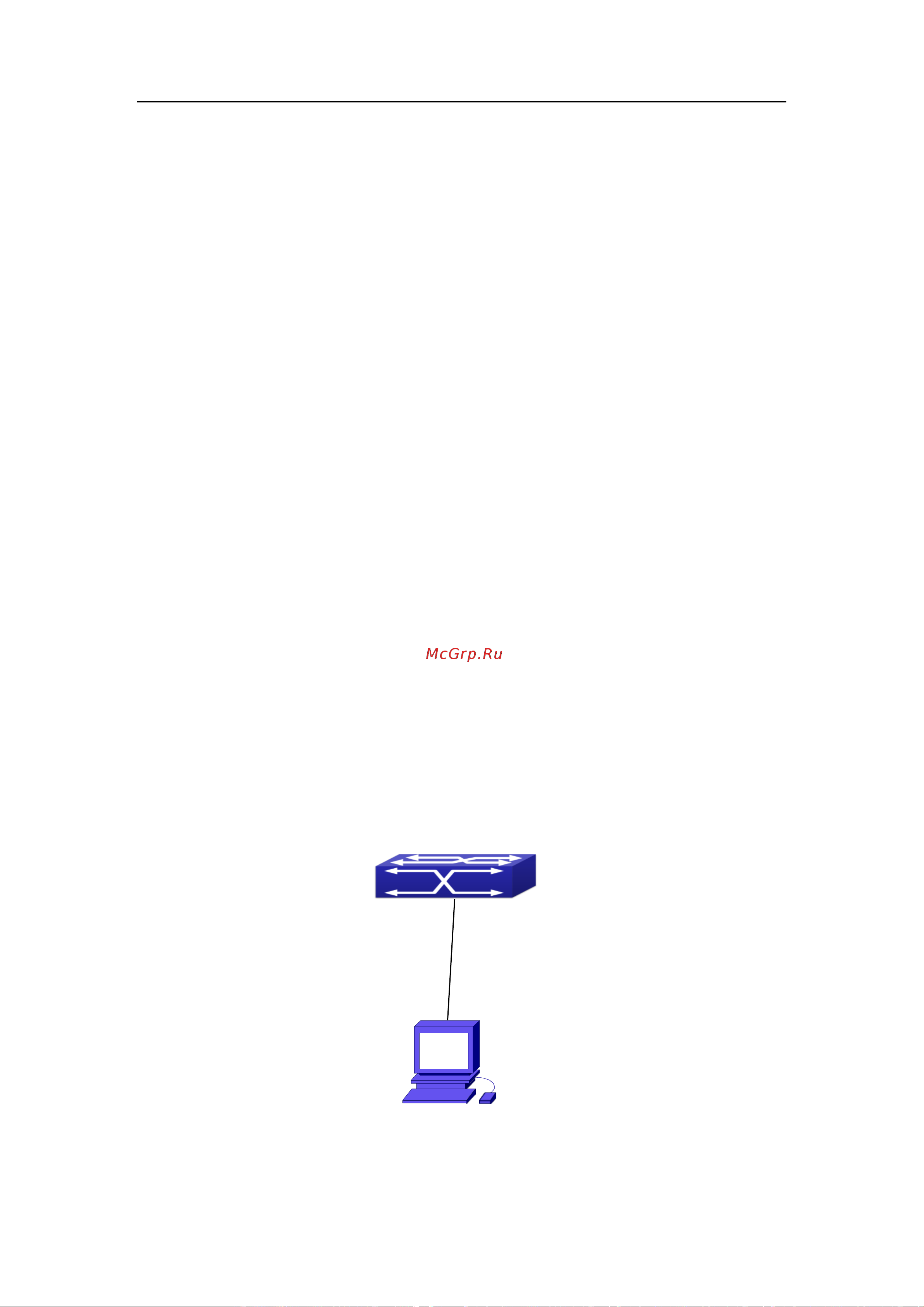

Figure 1-6 Manage the switch by Telnet

Step 1: Configure the IP addresses for the switch and start the Telnet Server function on
