S2989G-24TX Operation Manual

Chapter

Basic

Management

Configuration

1-6

the switch.

First is the configuration of host IP address. This should be within the same network

segment as the switch VLAN1 interface IP address. Suppose the switch VLAN1 interface

IP address is 10.1.128.251/24. Then, a possible host IP address is 10.1.128.252/24. Run

“ping 10.1.128.251” from the host and verify the result, check for reasons if ping failed.

The IP address configuration commands for VLAN1 interface are listed below. Before

in-band management, the switch must be configured with an IP address by out-of-band

management (i.e. Console mode), the configuration commands are as follows (All switch

configuration prompts are assumed to be “Switch” hereafter if not otherwise specified):

Switch>

Switch>enable

Switch#config

Switch(config)#interface vlan 1

Switch(Config-if-Vlan1)#ip address 10.1.128.251 255.255.255.0

Switch(Config-if-Vlan1)#no shutdown

To enable the Telnet Server function, users should type the CLI command telnet-

server enable in the global mode as below:

Switch>enable

Switch#config

Switch(config)# telnet-server enable

Step 2: Run Telnet Client program.

Run Telnet client program included in Windows with the specified Telnet target.

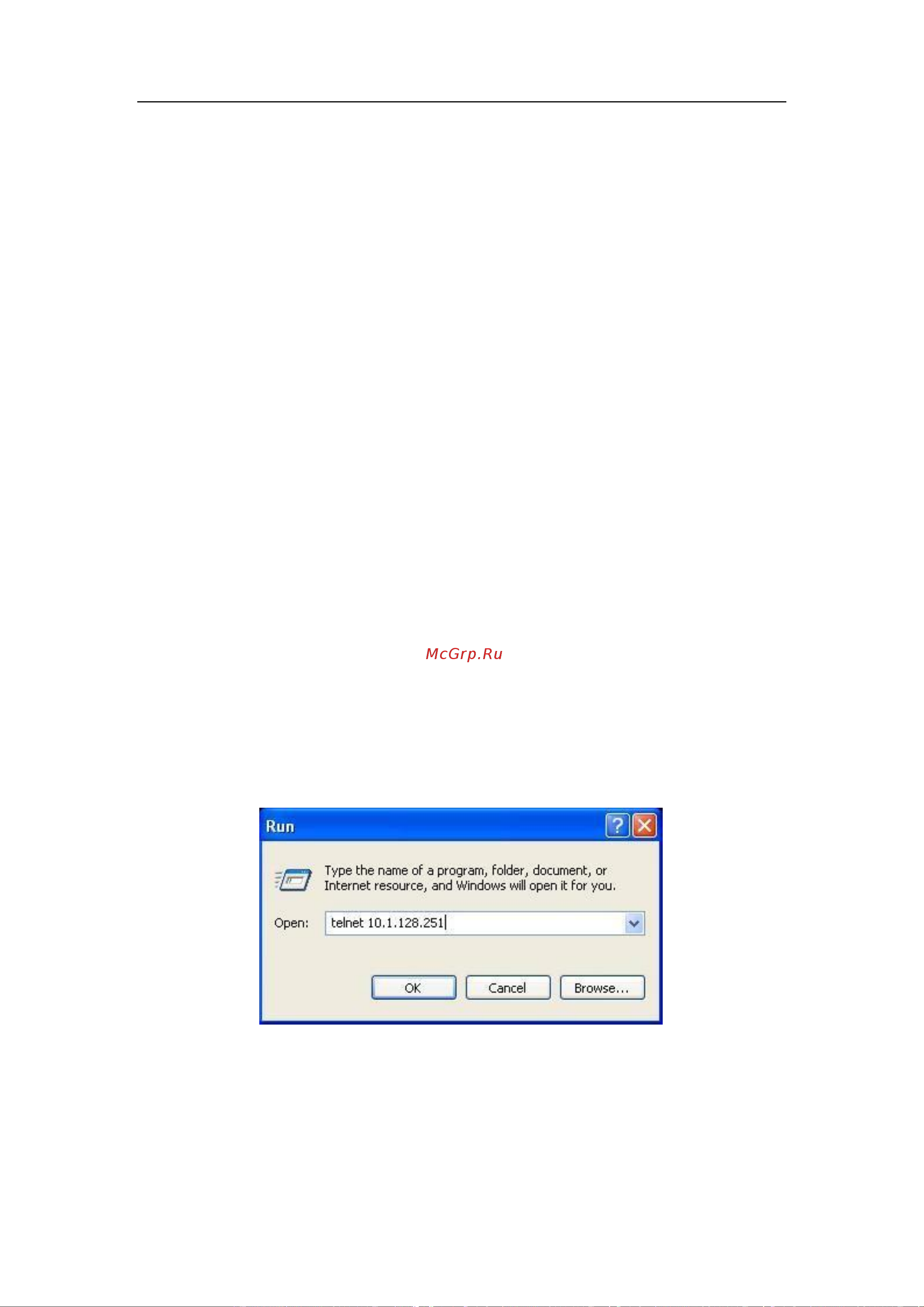

Figure 1-7 Run telnet client program included in Windows

Step 3: Login to the switch.

required, otherwise the switch will reject Telnet access. This is a method to protect the
