Installation
High Performance 10-20k UPS
18
yellow flicker—bypass fault
BAT
Battery indicator: yellow—UPS work in battery mode,
dark—battery is connected, yellow flicker—battery is unconnected
HzA
INPUT
CONVERTE
R
BYPASS
VDC
% A
SETTING
!
A B C
VAC
HzA
OUTPUT
VAC
LOW!
PO
S
NE
G
OVER LOAD!
SHORT
!
EC
O
kVA
kW%
!
LOAD
MODE
VER
Output information
Input information
alarm
Battery
information
Setting
indicator
Load,
version,
alarm code

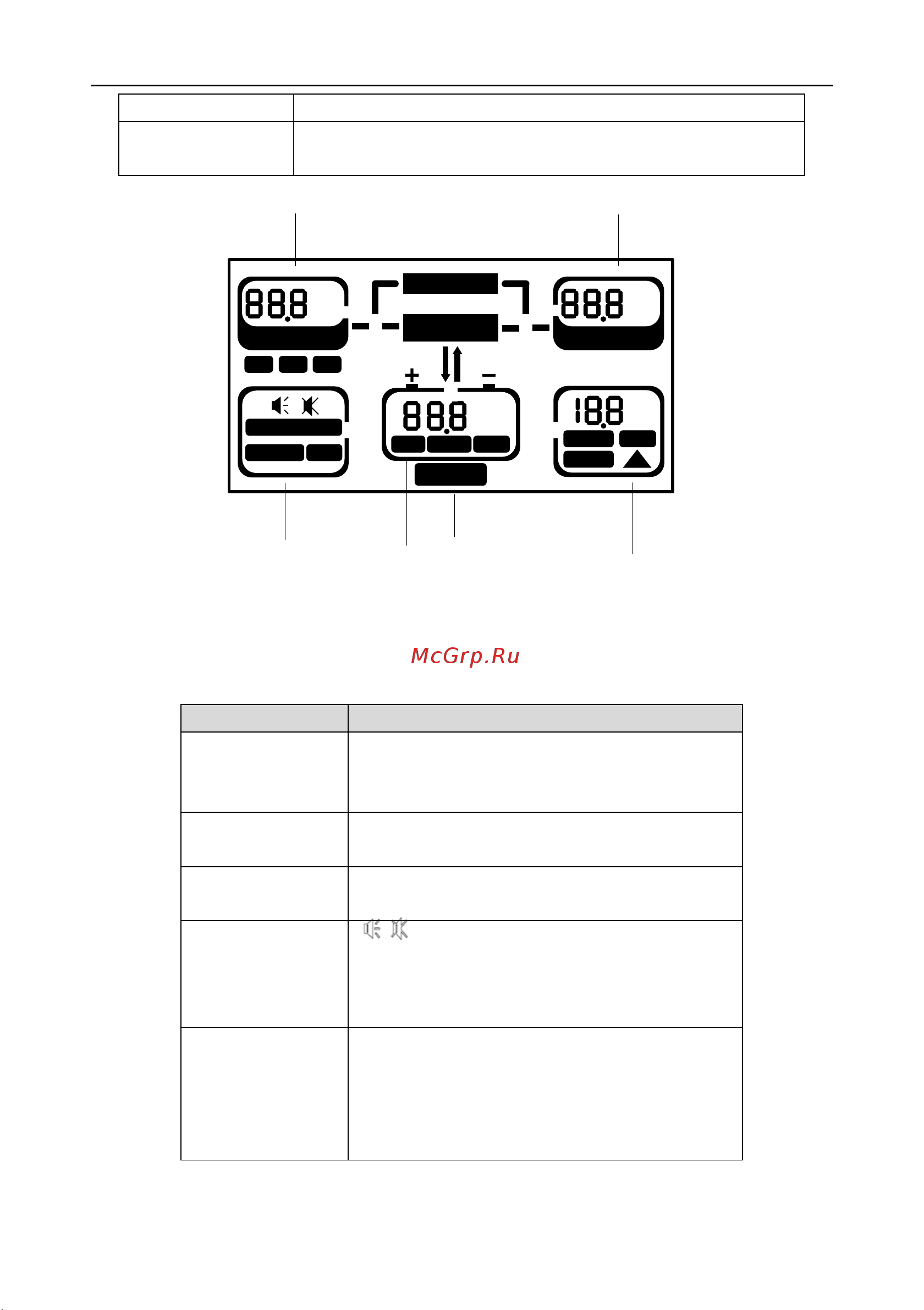

Fig 3- 2: LCD Menu
Description of LCD Menu
Menu
Information
Input information
Main input: voltage VAC, current A, frequency Hz
Bypass input(bypass “B” flicks):
Voltage VAC, current A, frequency Hz
Battery information
Battery: voltage VDC, discharge/charger current A,
remained capacity %, battery low alarm LOW!
Output information
Output information:
Voltage, current, frequency
Alarm
:mute on/off
OVER LOAD!: over load
SHORT: output short
ECO: working in ECO mode
Load/Version/Code
Load: active load KW, apparent load KVA, load
percent %
VER: firmware version
MODE: system mode, S-single mode, P- parallel
mode, E-ECO mode, A-self aging mode
