Installation
High Performance 10-20k UPS
19
Menu
Information
: warning code, refer to “7. Trouble Shooting”
to get detailed code list
Others
B: bypass input menu
SETTING: LCD is in setting mode
BYPASS: bypass conversion

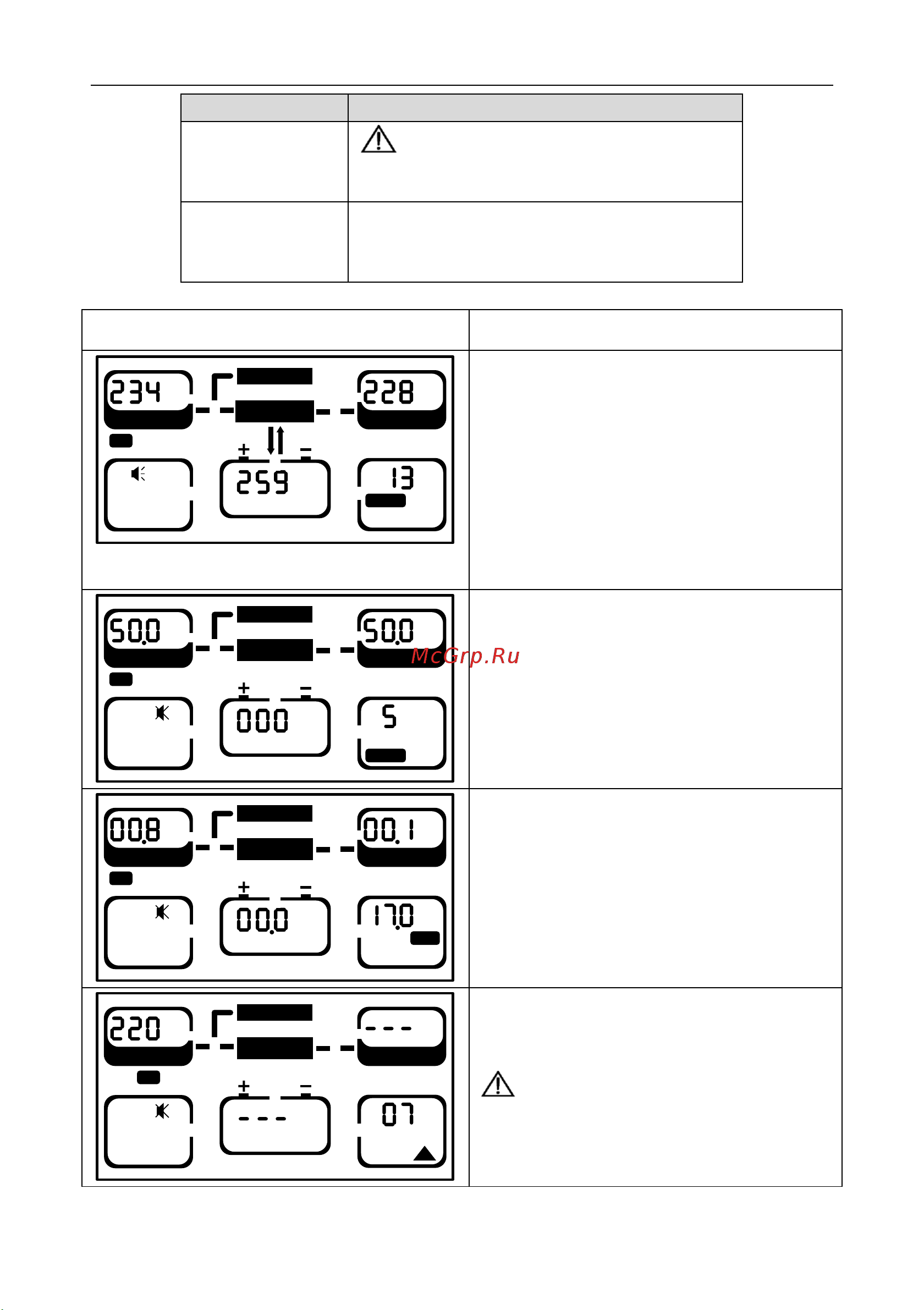

Press FUNC to check menu:
Page
description
INPUT
CONVERTER
BYPASS
VDC
A
VAC
OUTPUT
VAC
%
LOAD
Page 1:
Phase A INPUT voltage: 234VAC (three-phase
voltage are displayed in turn)
OUTPUT voltage: 220VAC
Battery voltage: 259VDC
LOAD : 13%.
Load percent(%), active power(KW), apparent
power(KVA) are displayed in turn
Press “FUNC” for 2.5s in this page to mute off
Hz
INPUT
CONVERTE
R
BYPASS
%
A
Hz
OUTPUT
MODE
Page 2:
Phase A INPUT frequency: 50Hz (three-phase
frequency are displayed in turn)
OUTPUT frequency: 50Hz
Remained battery capacity: 0% (no battery)
System MODE: S-single unit
A
INPUT
CONVERTE
R
BYPASS
A
A
A
OUTPUT
VER
Page 3:
Phase A INPUT current: 0.8A (three-phase
current are displayed in turn)
OUTPUT current: 0.1A
Battery current: 0.0A (downwards arrow: charge,
upwards arrow: discharge, no arrow: no battery)
Firmware VERsion: V0.17 (17.0)
INPUT
CONVERTE
R
BYPASS
B
OUTPUT
VAC
!
Page4:
“B”: flicks, bypass input menu now
Bypass INPUT voltage: 220VAC
alarm code: 07
Press “FUNC” for 2.5s to manually fault clear
