Parameters setting

If want to set rated parameters, press ON/OFF and FUNC buttons together for 2.5s to enter in setting

mode, “SETTING” on the bottom of LCD present and all LEDs flicks.

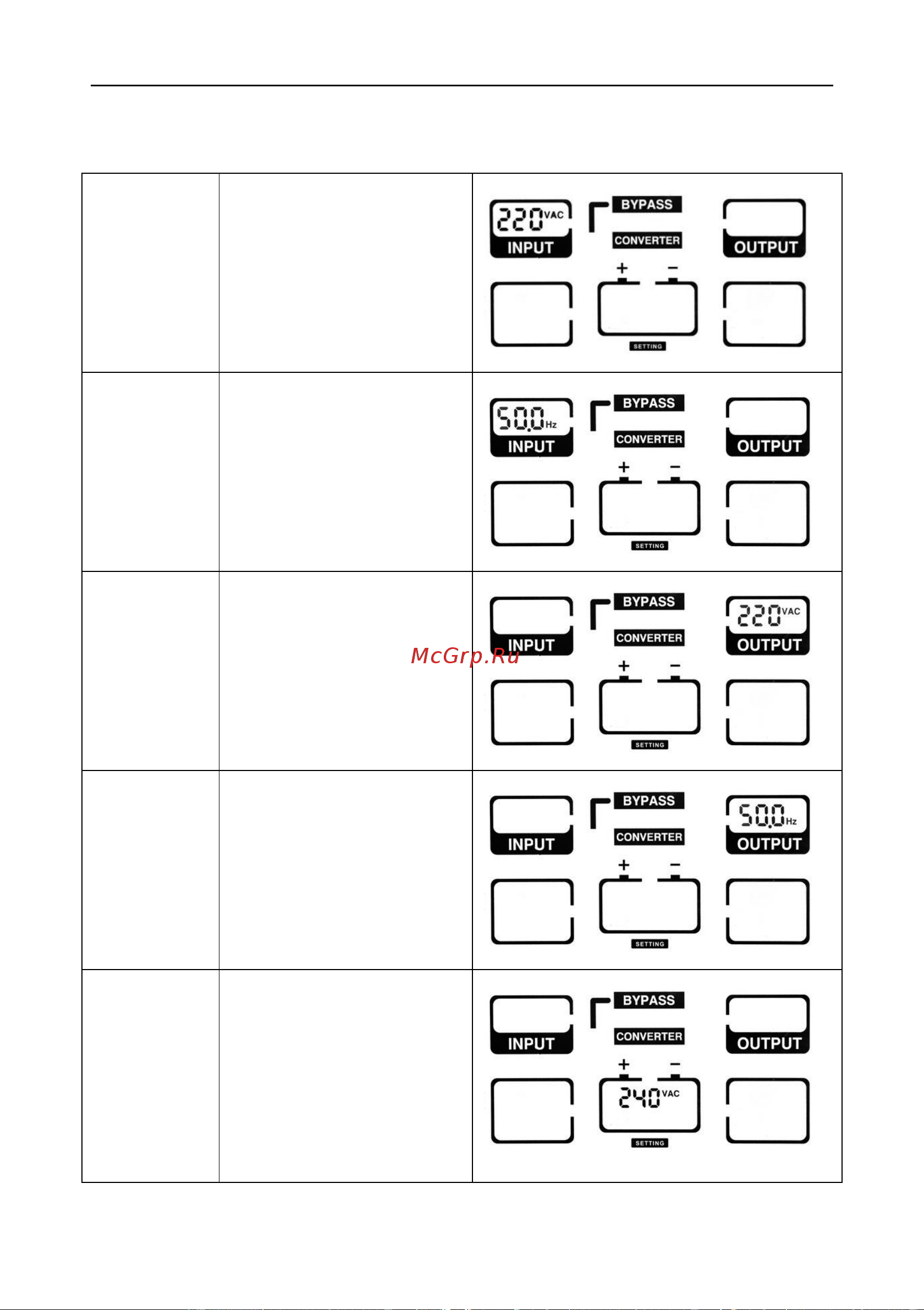

Input rated

voltage setting

Could select input voltage as

200VAC/ 208VAC/ 220VAC/

230VAC/ 240VAC, press FUNC

to select, press ON/OFF to

confirm selection and enter in

Input rated

frequency

setting

Could select input frequency as

50Hz/60Hz, press FUNC to

select, press ON/OFF to

confirm selection and enter in

Output rated

voltage setting

Could select output voltage as

200VAC/ 208VAC/ 220VAC/

230VAC/ 240VAC, press FUNC

to select, press ON/OFF to

confirm selection and enter in

Output rated

frequency

setting

Could select output frequency

as 50Hz/60Hz, press FUNC to

select, press ON/OFF to

confirm selection and enter in

Battery number

setting

For 200-240VAC voltage, could

select battery number as 16

blocks (192VDC), 18 blocks

(216VDC), 20 blocks

(240VDC), 22 blocks

(264VDC), 24 blocks

(288VDC), press FUNC to

select, press ON/OFF to enter in
