Values represented graphically:

- H: speaker bottom installation height

- Ha: considered listening area height (1.2 m)

- In EASY BEAM mode, the minimum D1 and maximum D2 distances of the listing area

from the speaker

- In EASY FOCUS mode, the maximum distance F to be covered

- In FREE BEAM mode, the tilt T (vertical angle downwards) and the beam B (vertical

dispersion).

2. Set the speaker installation height (considering the distance from its bottom to the

ﬂoor) by clicking COLUMN HEIGHT.

The range is from 1 to 6 metres (0.1 m steps) in the EASY BEAM mode, from 1.5 to 3

metres (0.5 m steps) in the EASY FOCUS mode, from 2 to 6 metres (0.1 m steps) in the

FREE BEAM mode.

3a. (EASY BEAM) Set the listening area D through AUDIO RANGE.

Both minimum D1 and maximum D2 distances (from speaker) can be selected among

several presets according to the speaker height H.

3b. (EASY FOCUS) Set the maximum distance to be covered through FOCUS.

3c. (FREE BEAM) Set the TILT and then the BEAM.

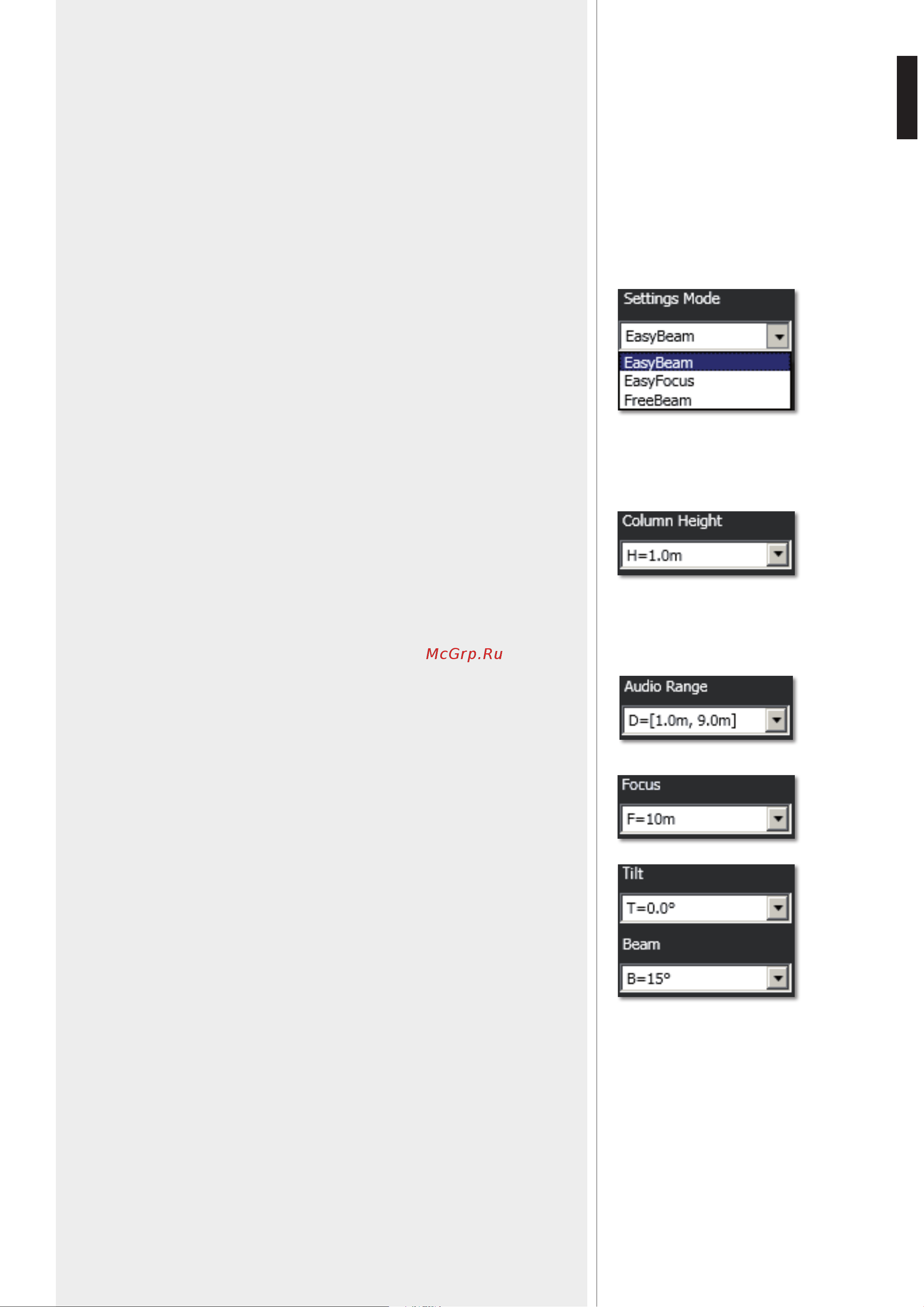

1. First, select the SETTINGS MODE:

- EASY BEAM allows to specify the listening area to be covered by selecting a preset

audio range.

- EASY FOCUS, simple, easy and suitable for all systems, advisable for users and

installers that are not so expert. Only two values are necessary: the speaker installation

height and the maximum distance to be covered.

- FREE BEAM, for expert users / installers, it allows the (virtual) setting of both speaker

tilt and beam.
