RCF VSA 1250 W MKII [6/18] Bottom panel signals and commands

Main power switch.

I : ON O : OFF

afTer Turning The speaker on, The sysTem Takes abouT 15 seconds (‘sTarT-up’) To geT fully operaTing.

Socket for the power cord.

Before powering up, make sure the mains voltage corresponds to the voltage

indicated on the unit label.

24 Vdc INPUT

Secondary power supply input (24 V dc).

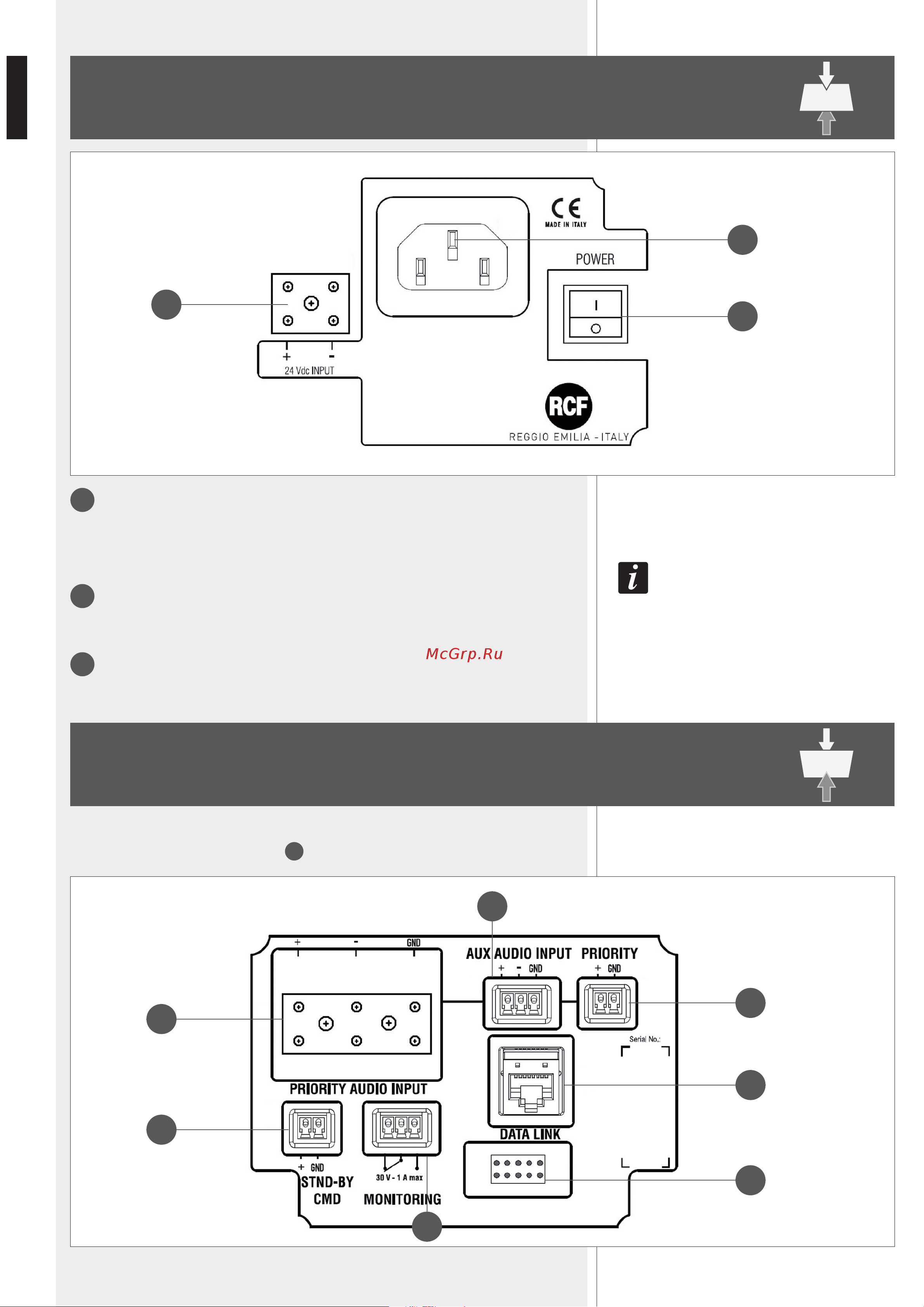

TOP PANEL (power supply)

BOTTOM PANEL (signals and commands)

Remove the bottom panel cover with the 4 LEDs to access to connections (by disconnec-

ting its cable from the respective port
