RCF VSA 1250 W MKII [5/18] Installation

ENGLISH

Each speaker has 2 audio inputs, of which one has priority.

A II speakers can be installed very close to the wall (to be unobtrusive) thanks to their

compact sizes, slim shapes and their (included) wall mounting accessories.

SWM-BR VSA II optional accessory: each kit includes a pair of swivel brackets for a single

VSA II speaker wall mounting, allowing a horizontal angle pointing up to 60°.

Connections are separated: AC and DC power supply at one end, audio signals and interfaces

on the other. The electrical connections are clearly labelled and made through screw terminals

and other suitable and easy-to-wire connectors.

VSA II series (standard version) is intended for indoor sound systems

only.

INSTALLATION

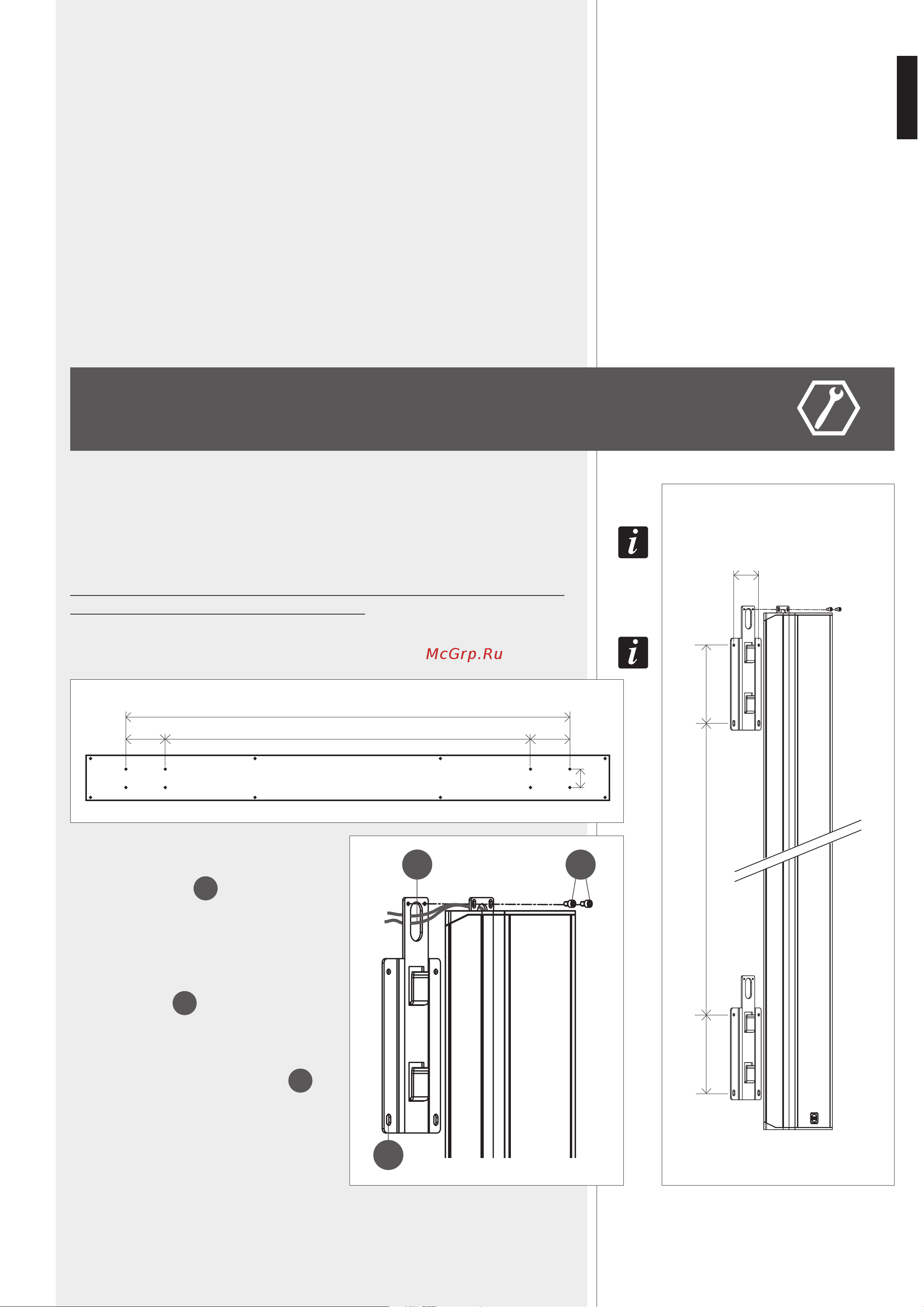

The speaker shall be wall-mounted through the two included brackets (picture 1).

To swivel iT

wiTh a horizonTal angle up To 60°, iT is necessary To purchase The opTional

SWM-BR VSA II accessory kiT.

Minimum installation height: the speaker bottom shall be at least 1 m from

the ﬂoor (suggested height: from 1.5 to 3 m).

The wood package lid can also be used as drilling TemplaTe (picTure 2)!

Each bracket shall be ﬁxed to the wall by 4

dowels for 5 mm screws (passing through the 4

holes, see picture 3 –

If put to recessed pipelines, the power cables

(230-115 V ac and, separately, 24 V dc) can

pass through the bracket and the loudspeaker

holes (picture 3 –

Put the speaker on the bracket hooks and ﬁx

it with the security screws (picture 3 –

which prevent the speaker might accidentally

slip off and fall.

PICTURE 3 PICTURE 1

PICTURE 2

1910 (VSA 2050 II), 1202 (VSA 1250 II), 848 (VSA 850 II

)

170 170

170170 1570 (VSA 2050), 862 (VSA 1250), 508 (VSA 850)

1570 (VSA 2050 II), 862 (VSA 1250 II), 508 (VSA 850 II)

[mm]
