File Commands:

- SAVE: it saves to PC the current equalization as .rde ﬁle.

- LOAD: it loads from PC an equalization previously saved as .rde ﬁle.

Eq. options:

- FLATTEN: it disables all ﬁlters (ﬂat frequency response).

- BYPASS EQ.: it disables the equalization, but without changing ﬁlter settings.

- PHASE PLOT: if selected, the phase plot is shown (green line).

Devices commands:

- STORE: it sends and stores the equalization to the VSA speaker.

- SEND: it sends (without storing) the equalization to the VSA speaker.

For each ﬁlter, frequency and gain can be adjusted either graphically (through the mouse) by

dragging the little coloured square or in an analytical way (by inserting values in cells or rotating

controls).

The overall equalization is shown as a red line, the intervention of the selected ﬁlter as a green

line, the intervention of a ﬁlter that is not selected as a white line.

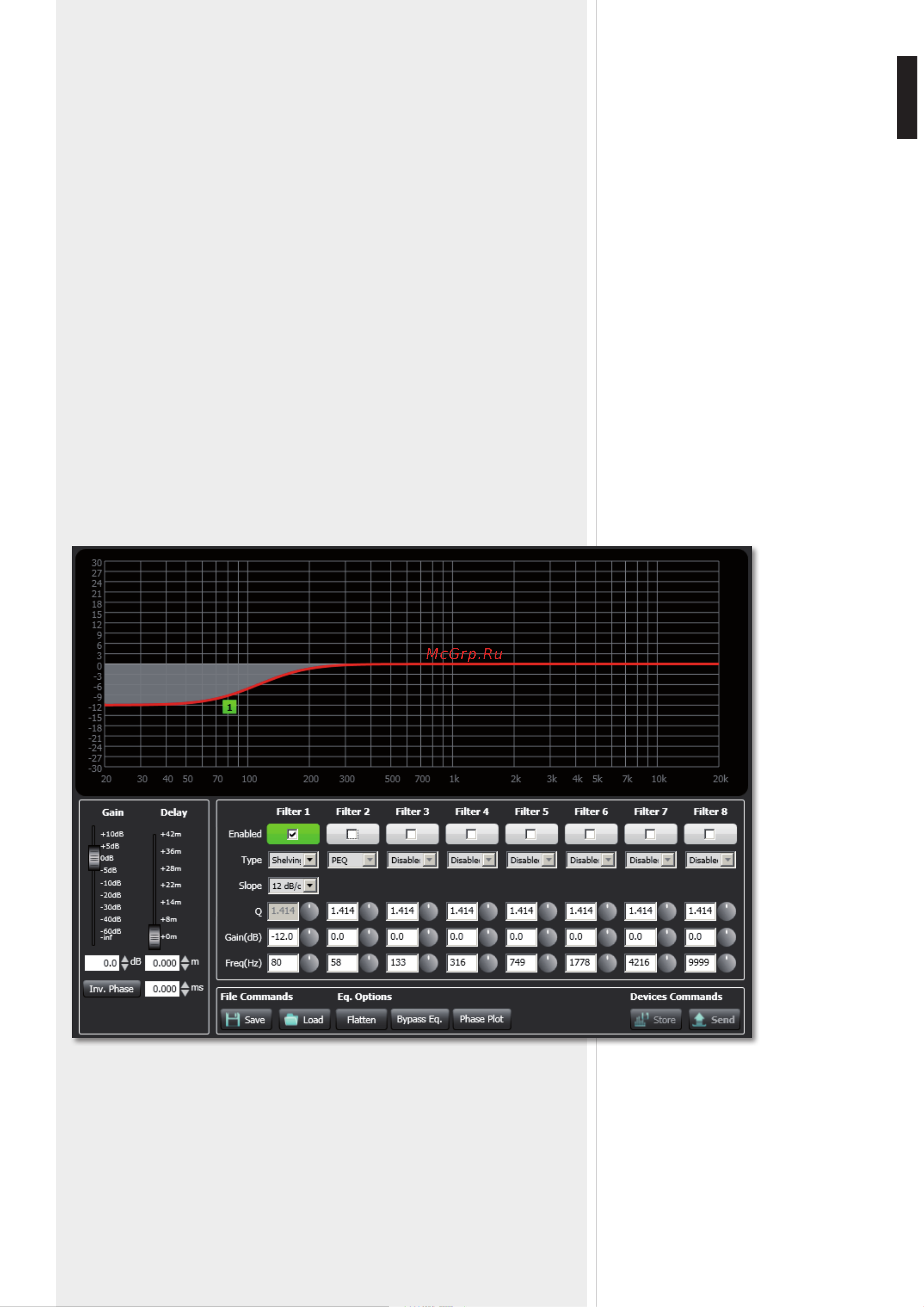

For example, to apply a 12 dB attenuation for frequencies below 80 Hz: enable the ﬁlter 1 by

clicking its ‘Enabled’ checkbox, select the SHELVING LOW ﬁlter type, set the gain to –12 dB and

frequency to 80 Hz .
