SOFTWARE INSTALLATION
The software was developed with Matlab 2015b and requires Matlab programming libraries. At the very first installation
user should refer to the installation package, available from the RCF website, containing the Matlab Runtime (ver. 9) or
the installation package that will download the Runtime from the web. Once the libraries are correctly installed, for all
the following version of the software the user can directly download the application without the Runtime. Two versions,
32-bit and 64-bit, are available for the download.
IMPORTANT: Matlab no longer supports Windows XP and hence RCF EASY Shape Designer (32 bit) doesn’t work with
this OS version.

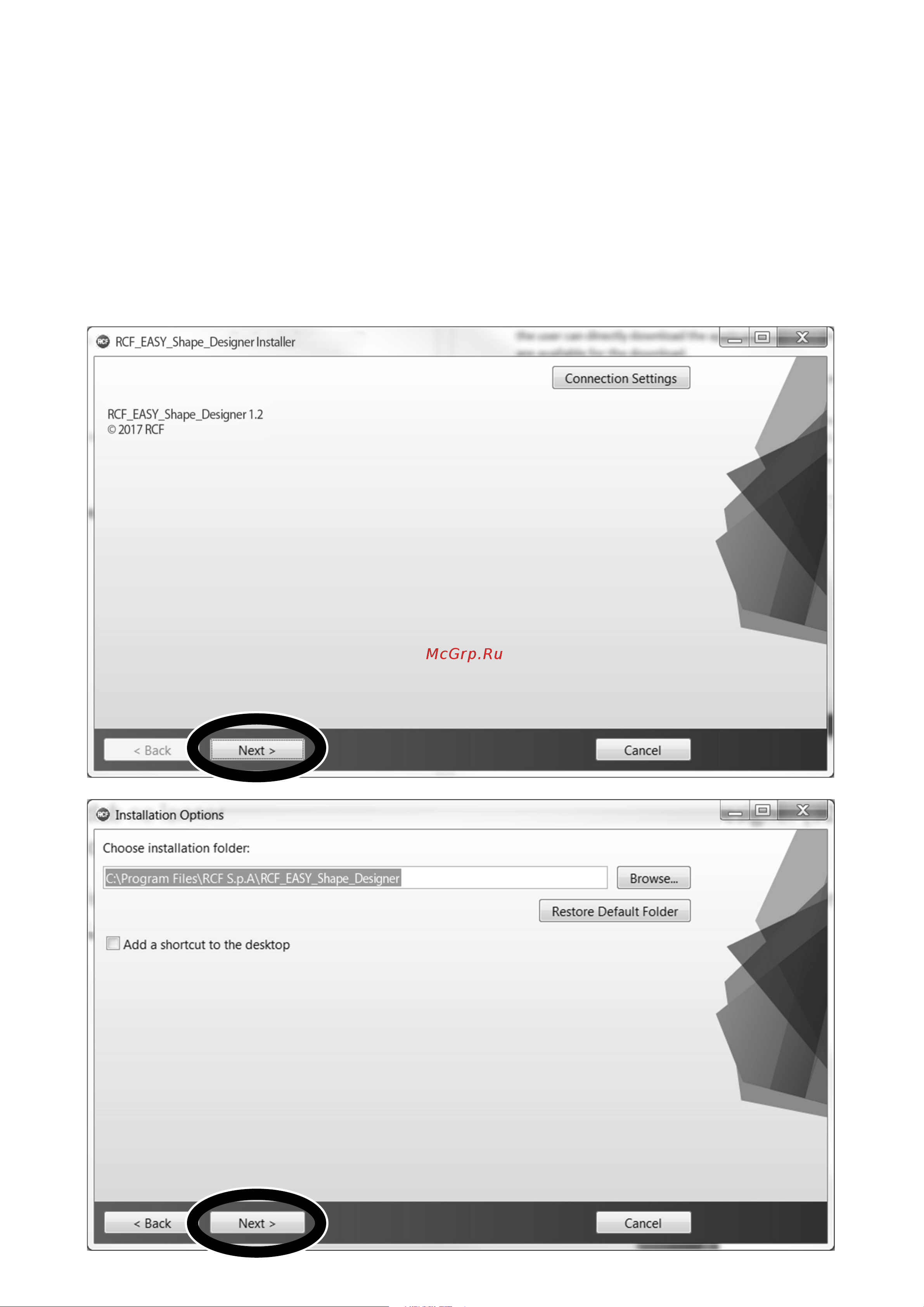

You may wait a few seconds after the double click on the installer because the software checks if Matlab Libraries are
available. After this step the installation begins. Double-click the last installer (check for the last release in the download
section of our website) and follow the next steps.
