RIGGING PROCEDURE

Installation and setup should only be carried out by qualiﬁed and authorized personnel observing the valid national Rules for

the Prevention of Accidents (RPA).

It is the responsibility of the person installing the assembly to ensure that the suspension/ﬁxing points are suitable for the

intended use.

Always carry out a visual and functional inspection of the items before use. In the event of any doubt as to the proper

functioning and safety of the items, these must be withdrawn from use immediately.

WARNING

The steel wires between the locking pins of the cabinets and rigging components are not intended to carry any load. The

cabinet’s weight must only be carried by the Front and Splay/Rear links in conjunction with the front and rear rigging strands of

the loudspeaker cabinets and the Flying frame. Ensure all Locking pins are fully inserted and securely locked before lifting any

load.

In the ﬁrst instance use RCF Easy Shape Designer software to calculate the proper set up of the system and to check the safety

factor parameter.

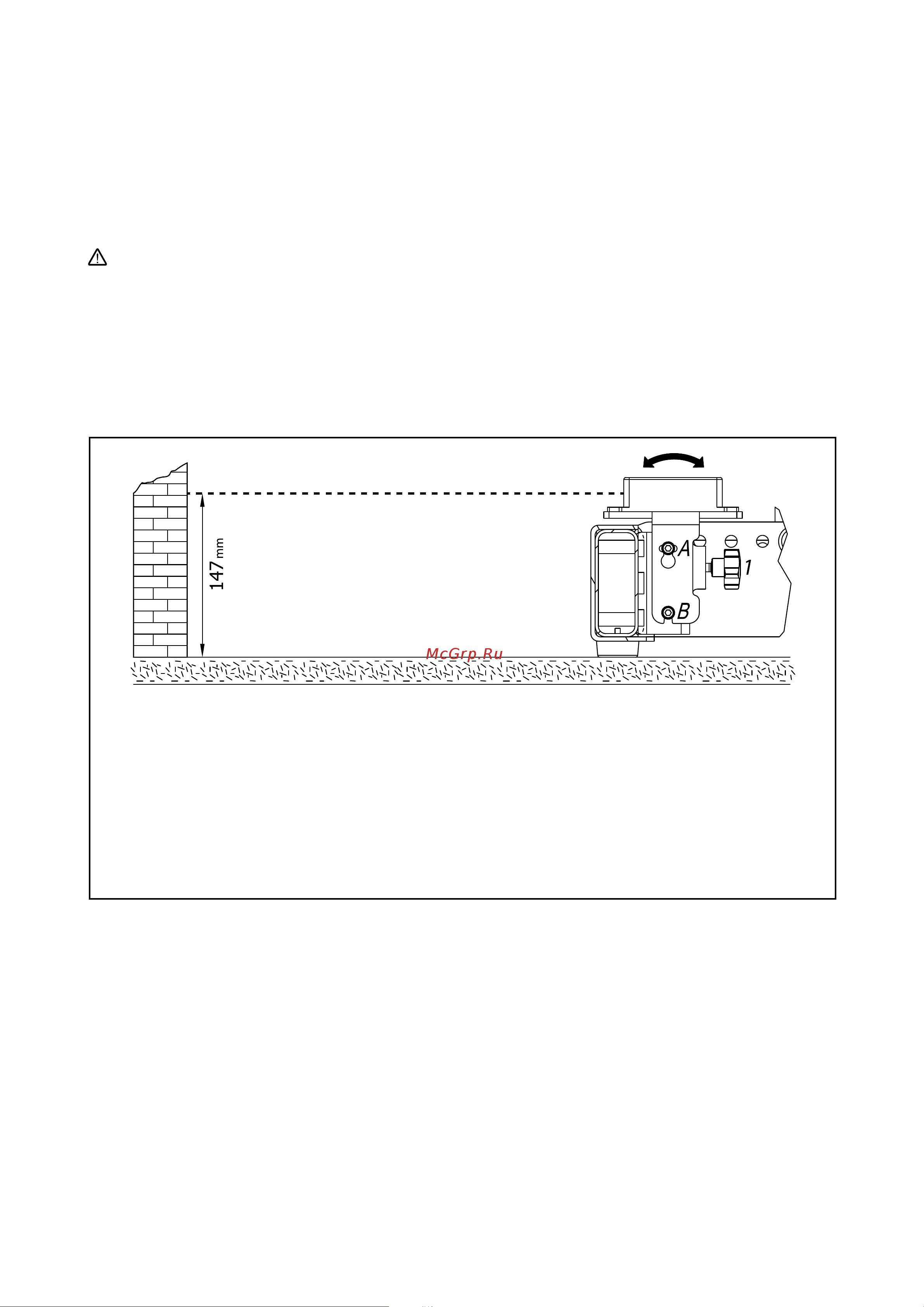

INCLINOMETER BRACKET MOUNTING

1. UNSCREW BOTH M6 SCREWS “A” AND “B”

2. SET THE PROPER INCLINATION UNSCREWING OR SCREWING THE KNOB:

POINTING THE LASER TOWARDS THE WALL,

THE DISTANCE BEETWEEN THE GROUND AND THE LASER BEAM MUST BE 147 mm

3. TIGHTEN BOTH M6 SCREWS “A” AND “B”

LASER

Note that using Rd-Net to set up the system, there will be the possibility to monitor the angles of the ﬂybar and of each single

speaker and in case using 1 pick-up point, appropriately calculated by RCF Easy Shape Designer, the cluster will take the proper

aim and angles without the need of the inclinometer.
