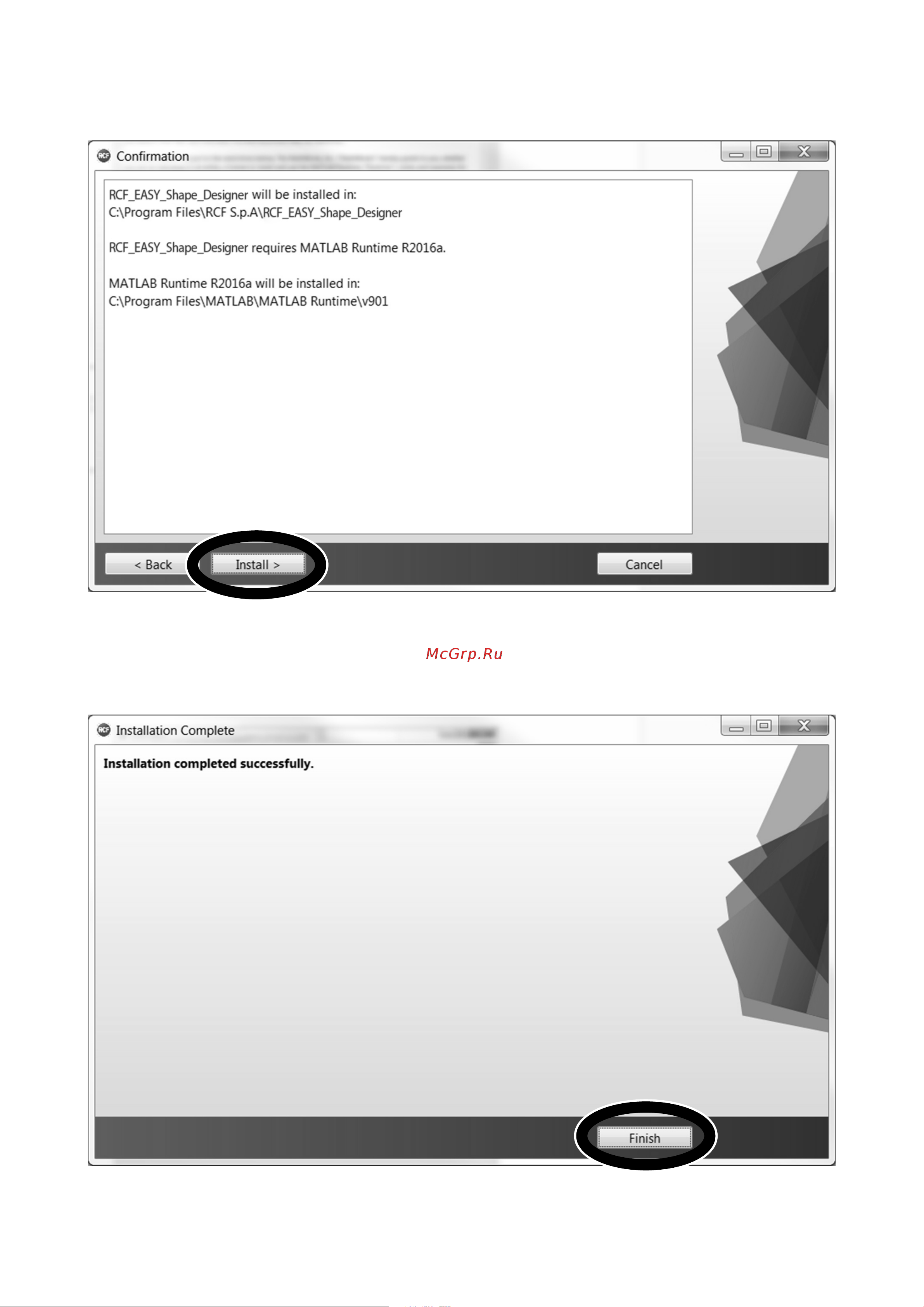

After the choice of folders for HDL30 Shape Designer software (Figure 2) and Matlab Libraries Runtime the installer

takes a couple of minutes for the installation procedure.
