802VLZ4
26
802VLZ4

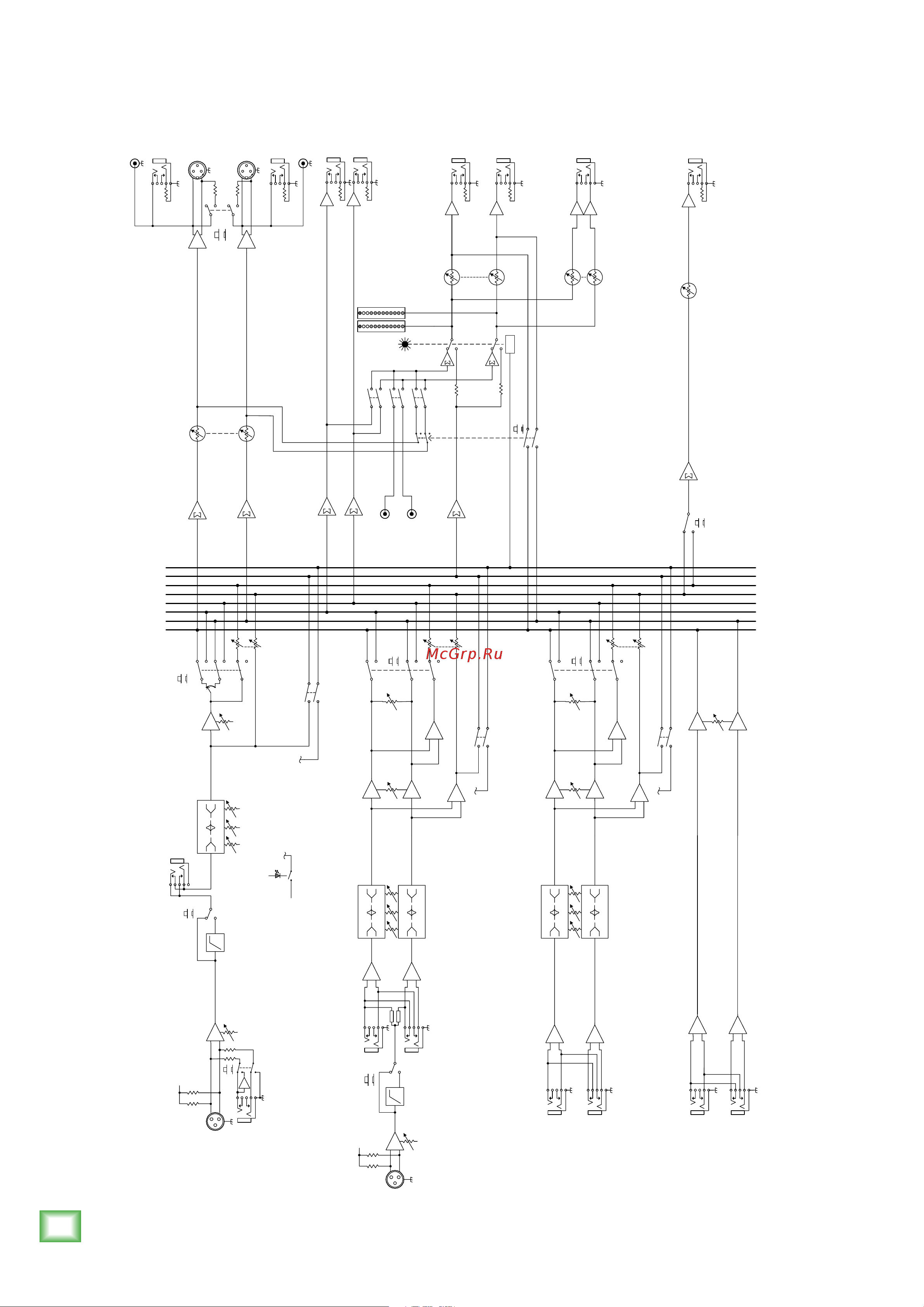

Block Diagram
L
R
aux 1 (post)
solo(pfl)
logic
Main
solo logic
L
R
solo (pfl)
logic
Main
Control
Room
level
Main level
L
R
Insert (Ch1-2 only)
HPF
solo
Level
Pan
solo
Level
Aux sends
Pan
Level
Tape
Left
Right
Left/3
Right/4
Aux 1 out
Aux 1 level
Phones
Control Room out
Left
Right
L sum
R sum
Alt L/3
sum
Alt R/4 sum
Aux 1 sum
solo sum
Stereo Return
L/3
R/4
Alt
aux 1 (pre)
aux 1 (post)
L/3
R/4
Alt
aux 1 (pre)
Aux 1
Tape
Meter
CD/Tape in
L
R
RUDE
SOLO
LED
Line
Line
Bal
Bal
Alt3/4
CD/Tape
Main
C/R Source
3-BandEQ
Alt 3/4
Main L/R
Alt 3/4
Main L/R
post
pre
C/R to Main
off
Low Cut
bypass
NOTE: Switches are shown in the default (out) position.
Mic level
+4dBu
C/R L
C/R
R
Alt out
Main
out
48V
Mono Channels
Mic
Line
Gain
+
-
Mic: 0 ~ +60dB
Line: -15 ~ +45dB
Hi-Z
L
R
3-BandEQ
LO
80 2.5K 12K
HIMID
LO
80 2.5K 12K
HIMID
LO
80 2.5K 12K
HIMID
+
-
Hybrid
channel 3/4
Ch 1/2
Global phantom
power
phantom
phantom
solo
LevelPan
Alt 3/4
Main L/R
Stereo channels
5/6 and 7/8
L
R
3-BandEQ
LO
80 2.5K 12K
HIMID
LO
80 2.5K 12K
HIMID
Phones
level
HPF
Low Cut
bypass
Mic: 0 ~ +60dB
phantom
Aux sends
Aux sends
