Owner’s Manual

Video Editing/Production Bay

Desktop computer

Video out

Video Monitor

DVD Player 1

DVD Player 2

Stereo sound effects

hard disk player

MR8mk3

Studio Monitors

Broadcast

Microphones

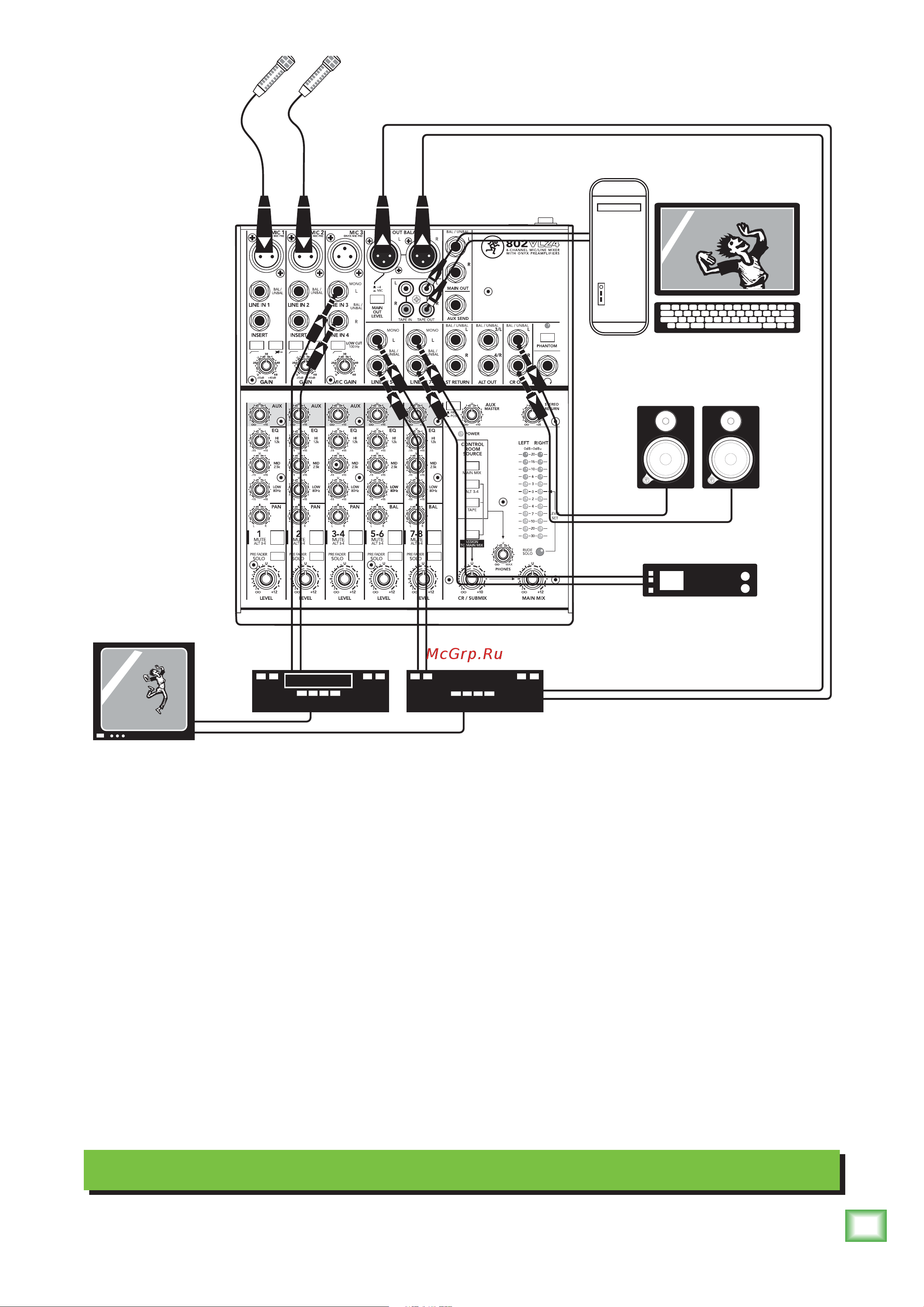

This diagram shows two voice-over microphones connected to the mic inputs of channels 1 and 2.

The stereo line-level outputs from two digital video players connect to the line inputs of channels 3/4,

and 5/6.

A stereo sound effects hard disk player is connected to the line inputs of channels 7 and 8.

The tape outputs connect to the line-level audio inputs of a desktop computer running your favorite

DAW. You will probably need a dual RCA to 1/8" adapter, or cable to connect to your computer's audio

input.

The control room outputs feed a pair of MR8mk3 powered studio monitors. The main mix outputs are

feeding the balanced audio inputs of a video recorder.
