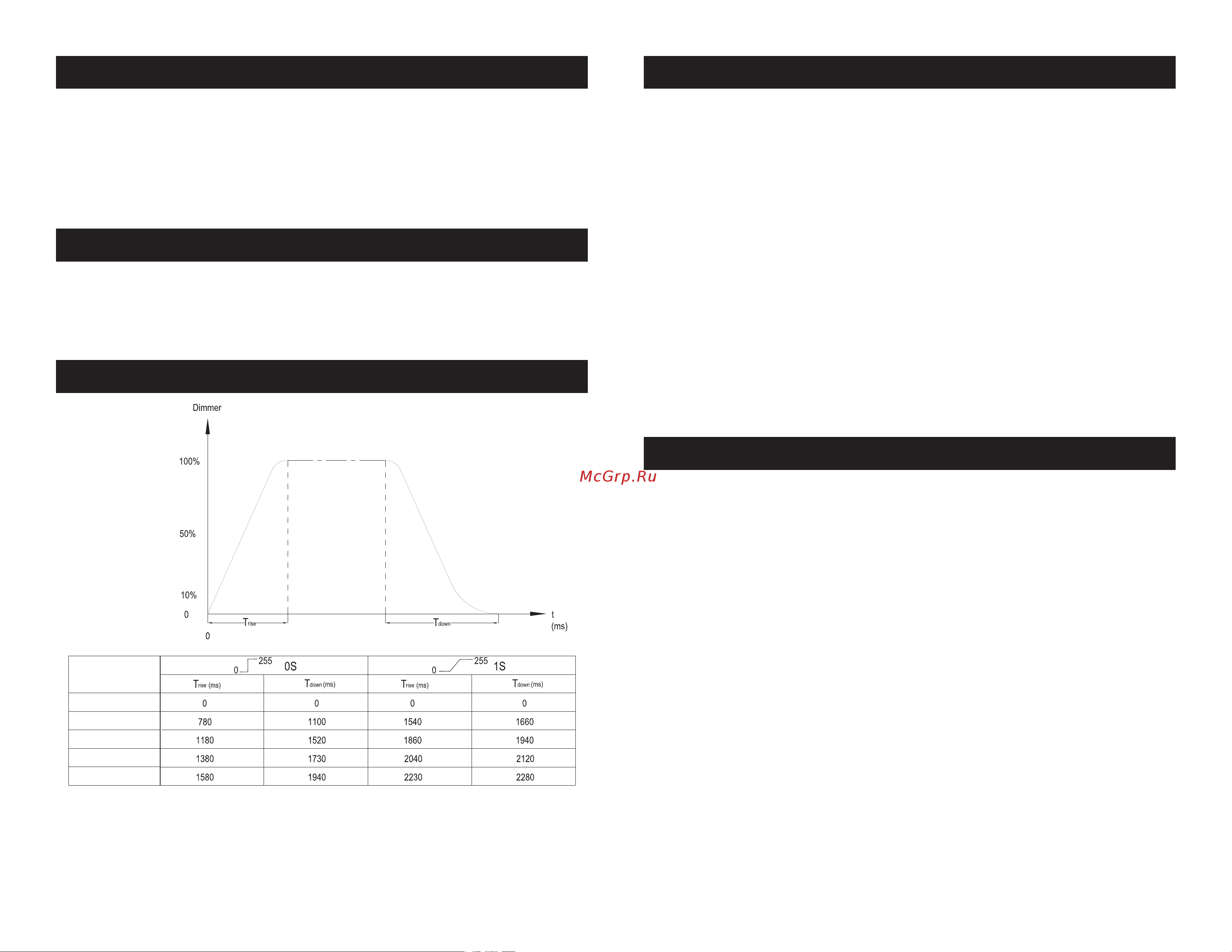

ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 47
ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 46
(Fade Time) (Fade Time)
Ramp Effect
Standard
Stage
TV
Architectural
Theatre
Vizi Hex Wash7 Dimmer Curve Chart
Fuse Replacement: First unplug the power. The fuse holder is located
above the PowerCON connection. Using a flat head screw driver
unscrew the fuse holder. Remove the bad fuse and replace with a new
one.
Vizi Hex Wash7 Fuse Replacement
With this feature you can connect the xtures to one another
using the PowerCON input and output sockets. The quantity that
can be connected is 5 xtures maximum @ 110V and a maximum
11 xture’s @ 240V. After maximum limit has been reached you
will need to use a new power outlet. They must be the same x-
tures. DO NOT mix xtures.
Vizi Hex Wash7 Power Cord Daisy Chain Vizi Hex Wash7 Cleaning
Vizi Hex Wash7 Trouble Shooting
Trouble Shooting: Listed below are a few common problems that
you may encounter, with solutions.
No light output from the unit;
1. Be sure the external fuse has not blown. The fuse is located on
the back panel of the unit next to the PowerCON input connec-
tion.
2. Be sure the fuse holder is completely and properly seated.
Unit does not respond to sound;
1. Low frequencies (bass) should cause the unit to react to sound.
Tapping on the microphone, quiet or high pitched sounds may
not activate the unit.
Fixture Cleaning: Due to fog residue, smoke, and dust cleaning
the internal and external optical lenses and mirror should be carried
out periodically to optimize light output. Cleaning frequency depends
on the environment in which the fixture operates (I.e. smoke, fog
residue, dust, dew). In heavy club use we recommend cleaning on a
monthly basis. Periodic cleaning will ensure longevity, and crisp out-
put.
1. Use normal glass cleaner and a soft cloth to wipe down the out-
side casing.
2. Use a brush to wipe down the cooling vents and fan grill.
3. Clean the external optics and mirror with glass cleaner and a soft
cloth every 20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every
30-60 days.
5. Always be sure to dry all parts completely before plugging the unit
back in.
