ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 7
The Vizi Hex Wash7 is fully operational in three dierent mounting
positions; hanging upside-down from a ceiling, mounted sideways
on trussing, or set on a at level surface. Be sure this xture is kept
at least 0.5m away from any ammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure
to prevent accidental damage and/or injury in the event the clamp
fails (see next page). Never use the carrying handles for secondary
attachment.
Vizi Hex Wash7 Truss Mounting
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below
the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculat-
ing working load limits, installation material being used, and perodic
safety inspection of all installation material and unit. If you lack these
qualications, do not attempt the installation yourself.
These installaiton should be checked by a skilled person once a year.
ADJ Products, LLC - www.adj.com - Vizi Hex Wash7 Instruction Manual Page 6

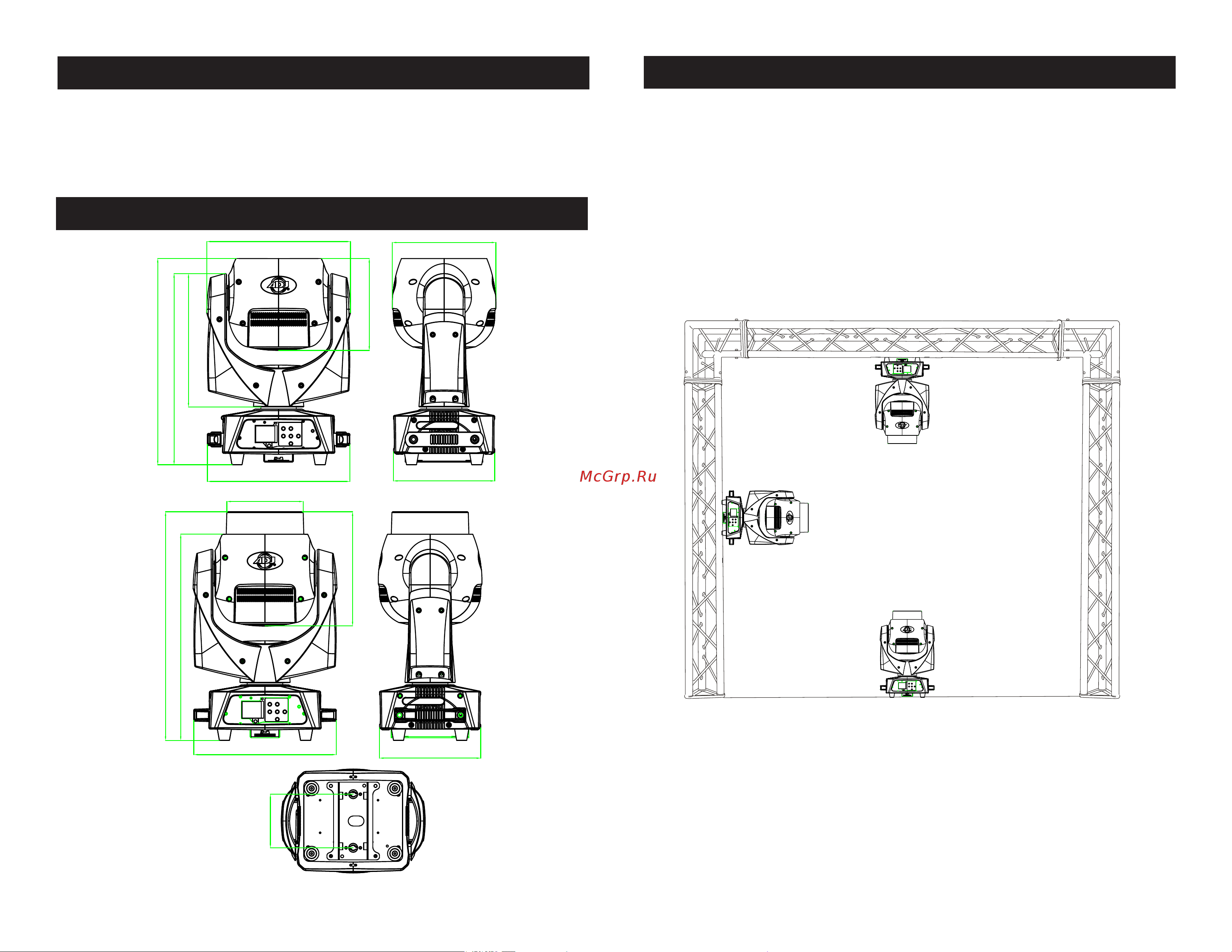

Vizi Hex Wash7 CAD Drawing
To optimize the performance of this product, please read these operating
instructions carefully to familiarize yourself with the basic operations of
this unit. These instructions contain important safety information regard-
ing the use and maintenance of this unit. Please keep this manual with
the unit, for future reference.
Vizi Hex Wash7 General Instructions
107mm [4.21in]
284.4mm [11.20in]
381.48mm [15.02in]
266.28mm [10.48in]
411.7mm [16.21in]
286.88mm [11.29in]
206.53mm [8.13in]
202mm [7.95in]
183.5mm [7.22in]
284.4mm [11.20in]
411.7mm [16.21in]
456.2mm [17.96in]
Ø152.41mm [6.00in]
227.47mm [8.96in]
202mm [7.95in]
