Franke A800 [21/64] Adjustable feet
![Franke A800 [21/64] Adjustable feet](/views2/1996983/page21/bg15.png)
340270
613
540 190
730
600
145
80 - 185
≥ 200
≥ 50
ii
Installation and technical data
Page 19
Total height
40 mm (standard) 730mm+40mm=770mm
70 mm (optional) 730mm + 70mm=800mm
(optional)
100mm (optional) 730mm + 100mm=830mm (optional)
Adjustable feet
The dimensions are specifi ed in mm.
Prepare a stable, ergonomic surface (min. load capacity: 150 kg or
330.7 lb). The operator panel should be at eye level.
Minimum clearances:
•To the rear wall: 50mm
•Upwards: 200mm (fi lling and removal of coff ee bean hopper)
Adjustable feet (optional) can be used to compensate for unevenness
or height diff erences.

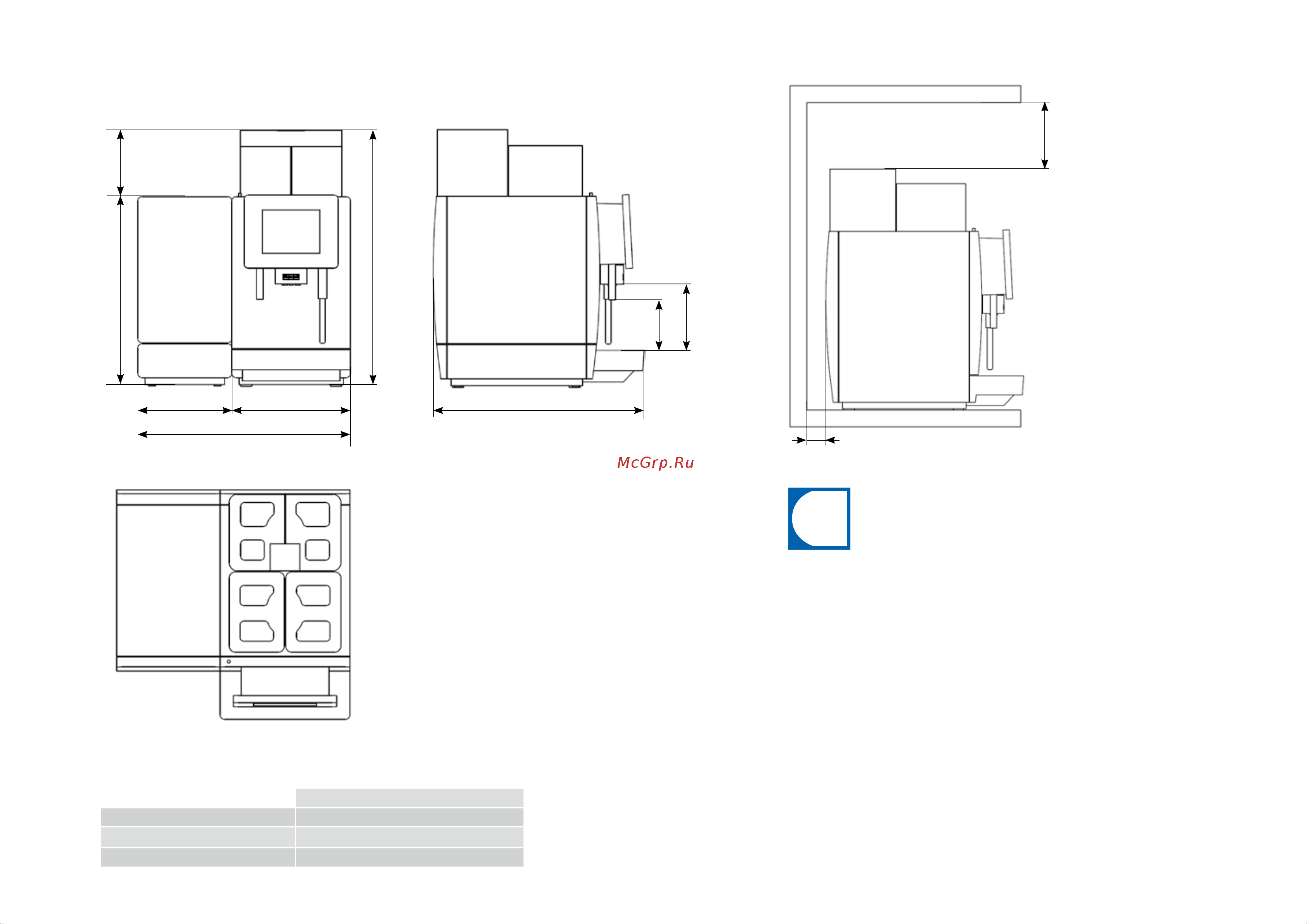

Installation dimensions of the A800 Dimensions of the A800 FoamMaster
