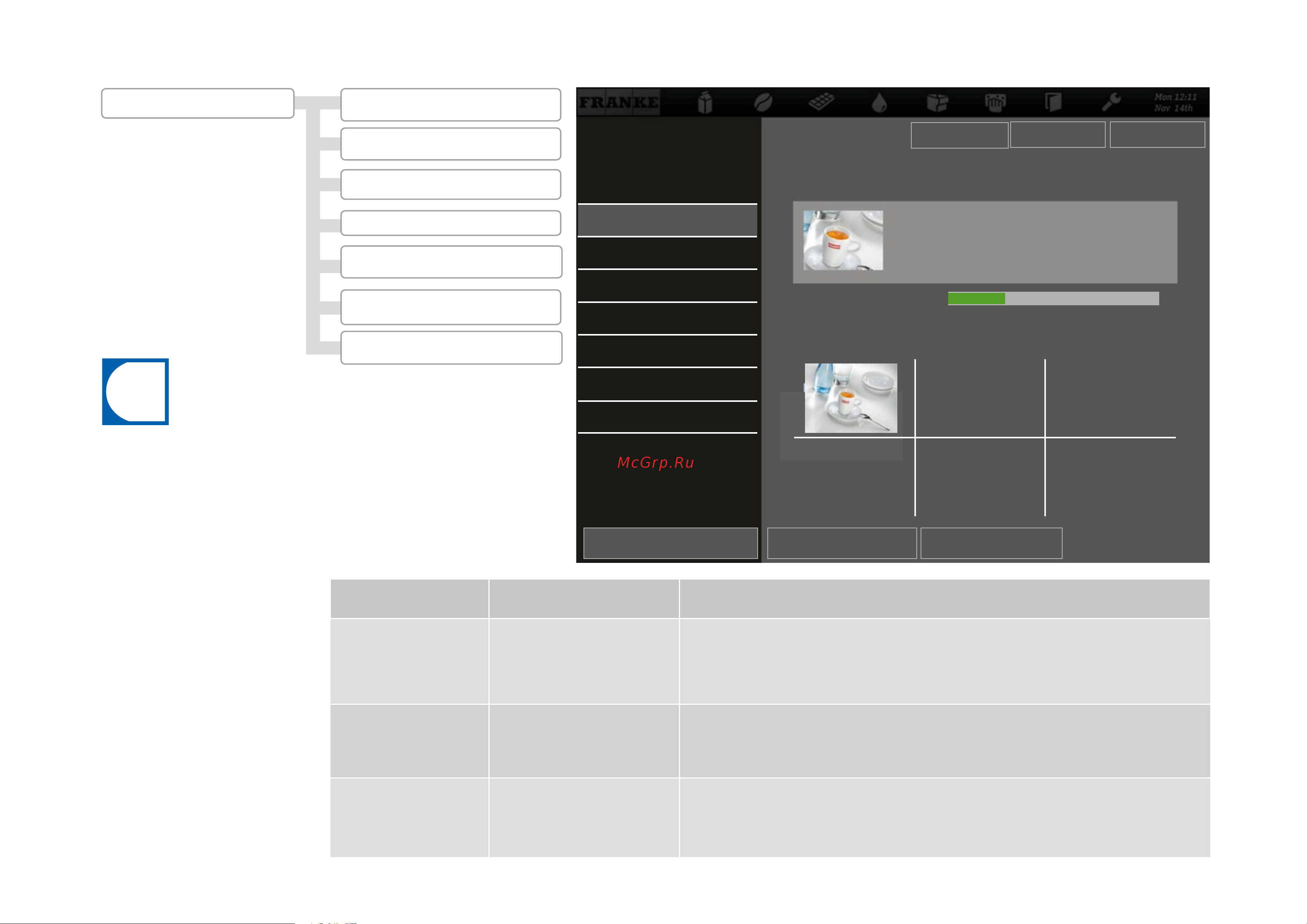

Individualization and data transfer
Page 51
USB: Available advertising images
Advertising imagesProduct images
Screen saver
Load product images with Drag&Drop 0 to 100
Load images
Manage my images
26 % 500Free memory (MB):
1.7Create directory structure
1.6 Eject USB stick
1.3 Advertising images
1.5 Screen saver
1.2 Back up images
1.4 Product images
1.1 Load images
Loading or clearing my images
•The upload process is the same for all images.
•The images on the USB stick must be present in the required
folder structure, have the correct data format and the correct
size, see p. 50.
1 Manage images
1.2 Back up images
1.1 Load images
1.3 Advertising images
1.6 Eject USB stick
1.4 Product images
1.7Create directory structure
1.5 Screen saver
Desired action Menu item Information / Instruction
Loading images to the
machine
1.1 Load images
•Insert a USB stick with the required directory structure.
•Select the image type.
•Select the images that you wish to load onto the machine using Drag&Drop and
press Save.
Saving images from the
machine
1.2 Back up images
•Insert a USB stick.
•Select the image type.
•Save individual images or all images to the USB stick.
Clearing images
1.3 Advertising images
1.4 Product images
1.5 Screen saver
•Open the desired menu.
•Select the images that are no longer needed and delete them by tapping the Clear
button.
Back Save
Load all
